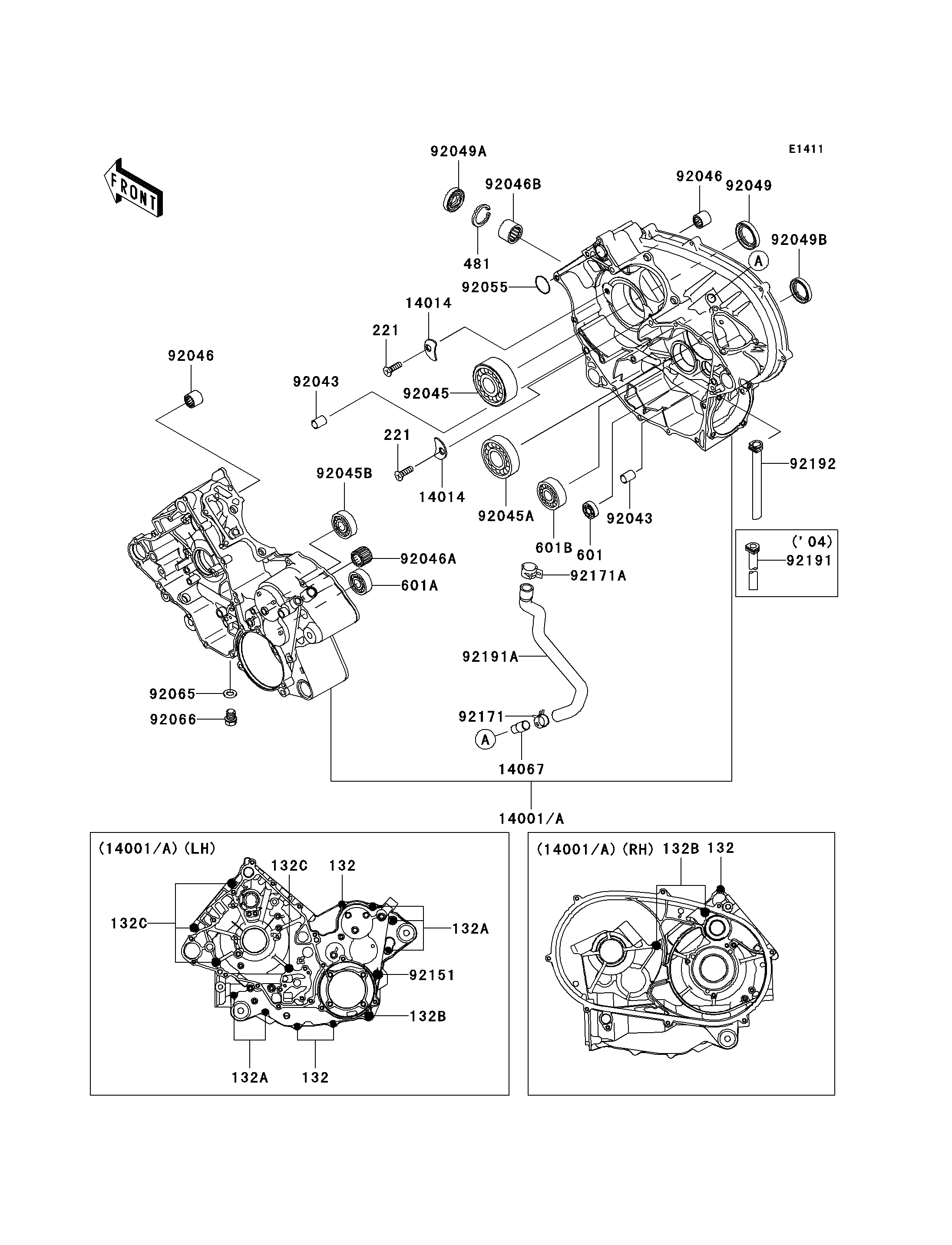

2004 Prairie 700 4x4 Hardwoods Green HD - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
132
132
132
132A
132A
132B
132B
132C
132C
221
221
481
601
601A
601B
14001A
14014
14014
14067
92043
92043
92045
92045A
92045B
92046
92046
92046A
92046B
92049
92049A
92049B
92055
92065
92066
92151
92171
92171A
92191
92191A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X40 132 132Y0640 4
BOLT-FLANGED-SMALL,6X65 132A 132Y0665 5
BOLT-FLANGED-SMALL,8X110 132B 132Y08110 3
BOLT-FLANGED-SMALL,8X75 132C 132Y0875 4
SCREW-CSK-CROS,6X16 221 221B0616 2
CIRCLIP-TYPE-C,37MM 481 481J3700 1
BEARING-BALL 601 601A6000 1
BEARING-BALL,#6004 601A 601A6004 1
BEARING-BALL,#6304 601B 601A6304 1
SET-CRANKCASE 14001A 14001-1322 1
PLATE-POSITION 14014 14014-0006 2
FITTING,BREATHER 14067 14067-006 1
PIN 92043 92043-1506 2
BEARING-BALL,5208X2-A-ECG45 92045 92045-0012 1
BEARING-BALL,6306SH2 92045A 92045-1190 1
BEARING-BALL,6303LUA 92045B 92045-1389 1
BEARING-NEEDLE,TA202715ZE 92046 92046-1118 2
BEARING-NEEDLE 92046A 92046-1143 1
BEARING-NEEDLE,FJ-2820WA 92046B 92046-1277 1
SEAL-OIL,TC 35X50X8 92049 92049-1452 1
SEAL-OIL,TCY 28X42X8 92049A 92049-1570 1
SEAL-OIL,HTC 30X45X8 92049B 92049-1575 1
RING-O,25.7X2.4 92055 92055-1136 1
GASKET,12X22X2 92065 92065-097 1
PLUG,OIL DRAIN,12X15 92066 92066-1174 1
BOLT,8X110 92151 92151-1689 1
CLAMP 92171 92171-0329 1
CLAMP 92171A 92171-0514 1
TUBE,OIL RETURN 92191 92191-1449 1
TUBE,BREATHER 92191A 92191-1740 1
