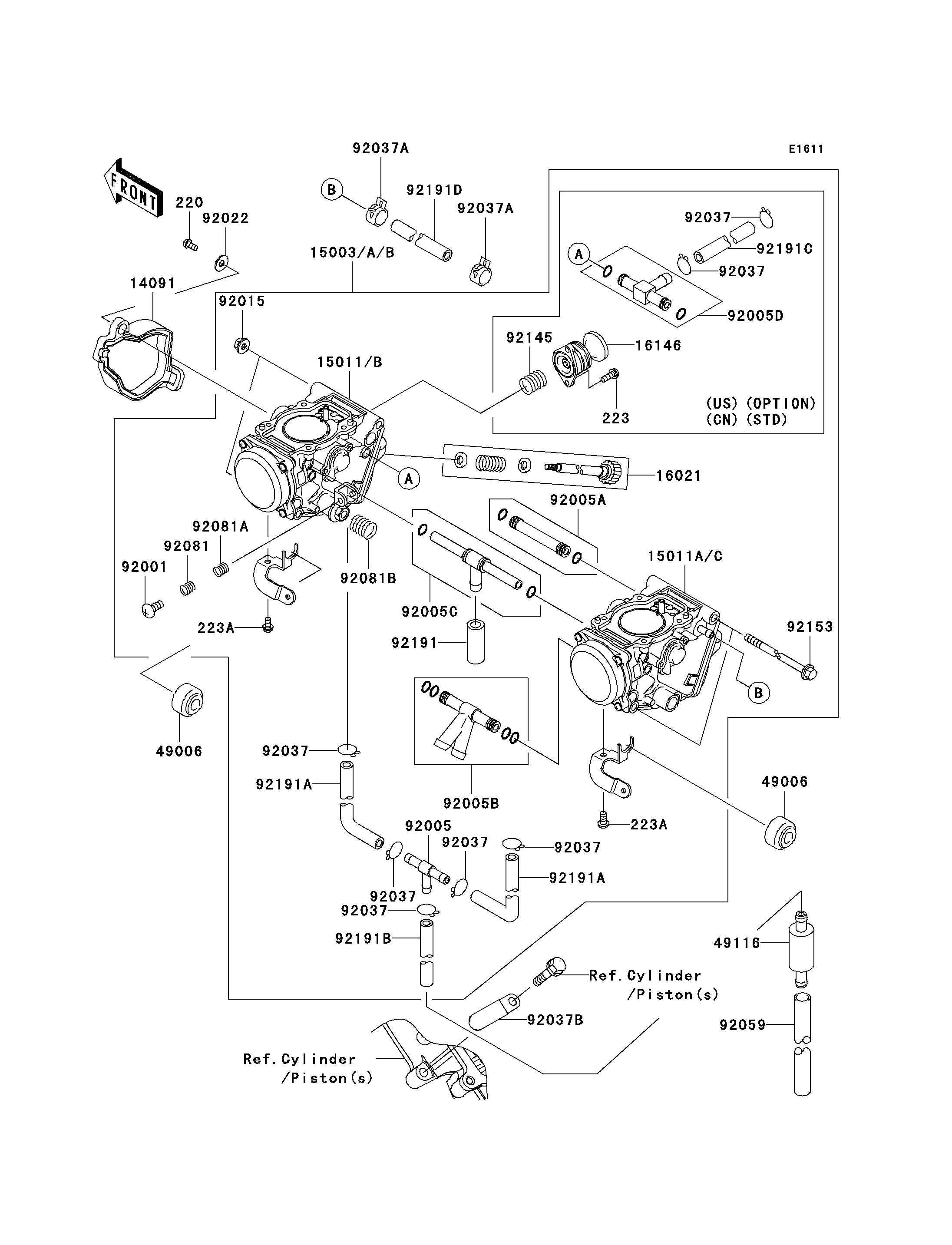

2004 Prairie 700 4x4 Hardwoods Green HD - Carburetor
14091
14091
15003B
15003B
16021
16021
49006
49006
49006
49006
49116
49116
92001
92001
92005
92005
92005A
92005A
92005B
92005B
92005C
92005C
92015
92015
92022
92022
92037A
92037A
92037A
92037A
92037B
92037B
92059
92059
92081
92081
92081A
92081A
92081B
92081B
92153
92153
92191
92191
92191A
92191A
92191A
92191A
220
220
223A
223A
223A
223A
92191B
92191B
92191D
92191D
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
COVER,THROTTLE CABLE | 14091 | 14091-1196 | 1 | ||
CARBURETOR-ASSY,PRIMARY PUMP | 15003B | 15003-0007 | 1 | US | (OPTION) |
SCREW-THROTTLE STOP | 16021 | 16021-1238 | 1 | ||
BOOT,STARTER CABLE | 49006 | 49006-1353 | 2 | ||
VALVE-ASSY | 49116 | 49116-1126 | 1 | ||
BOLT,THROTTLE ADJUST | 92001 | 92001-1998 | 1 | ||
FITTING,FUEL,T-TYPE | 92005 | 92005-1112 | 1 | ||
FITTING | 92005A | 92005-1375 | 1 | ||
FITTING | 92005B | 92005-1376 | 1 | ||
FITTING | 92005C | 92005-1385 | 1 | ||
NUT,FLANGED,5MM | 92015 | 92015-1259 | 2 | ||
WASHER,5.2X13X1 | 92022 | 92022-1380 | 1 | ||
CLAMP,TUBE | 92037A | 92037-1505 | 2 | ||
CLAMP,L=45 | 92037B | 92037-1539 | 1 | ||
TUBE,7X10X100 | 92059 | 92059-1736 | 1 | ||
SPRING,THROTTLE ADJUST UPP | 92081 | 92081-1620 | 1 | ||
SPRING,THROTTLE ADJUST LWR | 92081A | 92081-1621 | 1 | ||
SPRING,THROTTLE ADJUST CNT | 92081B | 92081-1622 | 1 | ||
BOLT,5X143 | 92153 | 92153-1068 | 2 | ||
TUBE,7X11X25 | 92191 | 92191-1672 | 1 | ||
TUBE,4.5X8X65 | 92191A | 92191-1673 | 2 | ||
SCREW-PAN-CROS | 220 | 220B0408 | 1 | ||
SCREW-PAN-WS-CROS | 223A | 223D0408 | 2 | ||
TUBE,4.5X8X420 | 92191B | 92191-1674 | 1 | ||
TUBE,5.3X10.3X200 | 92191D | 92191-1694 | 1 | ||
CARBURETOR-ASSY | 15003 | 15003-0006 | 1 | US | |
CARBURETOR-ASSY,PRIMARY PUMP | 15003A | 15003-0007 | 1 | CN | |
CARBURETOR,FR | 15011 | 15011-0017 | 1 | US | |
CARBURETOR,RR | 15011A | 15011-0018 | 1 | US | |
CARBURETOR,FR | 15011B | 15011-0019 | 1 | CN | |
CARBURETOR,RR | 15011C | 15011-0020 | 1 | CN | |
COVER-ASSY,PRIMING | 16146 | 16146-1225 | 1 | CN | |
FITTING | 92005D | 92005-1393 | 1 | CN | |
CLAMP,TUBE | 92037 | 92037-1201 | 5 | US | |
CLAMP,TUBE | 92037 | 92037-1201 | 7 | CN | |
SPRING,PRIMING | 92145 | 92145-1451 | 1 | CN | |
SCREW-PAN-WS-CROS | 223 | 223C0412 | 2 | CN | |
TUBE,4.5X8.5X35 | 92191C | 92191-1676 | 1 | CN |
COVER,THROTTLE CABLE | |
REF # | 14091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CARBURETOR-ASSY,PRIMARY PUMP | |
REF # | 15003B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | US |
REMARKS | (OPTION) |
SCREW-THROTTLE STOP | |
REF # | 16021 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOOT,STARTER CABLE | |
REF # | 49006 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
VALVE-ASSY | |
REF # | 49116 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,THROTTLE ADJUST | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FITTING,FUEL,T-TYPE | |
REF # | 92005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FITTING | |
REF # | 92005A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FITTING | |
REF # | 92005B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FITTING | |
REF # | 92005C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,FLANGED,5MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,5.2X13X1 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,TUBE | |
REF # | 92037A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP,L=45 | |
REF # | 92037B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,7X10X100 | |
REF # | 92059 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,THROTTLE ADJUST UPP | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,THROTTLE ADJUST LWR | |
REF # | 92081A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,THROTTLE ADJUST CNT | |
REF # | 92081B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,5X143 | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TUBE,7X11X25 | |
REF # | 92191 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,4.5X8X65 | |
REF # | 92191A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-PAN-WS-CROS | |
REF # | 223A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TUBE,4.5X8X420 | |
REF # | 92191B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,5.3X10.3X200 | |
REF # | 92191D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CARBURETOR-ASSY | |
REF # | 15003 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | US |
REMARKS |
CARBURETOR-ASSY,PRIMARY PUMP | |
REF # | 15003A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
CARBURETOR,FR | |
REF # | 15011 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | US |
REMARKS |
CARBURETOR,RR | |
REF # | 15011A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | US |
REMARKS |
CARBURETOR,FR | |
REF # | 15011B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
CARBURETOR,RR | |
REF # | 15011C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
COVER-ASSY,PRIMING | |
REF # | 16146 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
FITTING | |
REF # | 92005D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
CLAMP,TUBE | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | US |
REMARKS |
CLAMP,TUBE | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 7 |
DESTINATION | CN |
REMARKS |
SPRING,PRIMING | |
REF # | 92145 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
SCREW-PAN-WS-CROS | |
REF # | 223 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | CN |
REMARKS |
TUBE,4.5X8.5X35 | |
REF # | 92191C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
