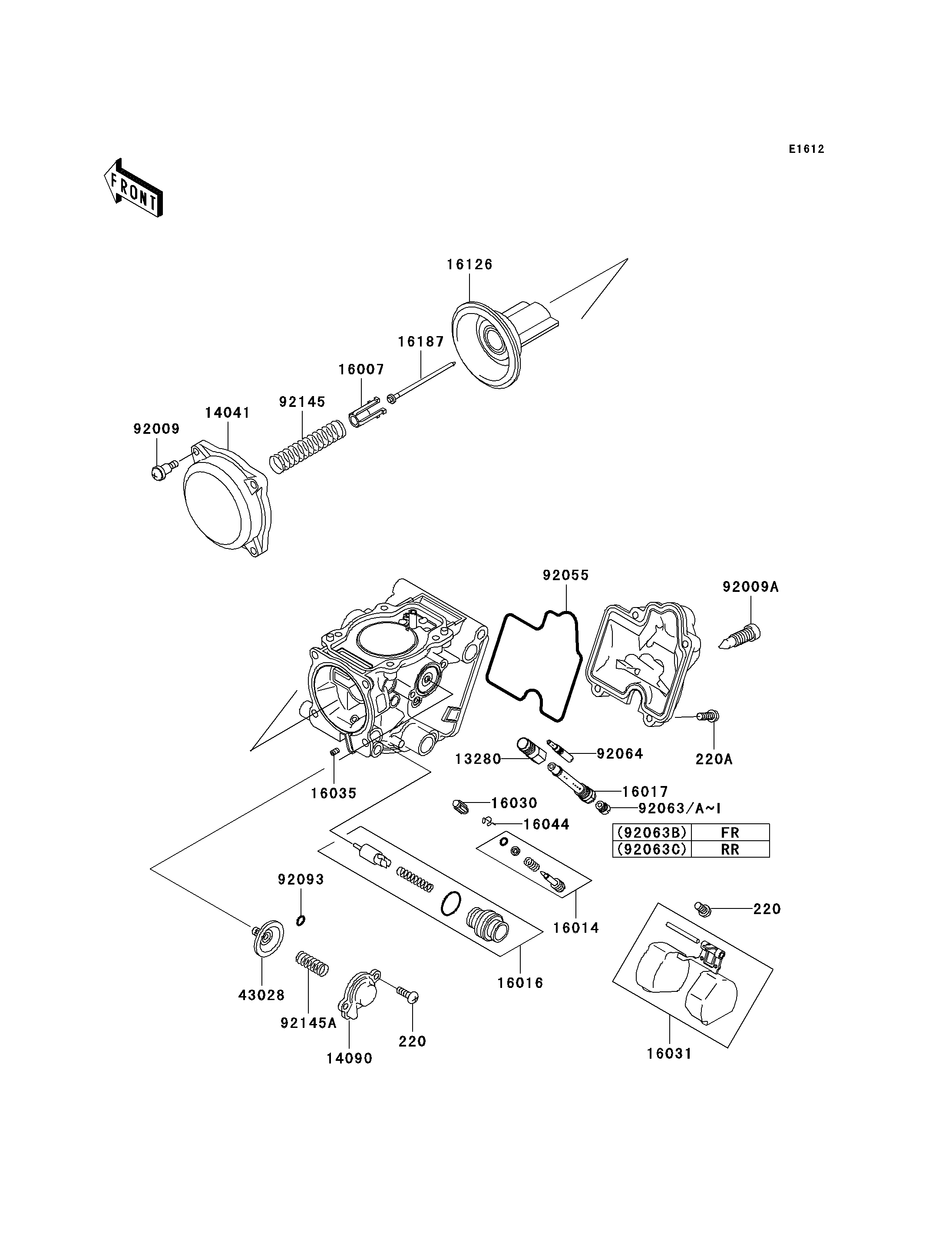

2004 Prairie 700 4x4 Hardwoods Green HD - Carburetor Parts

DOWNLOAD PDF
SELECT A NEW PART
220
220
220A
13280
14041
14090
16007
16014
16016
16017
16030
16031
16035
16044
16126
16187
43028
92009
92009A
92055
92063
92063A
92063B
92063C
92063D
92063E
92063F
92063G
92063H
92063I
92064
92093
92145
92145A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS 220 220D0408 6
SCREW-PAN-CROS 220A 220D0414 8
HOLDER,JET 13280 13280-1096 2
CAP-CHAMBER,MIXING 14041 14041-1090 2
COVER,AIR CUT VALVE 14090 14090-1984 2
SEAT-SPRING,THROTTLE VALVE 16007 16007-1120 2
SCREW-PILOT AIR 16014 16014-1101 2
PLUNGER 16016 16016-1117 2
JET-NEEDLE 16017 16017-1441 2
VALVE-FLOAT 16030 16030-1007 2
FLOAT 16031 16031-1097 2
JET-AIR,LEAK 16035 16035-1055 2
CLAMP,FLOAT VALVE 16044 16044-007 2
VALVE,VACUUM 16126 16126-1226 2
NEEDLE-JET 16187 16187-0023 2
DIAPHRAGM,AIR CUT VALVE 43028 43028-1085 2
SCREW,4X4.4 92009 92009-1549 8
SCREW,DRAIN,M6X0.75 92009A 92009-1551 2
RING-O,FLOAT CHAMBER 92055 92055-1589 2
JET-MAIN,#140 92063 92063-1013 AR (OPTION)
JET-MAIN,#135 92063A 92063-1014 AR (OPTION)
JET-MAIN,#138 92063B 92063-1015 1
JET-MAIN,#142 92063C 92063-1016 1
JET-MAIN,#145 92063D 92063-1017 AR (OPTION)
JET-MAIN,#125 92063E 92063-1069 AR (OPTION)
JET-MAIN,#128 92063F 92063-1074 AR (OPTION)
JET-MAIN,#130 92063G 92063-1075 AR (OPTION)
JET-MAIN,#132 92063H 92063-1076 AR (OPTION)
JET-MAIN,#148 92063I 92063-1324 AR (OPTION)
JET-PILOT,#40 92064 92064-0005 2
SEAL,"U"RING 92093 92093-1046 2
SPRING,VACUUM VALVE 92145 92145-1227 2
SPRING,AIR CUT VALVE 92145A 92145-1450 2
