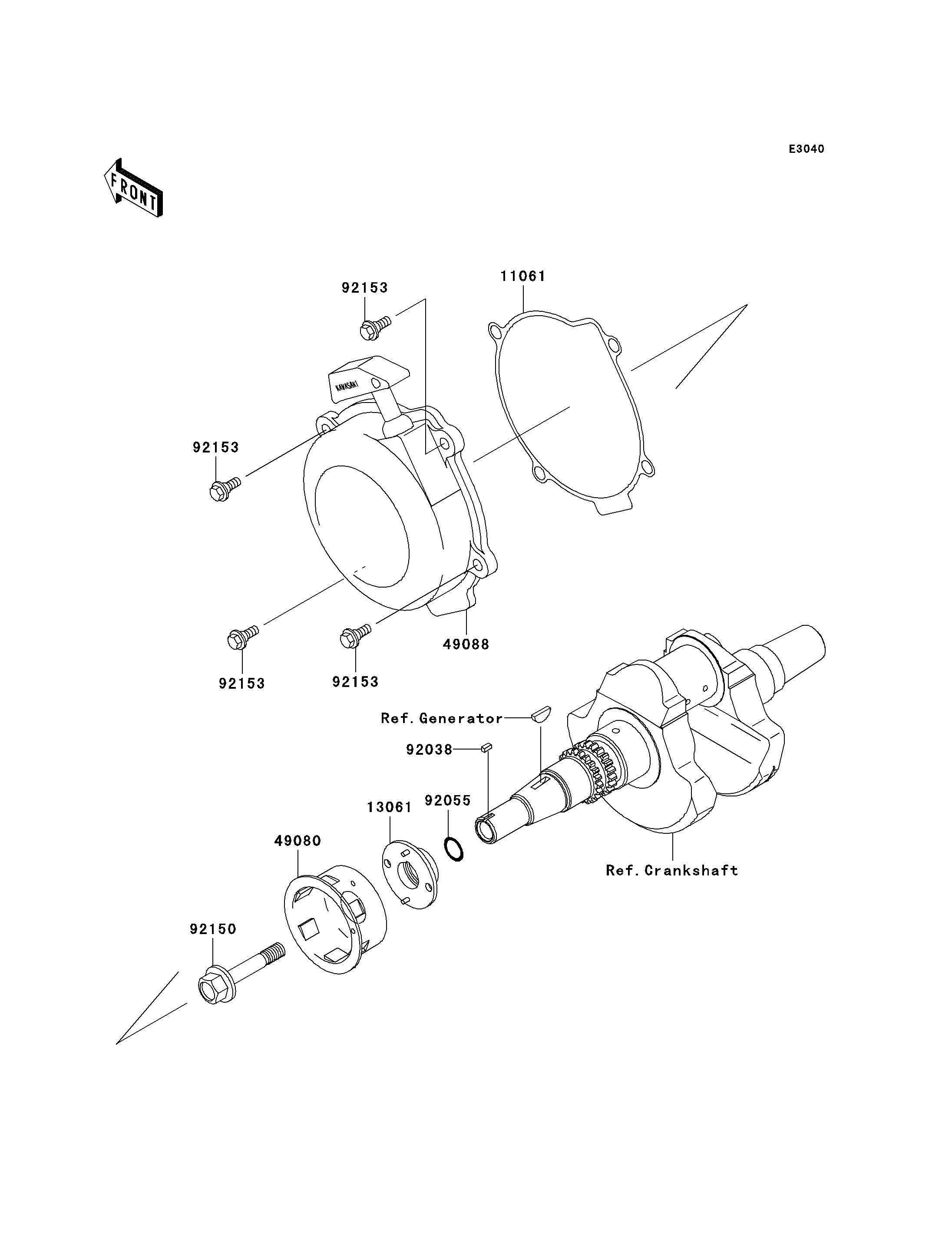

2004 Prairie 700 4x4 Hardwoods Green HD - Recoil Starter

11061
13061
49080
49088
92038
92055
92150
92153
92153
92153
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RECOIL STARTER 11061 11061-1153 1
BOSS 13061 13061-1873 1
PULLEY-STARTING 49080 49080-1061 1
STARTER-RECOIL 49088 49088-1058 1
KEY,SUNK 92038 92038-1051 1
RING-O,19.8X2.2 92055 92055-1215 1
BOLT,12X65 92150 92150-1987 1
BOLT,FLANGED,6X16 92153 92153-7007 4
