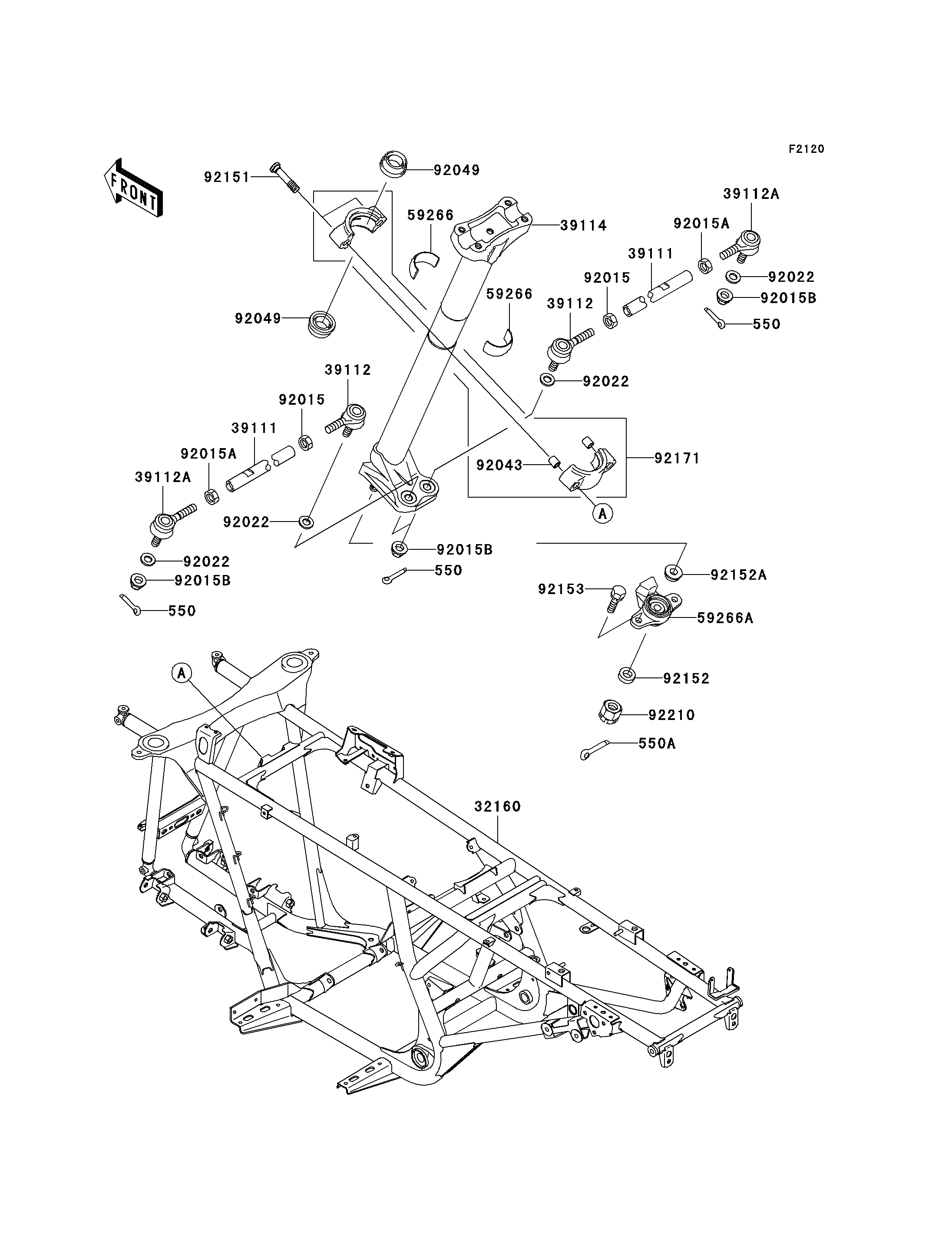

2004 Prairie 700 4x4 Hardwoods Green HD - Frame

DOWNLOAD PDF
SELECT A NEW PART
550
550
550
550A
32160
39111
39111
39112
39112
39112A
39112A
39114
59266
59266
59266A
92015
92015
92015A
92015A
92015B
92015B
92015B
92022
92022
92022
92022
92043
92049
92049
92151
92152
92152A
92153
92171
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-COTTER,2.0X15 550 550D2015 4
PIN-COTTER,3.0X25 550A 550D3025 1
FRAME-COMP 32160 32160-0002 1
ROD-TIE 39111 39111-1090 2
RODEND-TIE 39112 39112-1083 2
RODEND-TIE 39112A 39112-1085 2
SHAFT-COMP-STRG 39114 39114-1090 1
JOINT-BALL 59266 59266-1117 2
JOINT-BALL 59266A 59266-1125 1
NUT,LOCK,10MM 92015 92015-1460 2
NUT,LOCK,10MM 92015A 92015-1494 2
NUT,LOCK,FLANGED,10MM 92015B 92015-1717 4
WASHER,10.2X20X1.5 92022 92022-3742 4
PIN,8.2X10X14 92043 92043-1264 2
SEAL-OIL,SR7 39.6X49X6-2 NS 92049 92049-1580 2
BOLT,8X53 92151 92151-1711 2
COLLAR,12X21.3X7 92152 92152-1351 1
COLLAR 92152A 92152-1358 1
BOLT,8X30 92153 92153-1065 2
CLAMP,STEERING SHAFT 92171 92171-1449 1
NUT,12MM 92210 92210-7501 1
