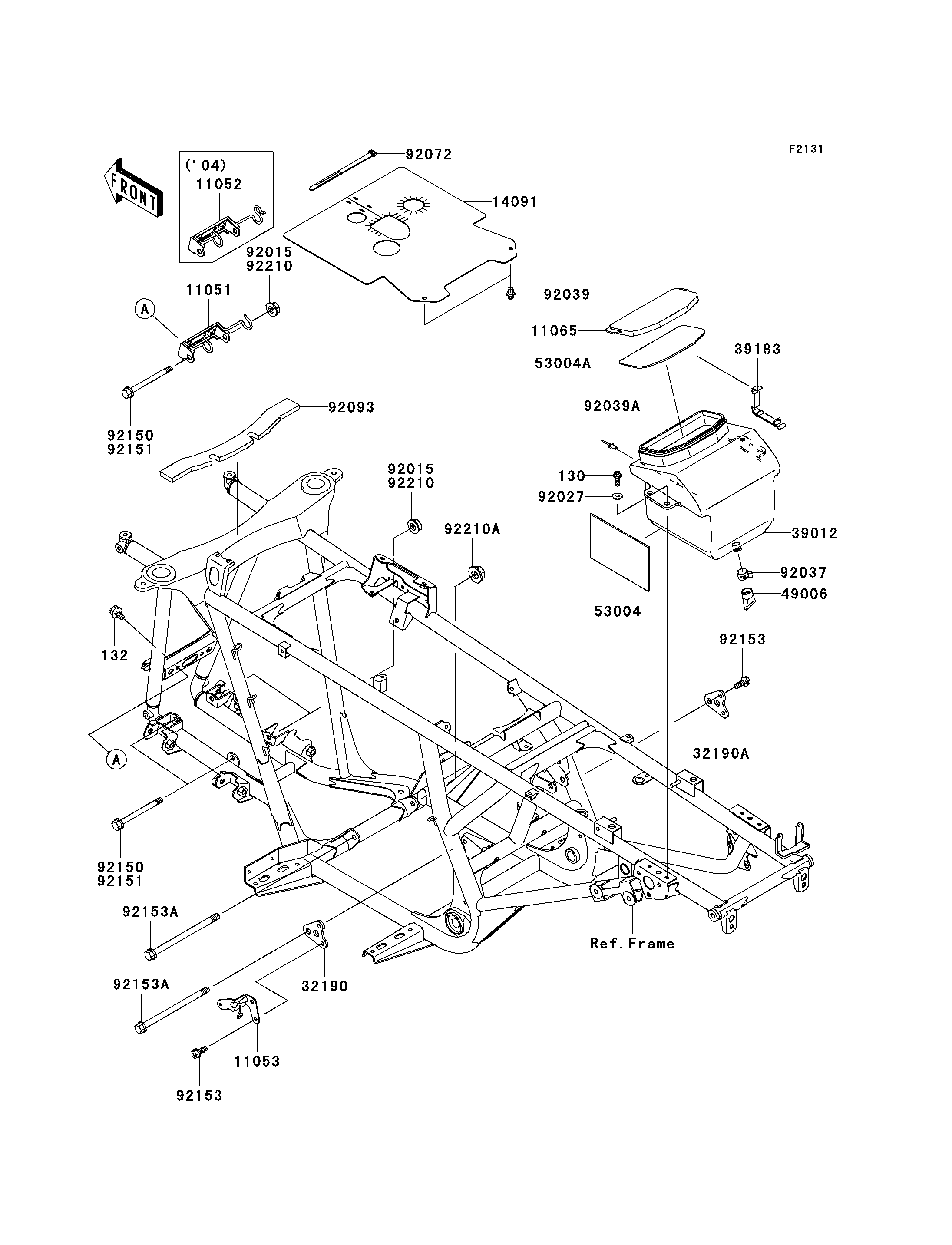

2004 Prairie 700 4x4 Hardwoods Green HD - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
130
132
11052
11053
11065
14091
32190
32190A
39012
39183
49006
53004
53004A
92027
92037
92039
92039A
92072
92093
92151
92151
92153
92153
92153A
92153A
92210
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X20 130 130G0620 4
BOLT-FLANGED-SMALL,8X14 132 132J0814 2
BRACKET,FRONT DIFF 11052 11052-1181 1
BRACKET,RESERVOIR TANK 11053 11053-0481 1
CAP,STORAGE CASE 11065 11065-1154 1
COVER,FR,UPP 14091 14091-1347 1
BRACKET-ENGINE,RR,UPP,LH 32190 32190-0045 1
BRACKET-ENGINE,RR,UPP,RH 32190A 32190-0046 1
CASE-STORAGE 39012 39012-1064 1
BAND-ASSY,TOOL BAG 39183 39183-1065 1
BOOT 49006 49006-1292 1
MAT,STORAGE CASE 53004 53004-1139 1
MAT,STORAGE CASE CAP 53004A 53004-1147 1
COLLAR 92027 92027-1936 4
CLAMP,HOSE CLIP 92037 92037-1460 1
RIVET 92039 92039-1229 2
RIVET,4.8MM 92039A 92039-3719 2
BAND,L=123 92072 92072-030 2
SEAL 92093 92093-1555 1
BOLT,FLANGED,10X120 92151 92151-1914 3
BOLT,FLANGED,8X20 92153 92153-0948 4
BOLT,FLANGED,12X190 92153A 92153-1272 2
NUT,LOCK,FLANGED,10MM 92210 92210-1081 3
NUT,LOCK,FLANGED,12MM 92210A 92210-1150 1
