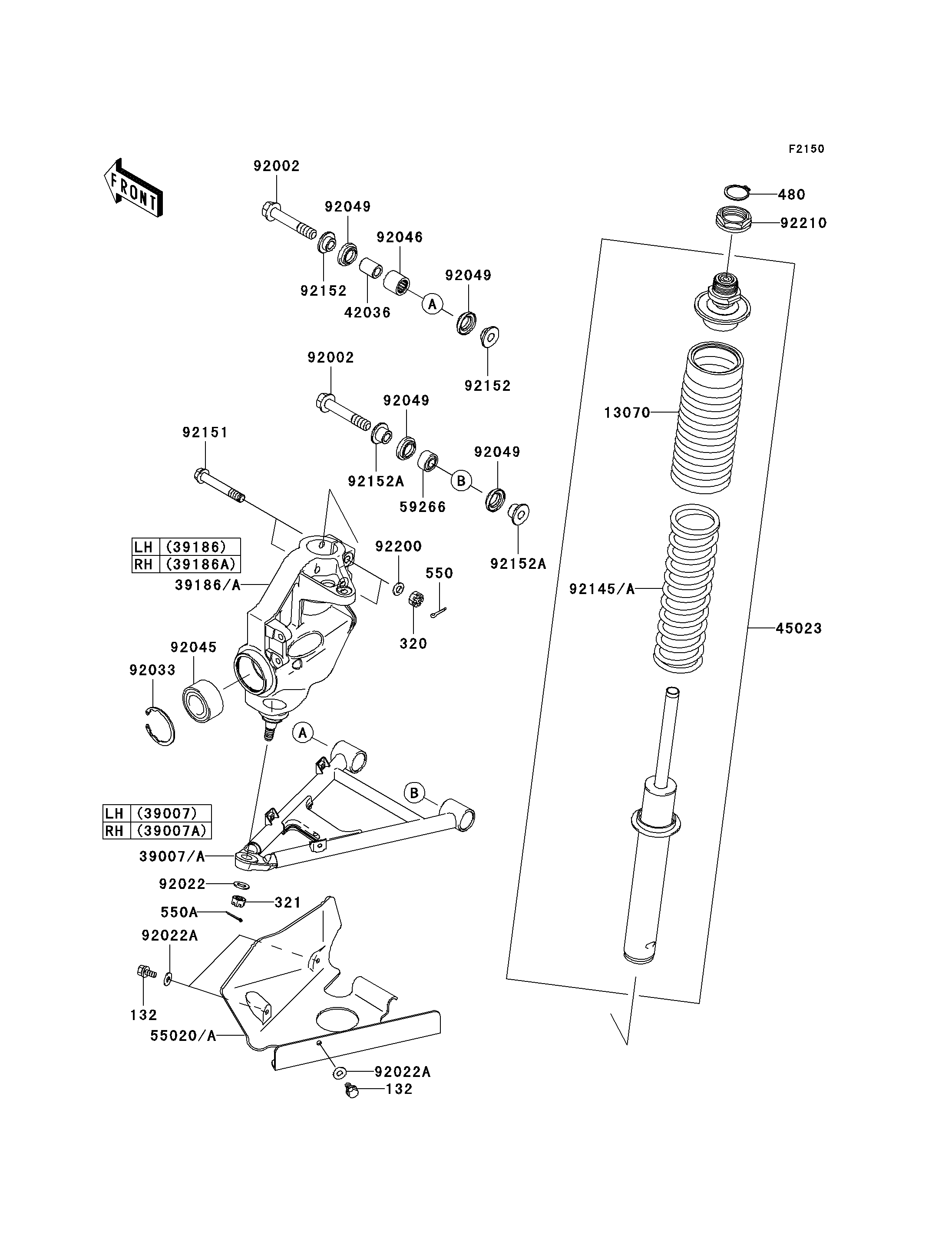

2004 Prairie 700 4x4 Hardwoods Green HD - Suspension

DOWNLOAD PDF
SELECT A NEW PART
132
132
320
321
480
550
550A
13070
39007
39007A
39186
39186A
42036
45023
55020
55020A
59266
92002
92002
92022
92022A
92022A
92033
92045
92046
92049
92049
92049
92049
92145
92145A
92151
92152
92152
92152A
92152A
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X12 132 132J0612 6
NUT-CASTLE 320 320H1000 4
NUT-CASTLE,12MM 321 321H1200 2
CIRCLIP-TYPE-C,32MM 480 480J3200 2
PIN-COTTER,2.0X15 550 550D2015 4
PIN-COTTER,3.0X25 550A 550D3025 2
GUIDE,STRUT 13070 13070-1383 2
ARM-SUSP,LH 39007 39007-0058 1
ARM-SUSP,RH 39007A 39007-0059 1
KNUCKLE ASSY,FR,LH 39186 39186-0041 1
KNUCKLE ASSY,FR,RH 39186A 39186-0042 1
SLEEVE,12X20X26.7 42036 42036-1365 2
STRUT 45023 45023-1014 2
GUARD,FRONT AXLE,LH 55020 55020-1768 1
GUARD,FRONT AXLE,RH 55020A 55020-1769 1
JOINT-BALL 59266 59266-1118 2
BOLT,FLANGED,12X67 92002 92002-1861 4
WASHER,12.3X22X1.6 92022 92022-1065 2
WASHER,7X16X1.2 92022A 92022-1344 6
RING-SNAP,55MM 92033 92033-1274 2
BEARING-BALL,30BWD08A 92045 92045-1448 2
BEARING-NEEDLE,TA202725ZE 92046 92046-1290 2
SEAL-OIL,MF020N3 92049 92049-1539 8
SPRING,STRUT,K=10.8N/MM 92145 92145-0009 2 (OPTION)
SPRING,STRUT,K=9.81N/MM 92145A 92145-1445 2
BOLT,FLANGED,10X65 92151 92151-1709 4
COLLAR 92152 92152-1295 4
COLLAR 92152A 92152-1296 4
WASHER,10.5X19X2.3 92200 92200-1042 4
NUT,FLANGED,35MM 92210 92210-1226 2
