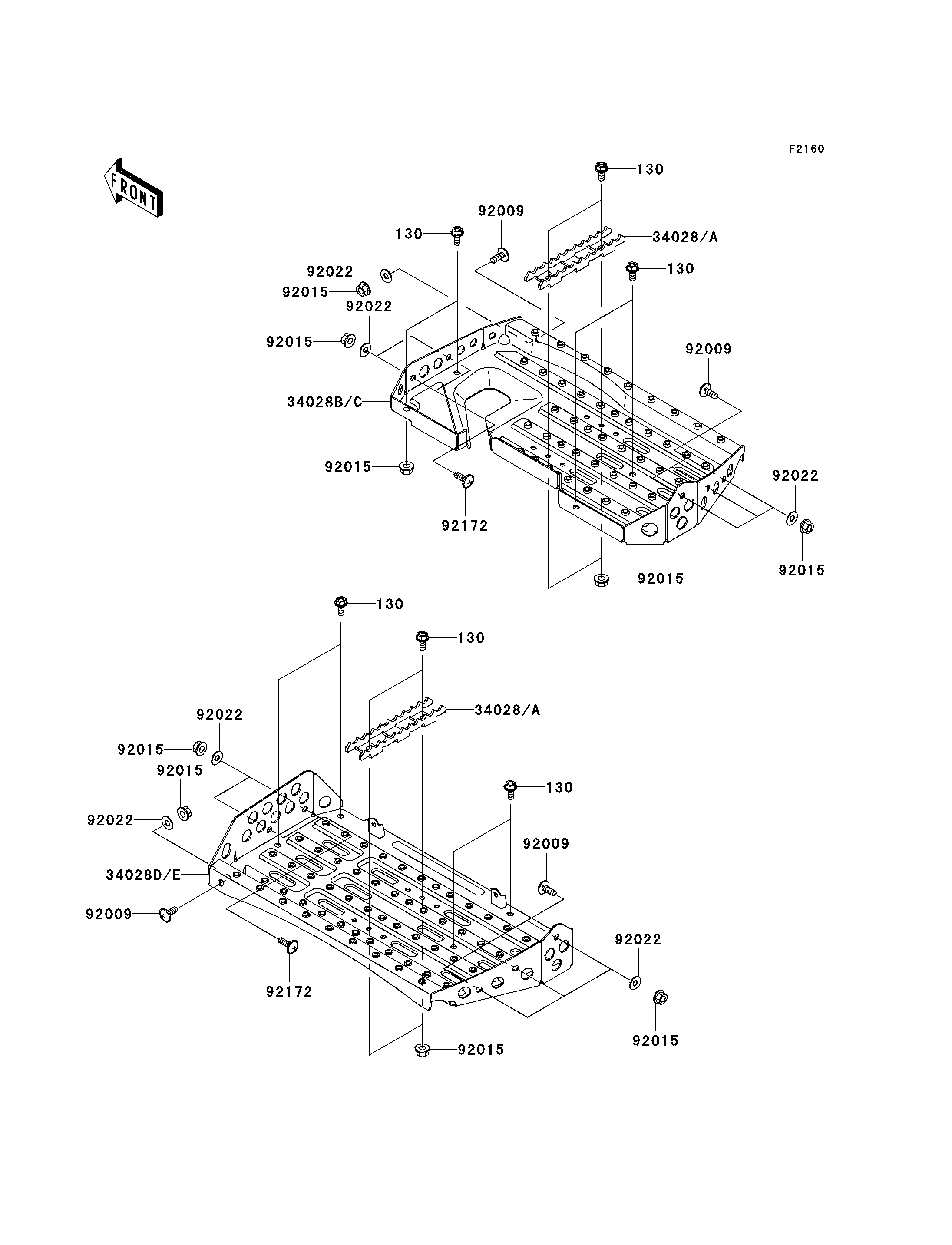

2004 Prairie 700 4x4 Hardwoods Green HD - Footrests
130
130
130
130
130
130
34028
34028
34028B
34028D
92009
92009
92009
92009
92015
92015
92015
92015
92015
92015
92015
92015
92015
92022
92022
92022
92022
92022
92022
92172
92172
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X14 | 130 | 130J0614 | 12 | ||
| STEP,FOOT PEG,S.GOLD | 34028 | 34028-1487-UF | 2 | ||
| STEP,RH,S.GOLD | 34028B | 34028-1513-UF | 1 | ||
| STEP,LH,S.GOLD | 34028D | 34028-1521-UF | 1 | ||
| SCREW,6X16 | 92009 | 92009-1621 | 8 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1367 | 17 | ||
| WASHER,6.5X16X1.0 | 92022 | 92022-1093 | 12 | ||
| SCREW,6X18 | 92172 | 92172-0002 | 4 |
| BOLT-FLANGED,6X14 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | |
| REMARKS | |
| STEP,FOOT PEG,S.GOLD | |
| REF # | 34028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| STEP,RH,S.GOLD | |
| REF # | 34028B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STEP,LH,S.GOLD | |
| REF # | 34028D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 17 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X16X1.0 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X18 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
