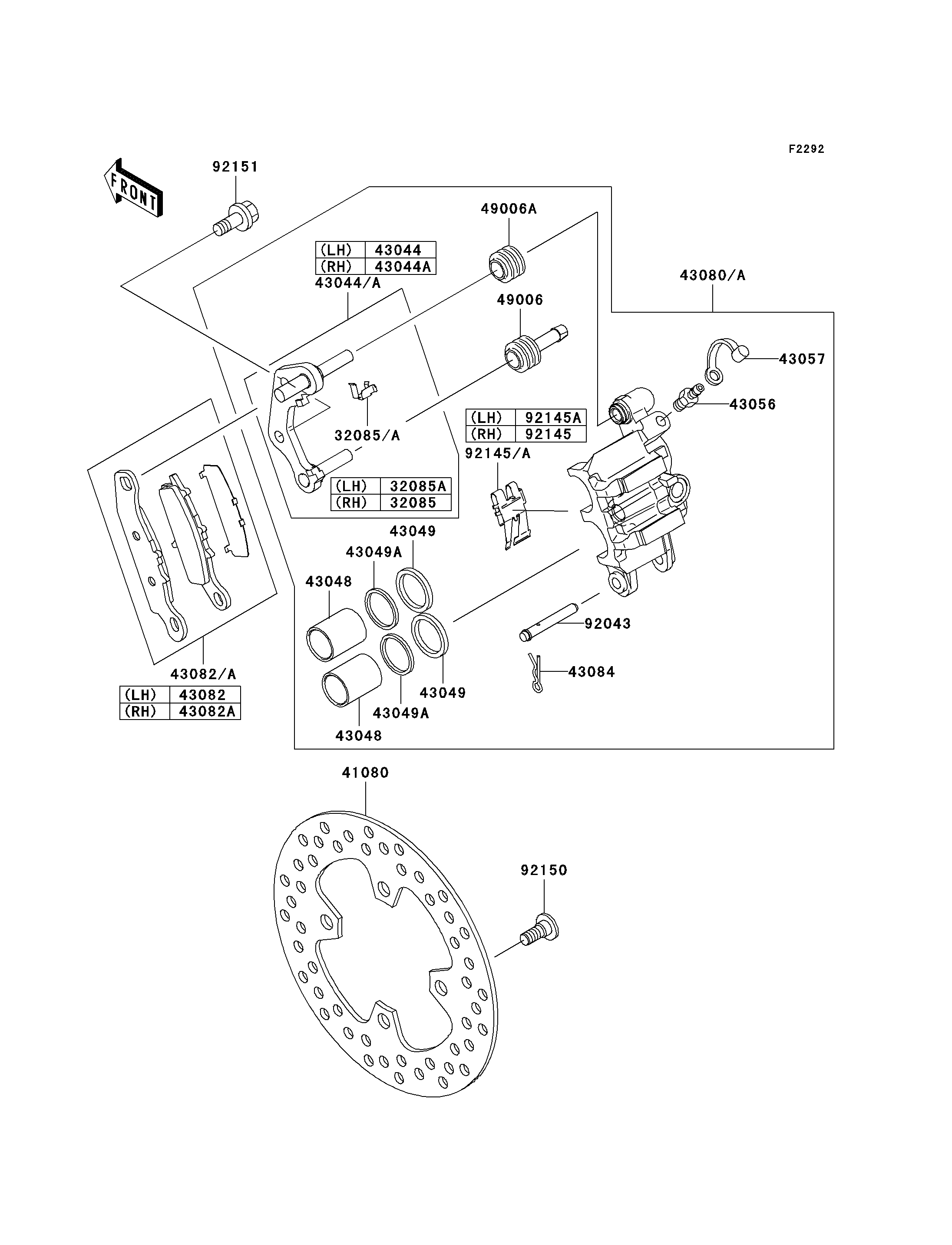

2004 Prairie 700 4x4 Hardwoods Green HD - Front Brake

DOWNLOAD PDF
SELECT A NEW PART
32085
32085A
41080
43044
43044A
43048
43048
43049
43049
43049A
43049A
43056
43057
43080
43080A
43082
43082A
43084
49006
49006A
92043
92145
92145A
92150
92151
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STOPPER 32085 32085-1437 1
STOPPER 32085A 32085-1517 1
DISC,FR 41080 41080-1513 2
HOLDER-COMP-CALIPER,FR,LH 43044 43044-1130 1
HOLDER-COMP-CALIPER,FR,RH 43044A 43044-1131 1
PISTON-CALIPER 43048 43048-1083 4
PACKING,PISTON 43049 43049-1059 4
PACKING,PISTON SEAL 43049A 43049-1090 4
BREATHER-BRAKE 43056 43056-1054 2
CAP-BREATHER 43057 43057-003 2
CALIPER-SUB-ASSY,FR,RH,BLACK 43080 43080-5081-DJ 1
CALIPER-SUB-ASSY,FR,LH,BLACK 43080A 43080-5082-DJ 1
PAD-ASSY-BRAKE 43082 43082-1255 1
PAD-ASSY-BRAKE 43082A 43082-1273 1
CLAMP,PAD 43084 43084-003 2
BOOT,CALIPER 49006 49006-1054 2
BOOT,CALIPER 49006A 49006-1055 2
PIN,PAD 92043 92043-1356 2
SPRING,PAD 92145 92145-1260 1
SPRING,PAD 92145A 92145-1354 1
BOLT,SOCKET,8X20 92150 92150-1800 8
BOLT,FLANGED,8X19 92151 92151-1793 4
