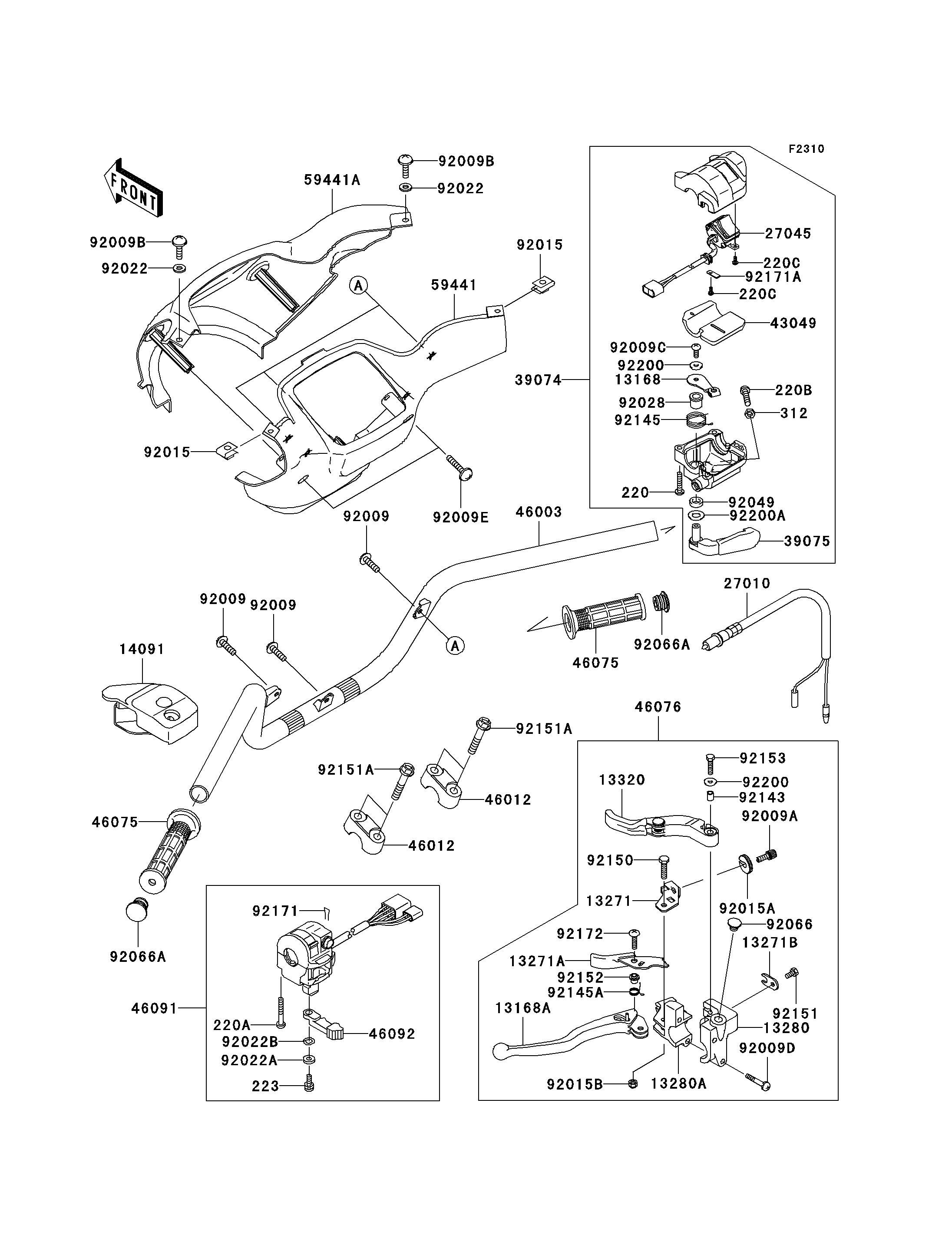

2004 Prairie 700 4x4 Hardwoods Green HD - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
13168
13168
13168A
13168A
13271
13271
13271A
13271A
13271B
13271B
13280
13280
13280A
13280A
13320
13320
14091
14091
27010
27010
27045
27045
39074
39074
39075
39075
43049
43049
46003
46003
46012
46012
46012
46012
46075
46075
46075
46075
46076
46076
46091
46091
46092
46092
59441
59441
59441A
59441A
92009
92009
92009
92009
92009
92009
92009A
92009A
92009B
92009B
92009B
92009B
92009C
92009C
92009D
92009D
92009E
92009E
92015
92015
92015
92015
92015A
92015A
92015B
92015B
92022
92022
92022
92022
92022A
92022A
92022B
92022B
92028
92028
92049
92049
92066
92066
92066A
92066A
92066A
92066A
92143
92143
92145
92145
220
220
220A
220A
220B
220B
220C
220C
220C
220C
223
223
312
312
92145A
92145A
92150
92150
92151
92151
92151A
92151A
92151A
92151A
92152
92152
92153
92153
92171
92171
92171A
92171A
92172
92172
92200
92200
92200
92200
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER 13168 13168-1715 1
LEVER,LH 13168A 13168-1736 1
PLATE,LOCK 13271 13271-1259 1
PLATE,LEVER LOCK 13271A 13271-1635 1
PLATE,WIRE OUTER STOPPER 13271B 13271-1636 1
HOLDER,DIFF LOCK LEVER 13280 13280-1226 1
HOLDER,LEVER,LH 13280A 13280-1227 1
LEVER-ASSY,DEFF LOCK 13320 13320-1018 1
COVER,DIFF LOCK LEVER 14091 14091-1403 1
SWITCH,BRAKE 27010 27010-1294 1
SWITCH-ASSY 27045 27045-1081 1
LEVER-ASSY-THROTTLE 39074 39074-1062 1
LEVER-THROTTLE 39075 39075-1062 1
PACKING 43049 43049-1088 1
HANDLE 46003 46003-1580 1
HOLDER-HANDLE 46012 46012-1168 2
GRIP,HANDLE 46075 46075-7501 2
LEVER-ASSY-GRIP,DEFF LOCK 46076 46076-1238 1
HOUSING-ASSY-CONTROL,LH 46091 46091-1847 1
LEVER-GRIP,CHOKE 46092 46092-1217 1
COVER-HANDLE,RR,C.H.GREEN 59441 59441-1174-374 1
COVER-HANDLE,FR,C.H.GREEN 59441A 59441-1175-374 1
SCREW,TAPPING,5X14 92009 92009-1197 3
SCREW,CABLE ADJUST,8MM 92009A 92009-1435 1
SCREW,5X12 92009B 92009-1652 2
SCREW 92009C 92009-1959 1
SCREW,6X30 92009D 92009-1961 2
SCREW,TAPPING,5X30 92009E 92009-1965 2
NUT,5MM 92015 92015-1573 2
NUT,CABLE ADJUST LOCK,8MM 92015A 92015-1596 1
NUT 92015B 92015-1829 1
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 2
WASHER,5MM 92022A 92022-1837 1
WASHER,WAVE,5MM 92022B 92022-1838 1
BUSHING 92028 92028-1986 1
SEAL-OIL 92049 92049-1578 1
PLUG,9.5X8,POLYETHYLENE 92066 92066-1077 1
PLUG 92066A 92066-1550 2
COLLAR 92143 92143-1216 1
SPRING 92145 92145-1392 1
SCREW-PAN-CROS,5X25 220 220C0525 3
SCREW-PAN-CROS,5X35 220A 220C0535 2
SCREW-PAN-CROS,6X25 220B 220C0625 1
SCREW-PAN-CROSS,3X8 220C 220D0308 3
SCREW-PAN-WS-CROS,5X12 223 223C0512 1
NUT-HEX,6MM,BLACK 312 312C0600 1
SPRING 92145A 92145-1429 1
BOLT 92150 92150-1420 1
BOLT,5X10 92151 92151-1975 1
BOLT,FLANGED,8X40 92151A 92151-2130 4
COLLAR 92152 92152-1176 1
BOLT,5X20 92153 92153-1129 1
CLAMP,CLIP 92171 92171-1095 1
CLAMP 92171A 92171-1344 1
SCREW,5X20 92172 92172-0078 1
WASHER 92200 92200-1558 2
WASHER 92200A 92200-1559 1
