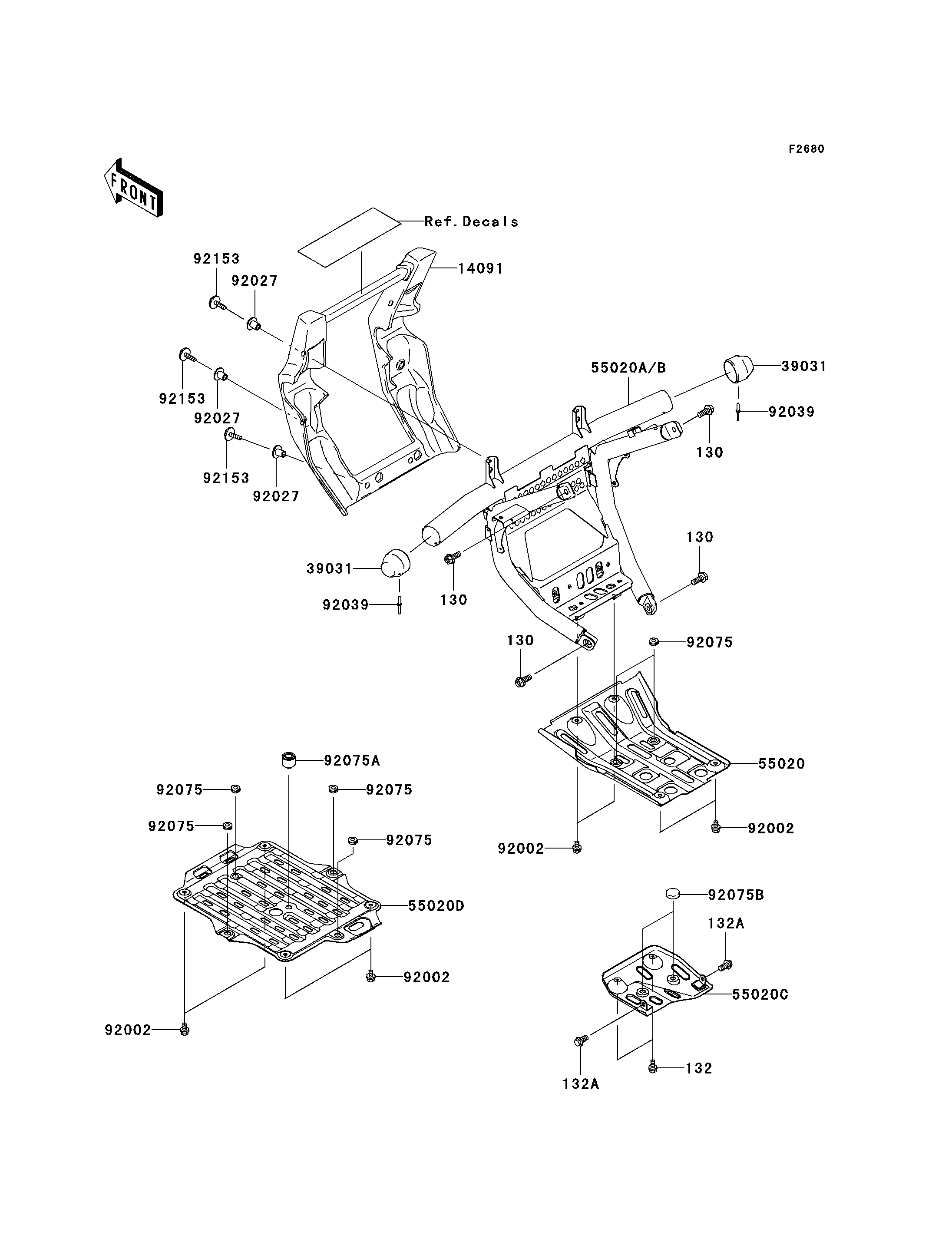

2004 Prairie 700 4x4 Hardwoods Green HD - Guard(s)
130
130
130
130
132
132A
132A
14091
39031
39031
55020
55020A
55020C
55020D
92002
92002
92002
92002
92027
92027
92027
92039
92039
92075
92075
92075
92075
92075
92075A
92075B
92153
92153
92153
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,8X20 | 130 | 130T0820 | 4 | ||
| BOLT-FLANGED-SMALL,6X12 | 132 | 132J0612 | 2 | ||
| BOLT-FLANGED-SMALL,8X16 | 132A | 132J0816 | 2 | ||
| COVER,FRONT GUARD,F.BLACK | 14091 | 14091-0123-6Z | 1 | ||
| CAP-END,GUARD PIPE | 39031 | 39031-0001 | 2 | ||
| GUARD,FRONT SKID | 55020 | 55020-0001 | 1 | ||
| GUARD,FR,S.GOLD | 55020A | 55020-0015-UF | 1 | ||
| GUARD,SWING ARM | 55020C | 55020-1756 | 1 | ||
| GUARD,ENGINE,UNDER | 55020D | 55020-1808 | 1 | ||
| BOLT,6X10 | 92002 | 92002-1449 | 8 | ||
| COLLAR,L=14.1 | 92027 | 92027-1920 | 6 | ||
| RIVET | 92039 | 92039-1150 | 2 | ||
| DAMPER | 92075 | 92075-051 | 6 | ||
| DAMPER | 92075A | 92075-1002 | 1 | ||
| DAMPER | 92075B | 92075-157 | 2 | ||
| BOLT,SOCKET,6X22 | 92153 | 92153-0665 | 6 |
