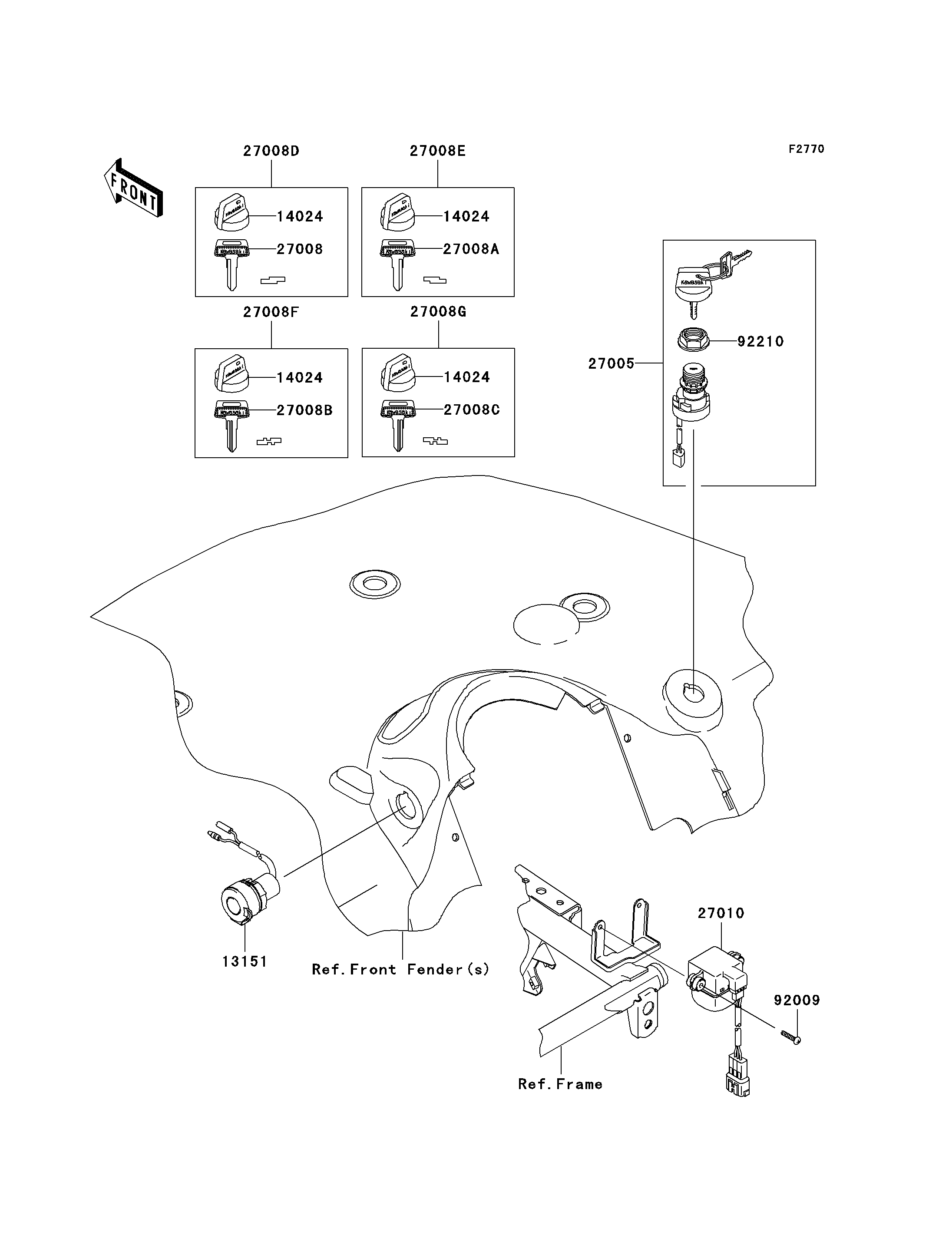

2004 Prairie 700 4x4 Hardwoods Green HD - Ignition Switch
13151
14024
14024
14024
14024
27005
27008
27008A
27008B
27008C
27008D
27008E
27008F
27008G
27010
92009
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SWITCH-COMP,D.C.TERMINAL | 13151 | 13151-0003 | 1 | ||
COVER,KEY | 14024 | 14024-1551 | 4 | (OPTION) | |
SWITCH-ASSY-IGNITION | 27005 | 27005-1267 | 1 | ||
KEY-LOCK,BLANK | 27008 | 27008-1041 | 1 | (OPTION) | |
KEY-LOCK,BLANK | 27008A | 27008-1042 | 1 | (OPTION) | |
KEY-LOCK,BLANK | 27008B | 27008-1043 | 1 | (OPTION) | |
KEY-LOCK,BLANK | 27008C | 27008-1044 | 1 | (OPTION) | |
KEY-LOCK,BLANK,W/COVER | 27008D | 27008-1132 | 1 | (OPTION) | |
KEY-LOCK,BLANK,W/COVER | 27008E | 27008-1133 | 1 | (OPTION) | |
KEY-LOCK,BLANK,W/COVER | 27008F | 27008-1134 | 1 | (OPTION) | |
KEY-LOCK,BLANK,W/COVER | 27008G | 27008-1135 | 1 | (OPTION) | |
SWITCH,INVERT SENSOR | 27010 | 27010-1421 | 1 | ||
SCREW,4X20 | 92009 | 92009-1897 | 2 | ||
NUT,IGNITION SWITCH | 92210 | 92210-1109 | 1 |
SWITCH-COMP,D.C.TERMINAL | |
REF # | 13151 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,KEY | |
REF # | 14024 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS | (OPTION) |
SWITCH-ASSY-IGNITION | |
REF # | 27005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
KEY-LOCK,BLANK | |
REF # | 27008 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
KEY-LOCK,BLANK | |
REF # | 27008A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
KEY-LOCK,BLANK | |
REF # | 27008B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
KEY-LOCK,BLANK | |
REF # | 27008C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
KEY-LOCK,BLANK,W/COVER | |
REF # | 27008D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
KEY-LOCK,BLANK,W/COVER | |
REF # | 27008E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
KEY-LOCK,BLANK,W/COVER | |
REF # | 27008F |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
KEY-LOCK,BLANK,W/COVER | |
REF # | 27008G |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
SWITCH,INVERT SENSOR | |
REF # | 27010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,4X20 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,IGNITION SWITCH | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
