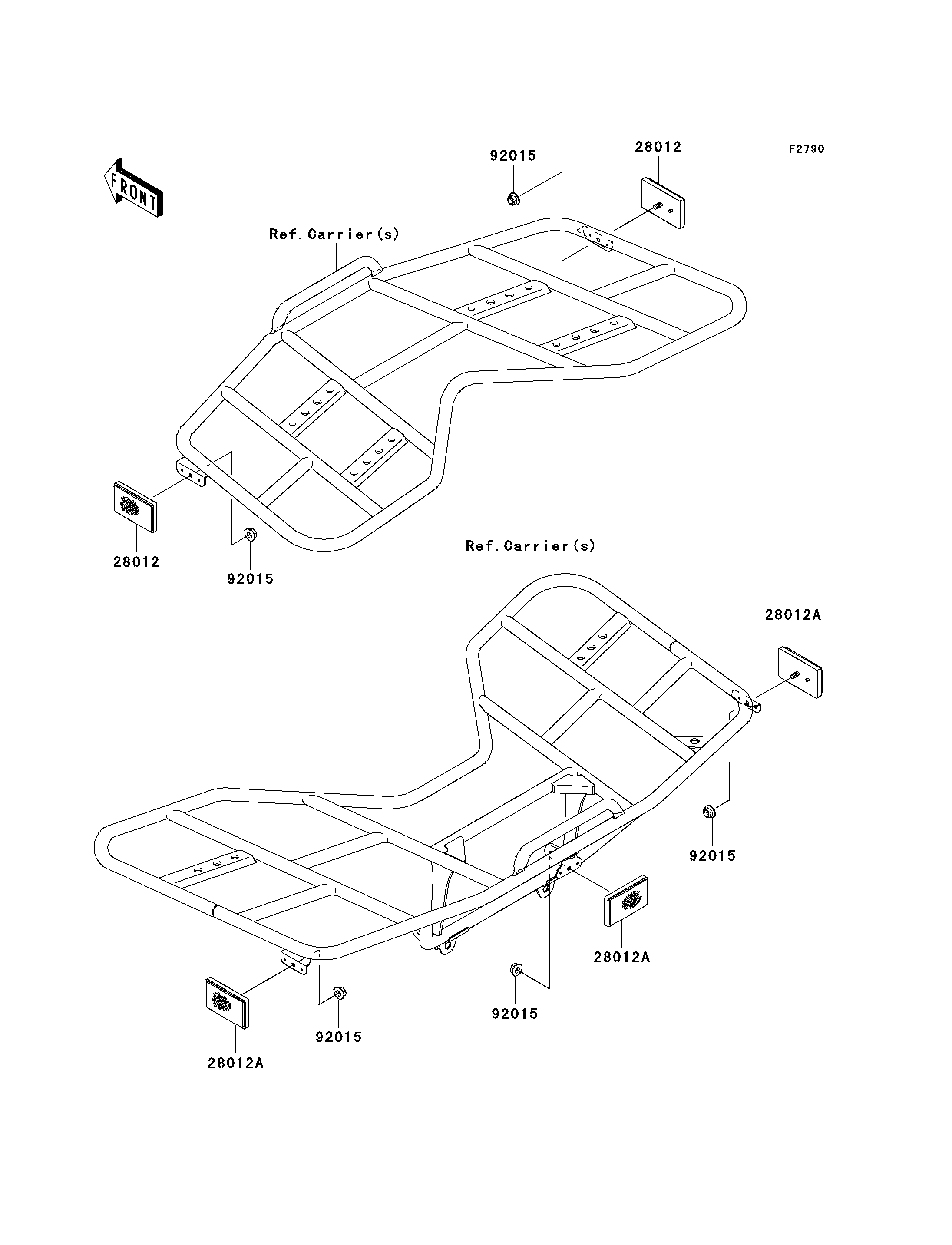

2004 Prairie 700 4x4 Hardwoods Green HD - Reflectors(CN)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
REFLECTOR-REFLEX 28012 28012-1003 2 CN
REFLECTOR-REFLEX 28012A 28012-1088 3 CN
NUT,FLANGED,5MM 92015 92015-1259 5 CN
