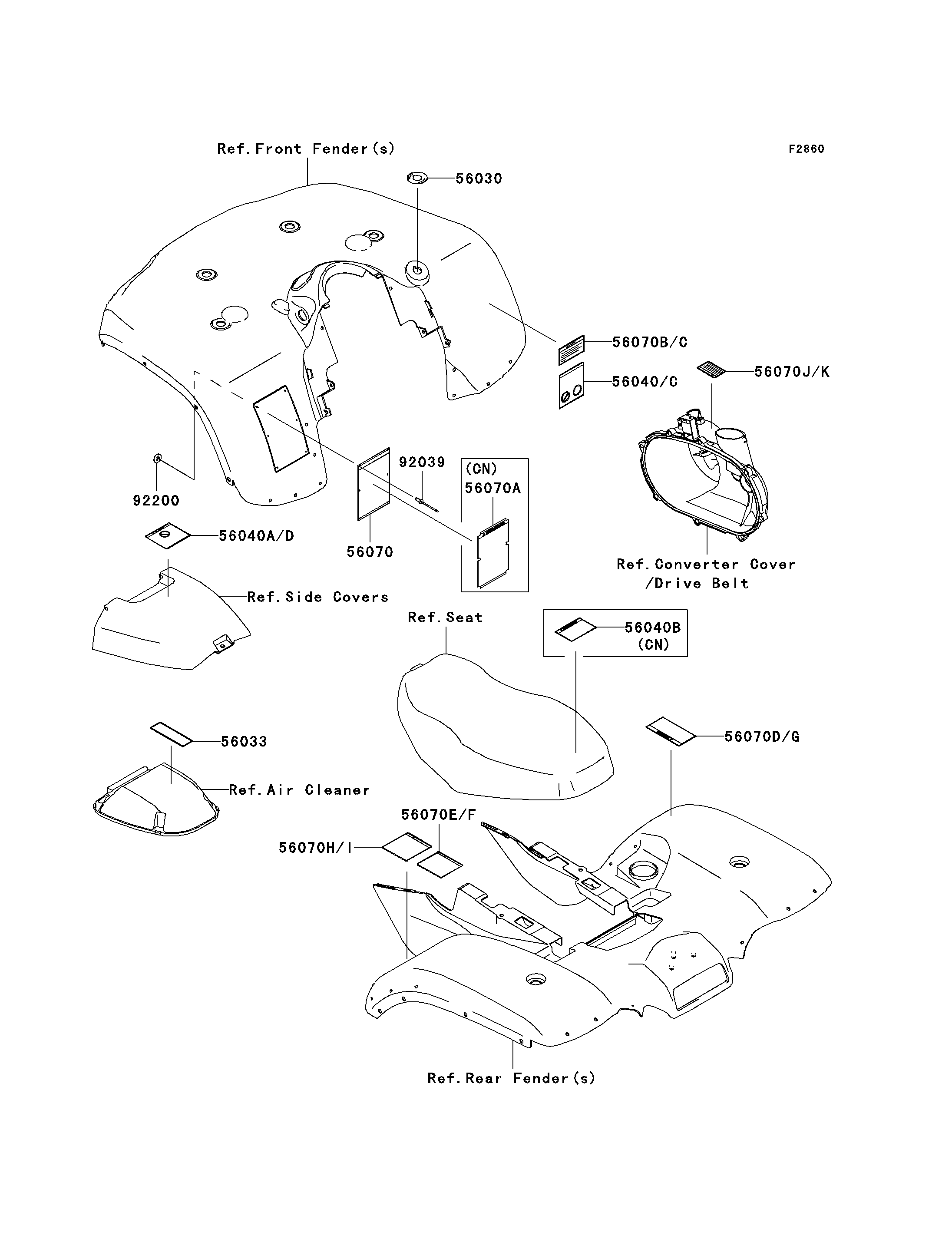

2004 Prairie 700 4x4 Hardwoods Green HD - Labels(B1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL,IGNITION SWITCH | 56030 | 56030-0014 | 1 | ||
| LABEL-MANUAL,MANUAL | 56033 | 56033-1263 | 1 | ||
| LABEL-WARNING,TRANSPORT | 56040 | 56040-1261 | 1 | ||
| LABEL-WARNING,UNDER 16 | 56040A | 56040-1276 | 1 | ||
| LABEL-WARNING,SERIOUS INJURY | 56070 | 56070-1151 | 1 | ||
| LABEL-WARNING,SHIFT LEVER | 56070B | 56070-1170 | 1 | ||
| LABEL-WARNING,TIRE INFO | 56070E | 56070-1248 | 1 | ||
| LABEL-WARNING,DRIVE BELT | 56070G | 56070-1254 | 1 | ||
| LABEL-WARNING,MAX VEHICLE LOAD | 56070H | 56070-1264 | 1 | ||
| LABEL-WARNING,CVT COVER | 56070J | 56070-1269 | 1 | ||
| RIVET,3.2X8 | 92039 | 92039-3763 | 6 | ||
| WASHER,3.5X8X1 | 92200 | 92200-1251 | 6 | ||
| LABEL-WARNING,NO PASSENGER | 56040B | 56040-1280 | 1 | CN | |
| LABEL-WARNING,TRANSPORT | 56040C | 56040-1283 | 1 | CN | |
| LABEL-WARNING,AGE | 56040D | 56040-1325 | 1 | CN | |
| LABEL-WARNING,GENERAL | 56070A | 56070-1163 | 1 | CN | |
| LABEL-WARNING,SHIFT LEVER | 56070C | 56070-1179 | 1 | CN | |
| LABEL-WARNING,DRIVE BELT(FRENCH) | 56070D | 56070-1244 | 1 | CN | |
| LABEL-WARNING,TIRE INFO | 56070F | 56070-1249 | 1 | CN | |
| LABEL-WARNING,MAX VEHICLE LOAD | 56070I | 56070-1265 | 1 | CN | |
| LABEL-WARNING,CVT COVER | 56070K | 56070-1271 | 1 | CN |
| LABEL,IGNITION SWITCH | |
| REF # | 56030 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-MANUAL,MANUAL | |
| REF # | 56033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,TRANSPORT | |
| REF # | 56040 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,UNDER 16 | |
| REF # | 56040A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,SERIOUS INJURY | |
| REF # | 56070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,SHIFT LEVER | |
| REF # | 56070B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,TIRE INFO | |
| REF # | 56070E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,DRIVE BELT | |
| REF # | 56070G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,MAX VEHICLE LOAD | |
| REF # | 56070H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,CVT COVER | |
| REF # | 56070J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIVET,3.2X8 | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WASHER,3.5X8X1 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,NO PASSENGER | |
| REF # | 56040B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LABEL-WARNING,TRANSPORT | |
| REF # | 56040C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LABEL-WARNING,AGE | |
| REF # | 56040D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LABEL-WARNING,GENERAL | |
| REF # | 56070A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LABEL-WARNING,SHIFT LEVER | |
| REF # | 56070C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LABEL-WARNING,DRIVE BELT(FRENCH) | |
| REF # | 56070D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LABEL-WARNING,TIRE INFO | |
| REF # | 56070F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LABEL-WARNING,MAX VEHICLE LOAD | |
| REF # | 56070I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LABEL-WARNING,CVT COVER | |
| REF # | 56070K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
