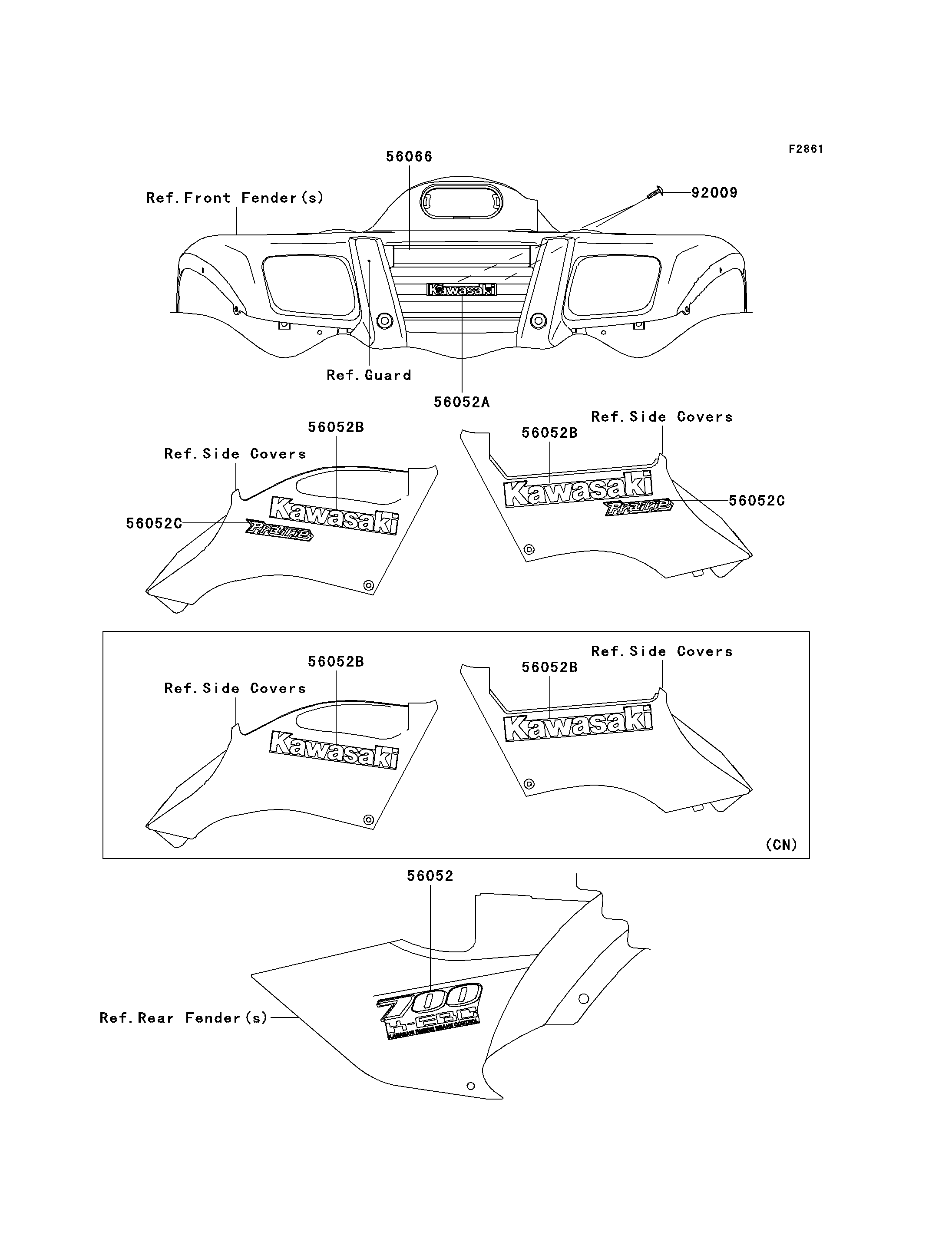

2004 Prairie 700 4x4 Hardwoods Green HD - Decals(B1)

56052
56052A
56052B
56052B
56052B
56052B
56066
92009
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,RR FENDER,700 56052 56052-0199 2
MARK,FR FENDER,KAWASAKI 56052A 56052-1201 1
MARK,FUEL TANK COVER,KAWASAKI 56052B 56052-1871 2
PATTERN,FRONT GUARD 56066 56066-0499 1
SCREW,TAPPING,4X12 92009 92009-1444 2
MARK,FUEL TANK COVER,PRAIRIE 56052C 56052-1872 2 US
