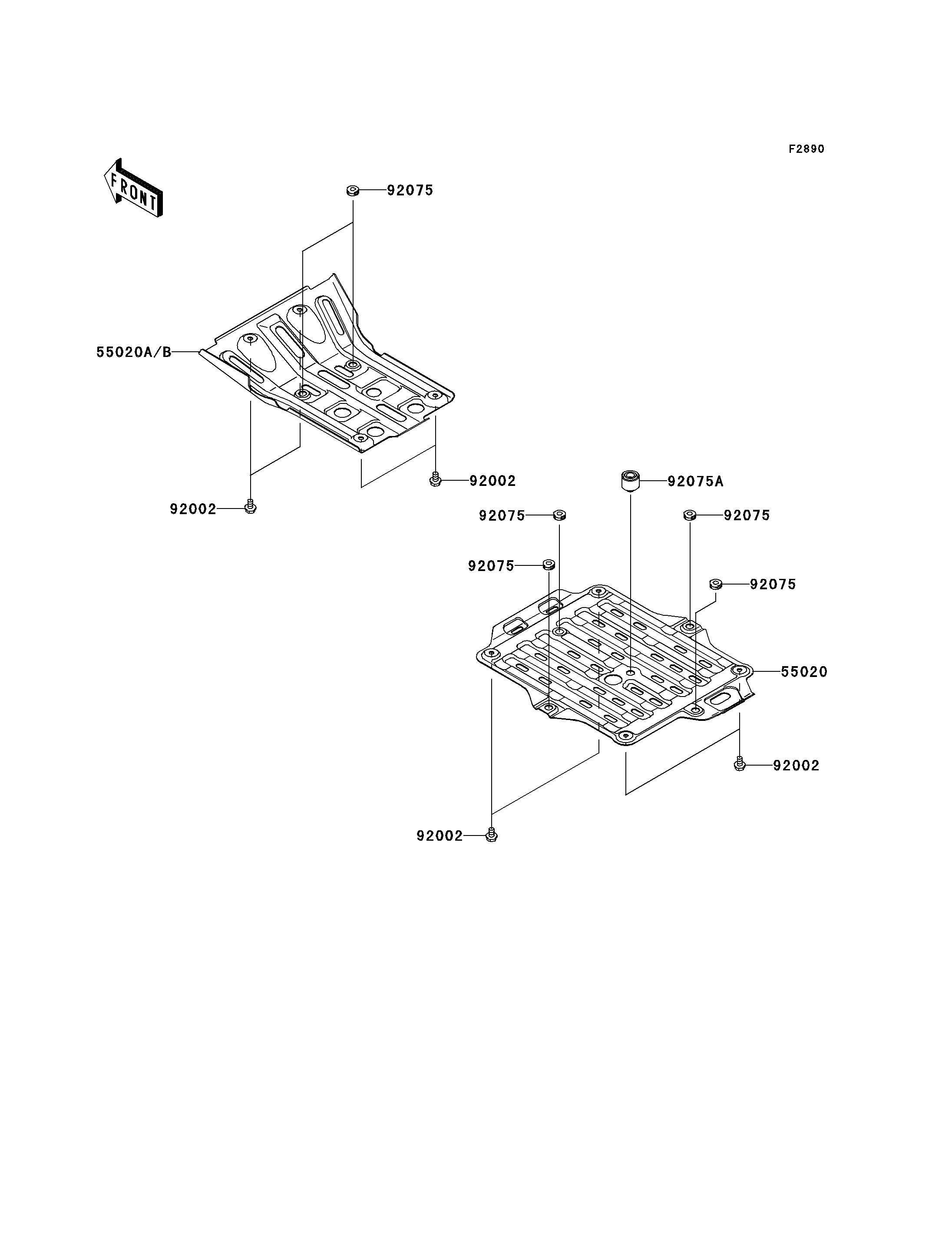

2004 Prairie 700 4x4 Hardwoods Green HD - Optional Parts(Guard)

55020
55020A
92002
92002
92002
92002
92075
92075
92075
92075
92075
92075A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUARD,ENGINE,UNDER 55020 55020-1712 1
GUARD,FRONT SKID,S.GOLD 55020A 55020-1748-UF 1
BOLT,6X10 92002 92002-1449 8
DAMPER 92075 92075-051 6
DAMPER 92075A 92075-1002 1
