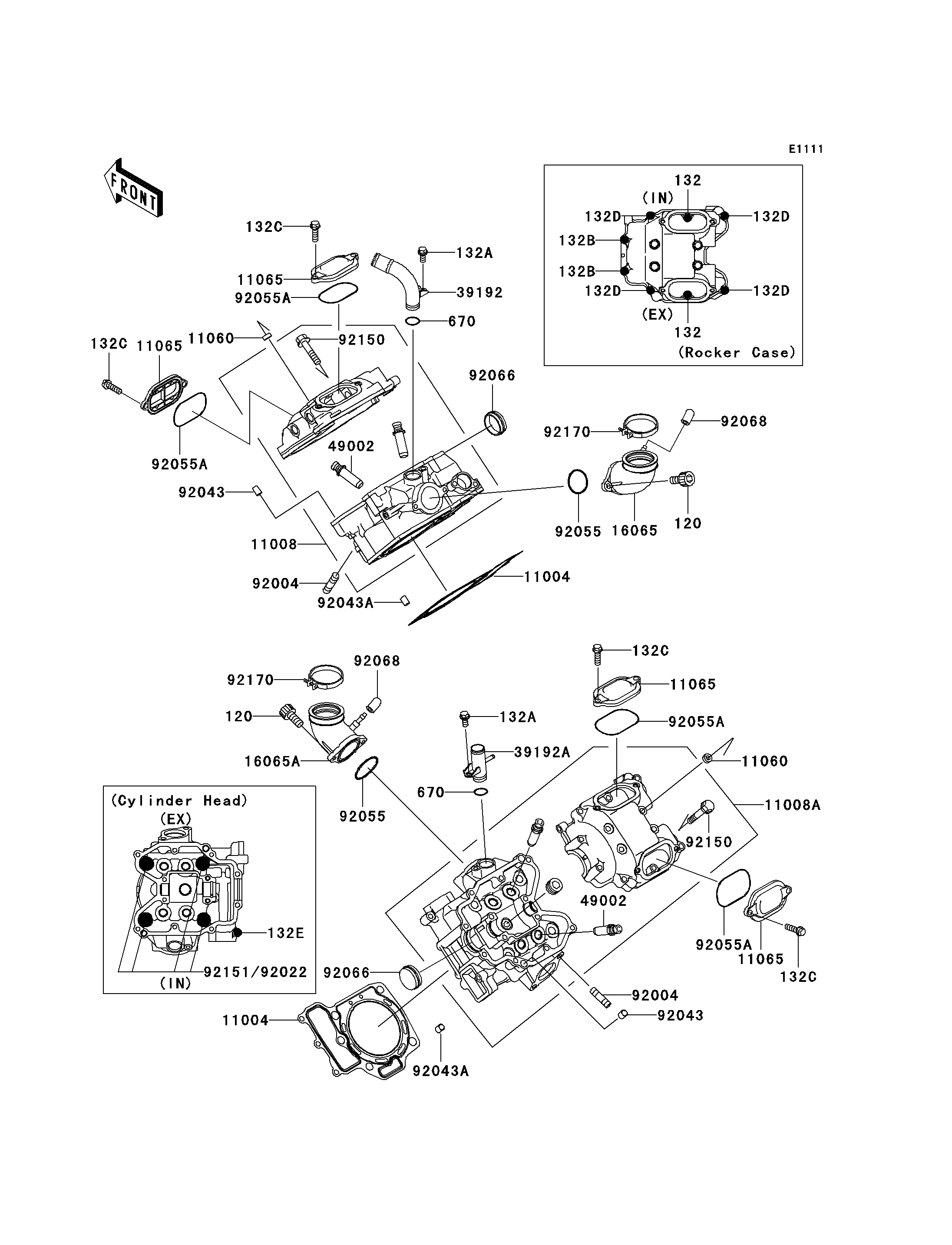

2005 Prairie 700 4x4 Team Green Special Edition - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
120
120
132
132
132A
132A
132B
132B
132C
132C
132C
132C
132D
132D
132D
132D
132E
670
670
11004
11004
11008
11008A
11060
11060
11065
11065
11065
11065
16065
16065A
39192
39192A
49002
49002
92004
92004
92022
92043
92043
92043A
92043A
92055
92055
92055A
92055A
92055A
92055A
92066
92066
92068
92068
92150
92150
92151
92170
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X20 120 120Z0620 4
BOLT-FLANGED-SMALL,6X25 132 132H0625 4
BOLT-FLANGED-SMALL,6X12 132A 132Y0612 2
BOLT-FLANGED-SMALL,6X130 132B 132Y06130 4
BOLT-FLANGED-SMALL,6X20 132C 132Y0620 8
BOLT-FLANGED-SMALL,6X30 132D 132Y0630 8
BOLT-FLANGED-SMALL,6X95 132E 132Y0695 2
O RING,16MM 670 670B2016 2
GASKET-HEAD 11004 11004-0050 2
HEAD-COMP-CYLINDER,FR 11008 11008-0030 1
HEAD-COMP-CYLINDER,RR 11008A 11008-0031 1
GASKET,6.2X12X0.3 11060 11060-1994 8
CAP,ROCKER CASE 11065 11065-1152 4
HOLDER-CARBURETOR 16065 16065-1370 1
HOLDER-CARBURETOR,RR 16065A 16065-1371 1
PIPE-WATER 39192 39192-1132 1
PIPE-WATER 39192A 39192-1133 1
GUIDE-VALVE 49002 49002-1097 AR
STUD,8X22 92004 92004-1217 4
WASHER,11.5X20.5X1.6 92022 92022-1720 8
PIN,6.2X8X14 92043 92043-1263 4
PIN,10.1X12X14 92043A 92043-4009 4
RING-O,38X1.9 92055 92055-1295 2
RING-O,55.6X2.4 92055A 92055-1644 4
PLUG 92066 92066-1289 2
PLUG,12X25 92068 92068-006 2
BOLT,FLANGED,6X55 92150 92150-1302 8
BOLT,FLANGED,10X150 92151 92151-1917 8
CLAMP 92170 92170-1722 2
