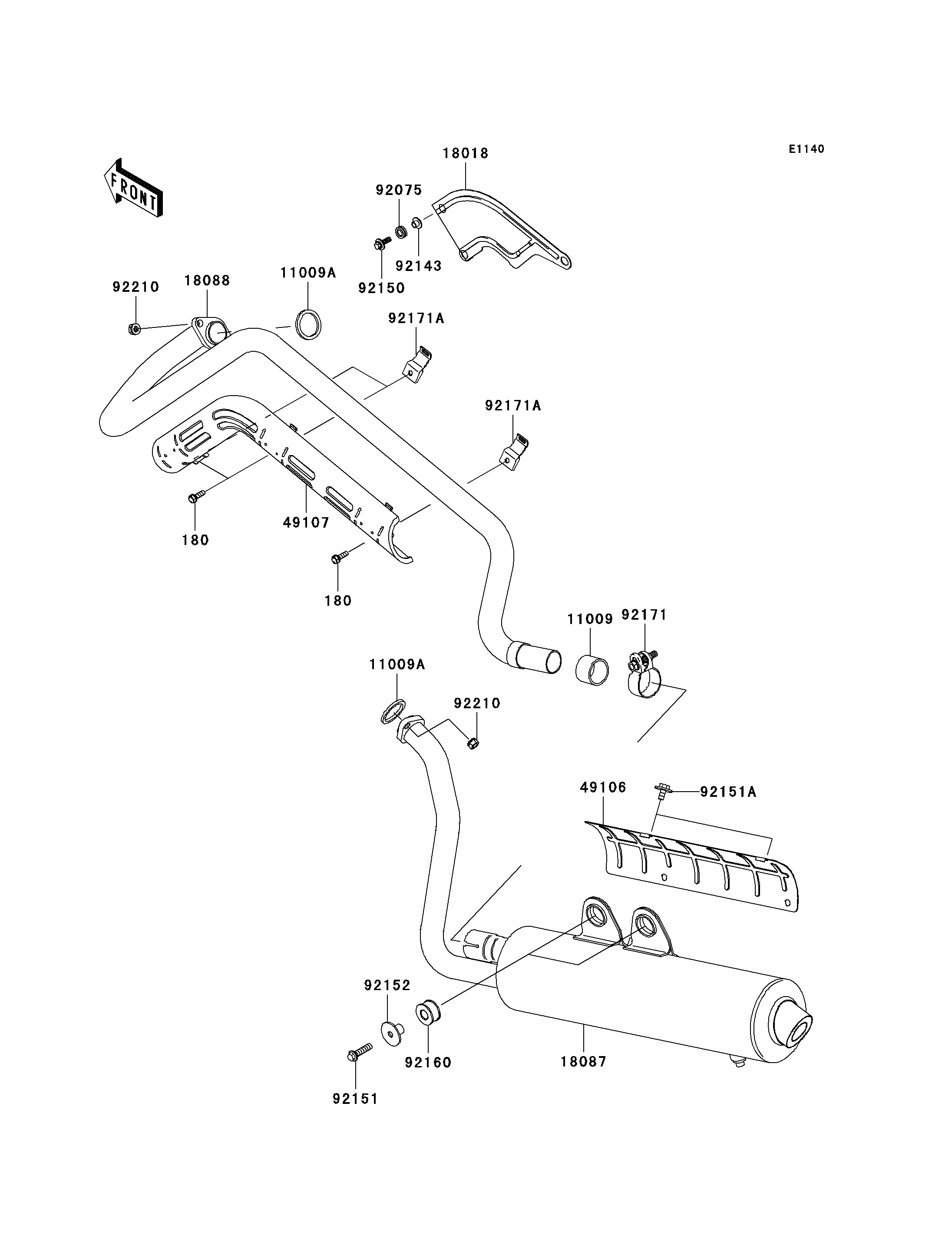

2005 Prairie 700 4x4 Team Green Special Edition - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
180
180
11009
11009A
11009A
18018
18087
18088
49106
49107
92075
92143
92150
92151
92151A
92152
92160
92171
92171A
92171A
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WS,6X20 180 180Y0620 3
GASKET,MUFFLER CONNECTING 11009 11009-1865 1
GASKET,EXHAUST HOLDER 11009A 11009-1894 2
PLATE-HEAT GUARD 18018 18018-1134 1
MUFFLER 18087 18087-0077 1
PIPE-EXHAUST 18088 18088-1140 1
COVER-MUFFLER 49106 49106-1291 1
COVER-EXHAUST PIPE 49107 49107-1210 1
DAMPER 92075 92075-1947 3
COLLAR 92143 92143-1057 3
BOLT,FLANGED,6X20 92150 92150-1633 3
BOLT,8X32 92151 92151-1446 2
BOLT,UPSET-WP,6X12 92151A 92151-1944 4
COLLAR,MUFFLER 92152 92152-1152 2
DAMPER,MUFFLER 92160 92160-1990 2
CLAMP 92171 92171-1330 1
CLAMP 92171A 92171-1357 3
NUT,8MM 92210 92210-1242 4
