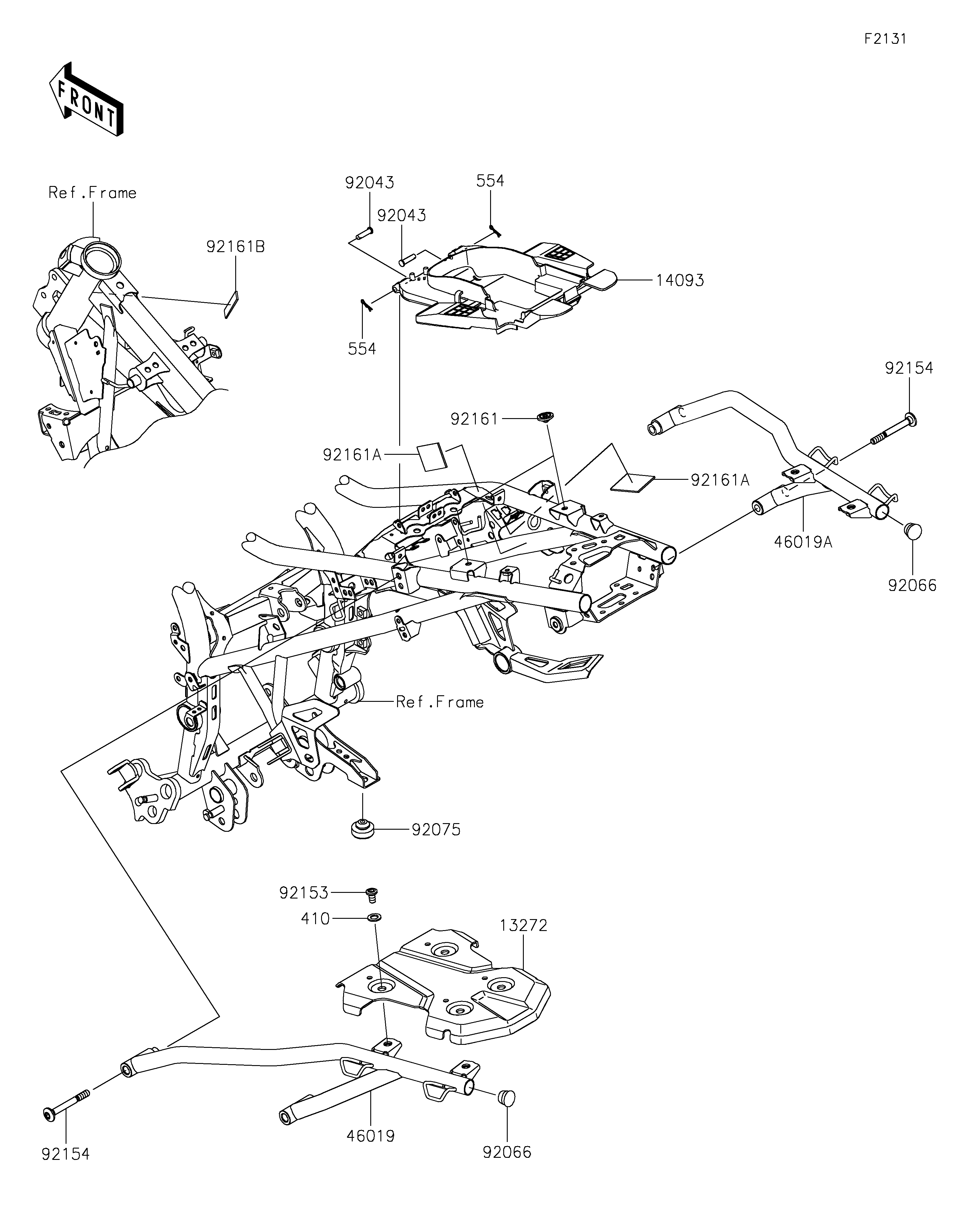

2020 VERSYS®-X 300 - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
13272
14093
410
46019
46019A
554
554
92043
92043
92066
92066
92075
92153
92154
92154
92161
92161A
92161A
92161B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE 13272 13272-2247 1
COVER,TOOL 14093 14093-0694 1
WASHER-PLAIN-SMALL,10MM 410 410AA1000 4
GRIP-ASSY,LH,F.S.BLACK 46019 46019-0070-18R 1
GRIP-ASSY,RH,F.S.BLACK 46019A 46019-0071-18R 1
PIN-SNAP,1.2X21.2 554 554DA0600 2
PIN,6X23 92043 92043-0746 2
PLUG 92066 92066-1220 2
DAMPER 92075 92075-1045 1
BOLT,SOCKET,8X15 92153 92153-1810 4
BOLT,SOCKET,8X73 92154 92154-2339 4
DAMPER,8X22X10 92161 92161-1685 2
DAMPER 92161A 92161-1883 2
DAMPER,13X48X2 92161B 92161-1972 1
