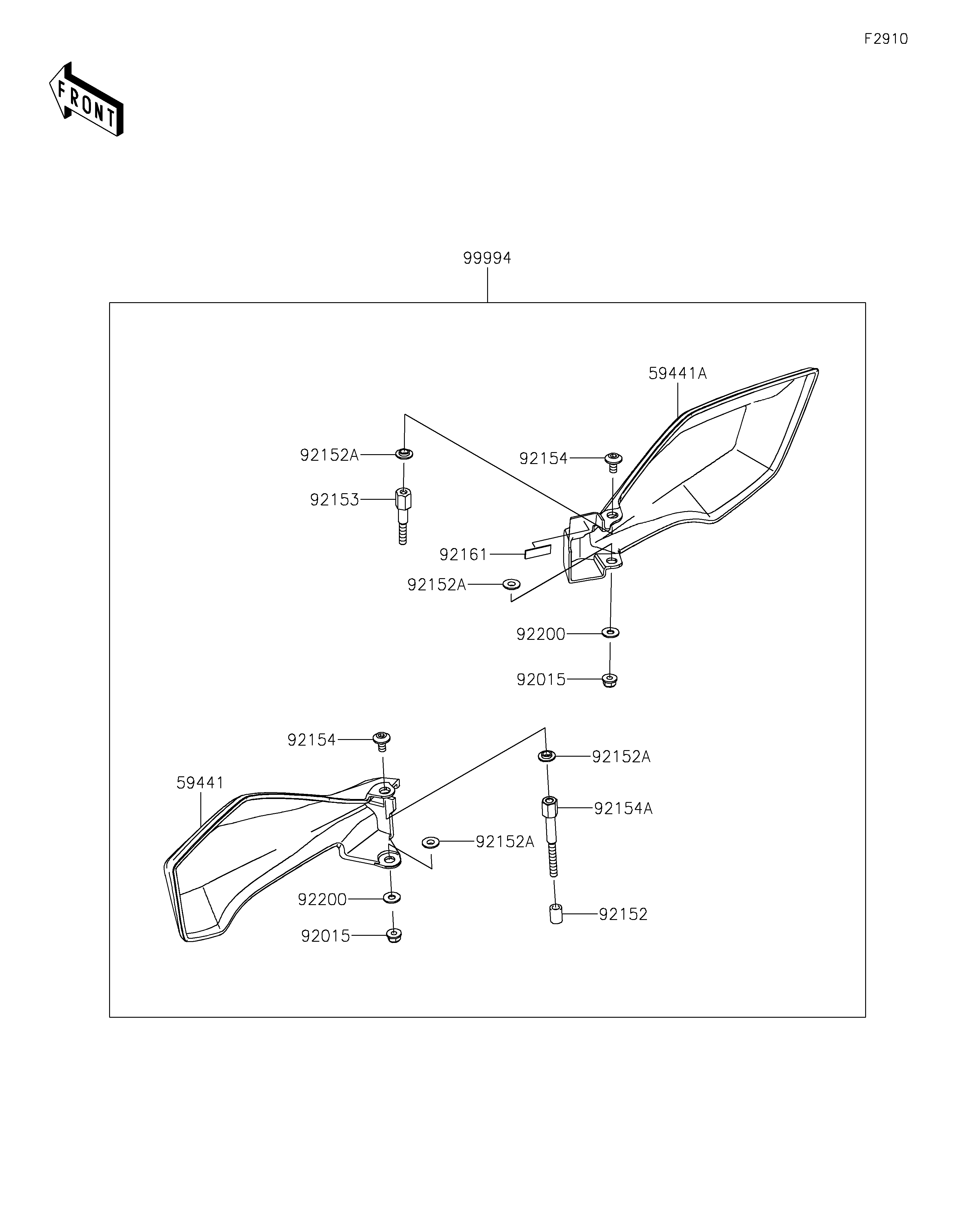

2020 VERSYS®-X 300 - Accessory(Hand Guard)

DOWNLOAD PDF
SELECT A NEW PART
59441
59441A
92015
92015
92152
92152A
92152A
92152A
92152A
92153
92154
92154
92154A
92161
92200
92200
99994
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-HANDLE,LH 59441 59441-0043 1
COVER-HANDLE,RH 59441A 59441-0044 1
NUT,LOCK,FLANGED,6MM 92015 92015-1603 2
COLLAR,6.5X10.5X14 92152 92152-2302 1
COLLAR,6.5X15X3.4 92152A 92152-2314 4
BOLT,LEVER SET 92153 92153-0790 1
BOLT,SOCKET,6X12 92154 92154-0951 2
BOLT 92154A 92154-2359 1
DAMPER,10X30X1 92161 92161-1985 1
WASHER,6.2X15X1.2 92200 92200-1762 2
KIT-ACCESSORY,HAND GUARD 99994 99994-0992 1
