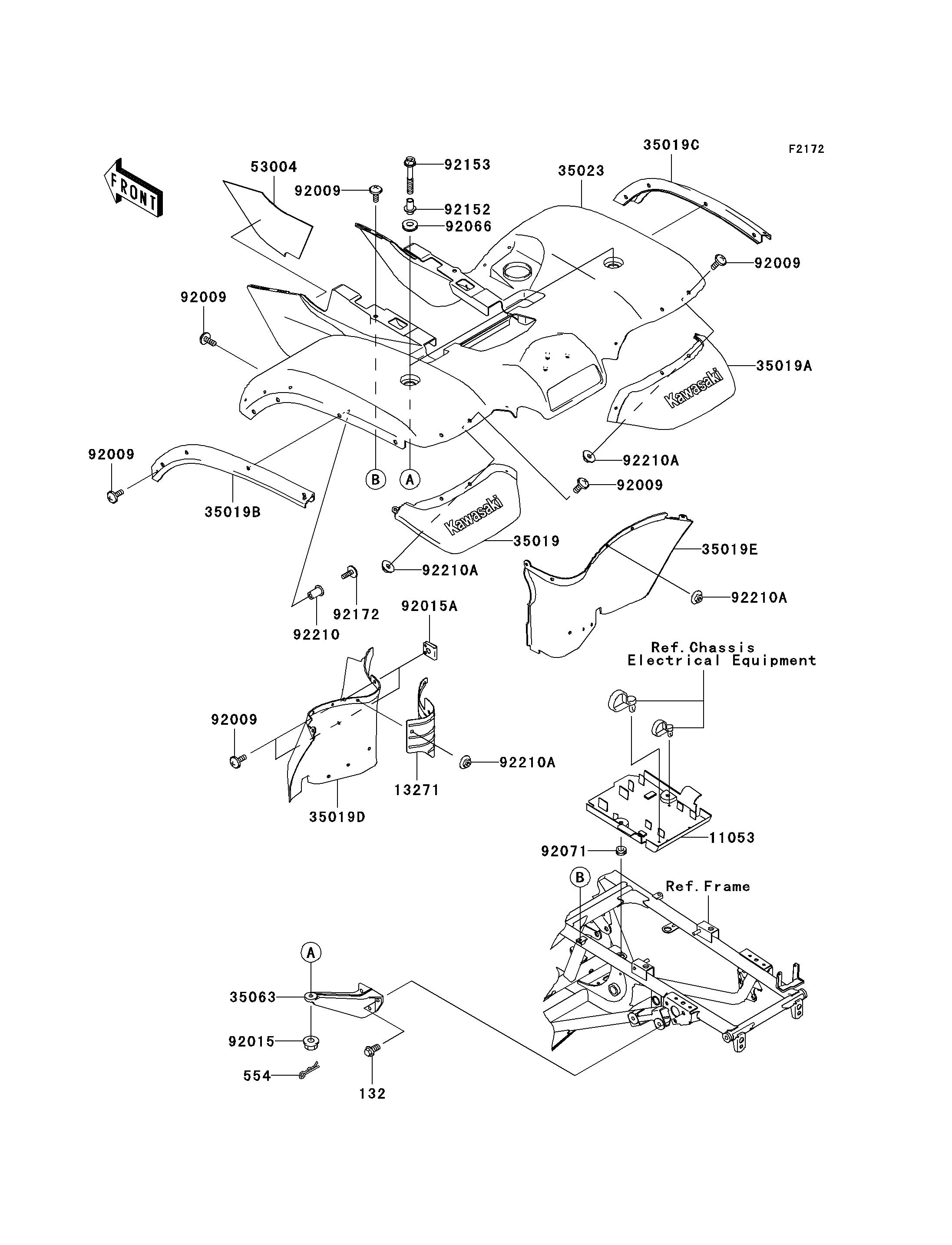

2005 Prairie 700 4x4 Team Green Special Edition - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
132
554
11053
13271
35019
35019A
35019B
35019C
35019D
35019E
35023
35063
53004
92009
92009
92009
92009
92009
92009
92015
92015A
92066
92071
92152
92153
92172
92210
92210A
92210A
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,8X18 132 132J0818 6
PIN-SNAP,8MM 554 554A0800 2
BRACKET,ELECTRIC 11053 11053-1308 1
PLATE,HEAT GUARD 13271 13271-1718 1
FLAP,RR,RR,LH,F.BLACK 35019 35019-1371-6Z 1
FLAP,RR,RR,RH,F.BLACK 35019A 35019-1372-6Z 1
FLAP,RR,SIDE,LH,F.BLACK 35019B 35019-1373-6Z 1
FLAP,RR,SIDE,RH,F.BLACK 35019C 35019-1374-6Z 1
FLAP,RR,FR,LH,F.BLACK 35019D 35019-1393-6Z 1
FLAP,RR,FR,RH,F.BLACK 35019E 35019-1394-6Z 1
FENDER-REAR,L.GREEN 35023 35023-1565-290 1
STAY,RR FENDER 35063 35063-1100 2
MAT,RR FENDER 53004 53004-1170 1
SCREW,6X16 92009 92009-1621 23
NUT,LOCK,FLANGED,8MM 92015 92015-1397 2
NUT,CLAMP,6MM 92015A 92015-1678 2
PLUG 92066 92066-1438 2
GROMMET 92071 92071-1131 2
COLLAR,L=38.5 92152 92152-0098 2
BOLT,FLANGED,8X68 92153 92153-0326 2
SCREW,5X18 92172 92172-1063 8
NUT,POP,5MM 92210 92210-0012 8
NUT,6MM 92210A 92210-1368 19
