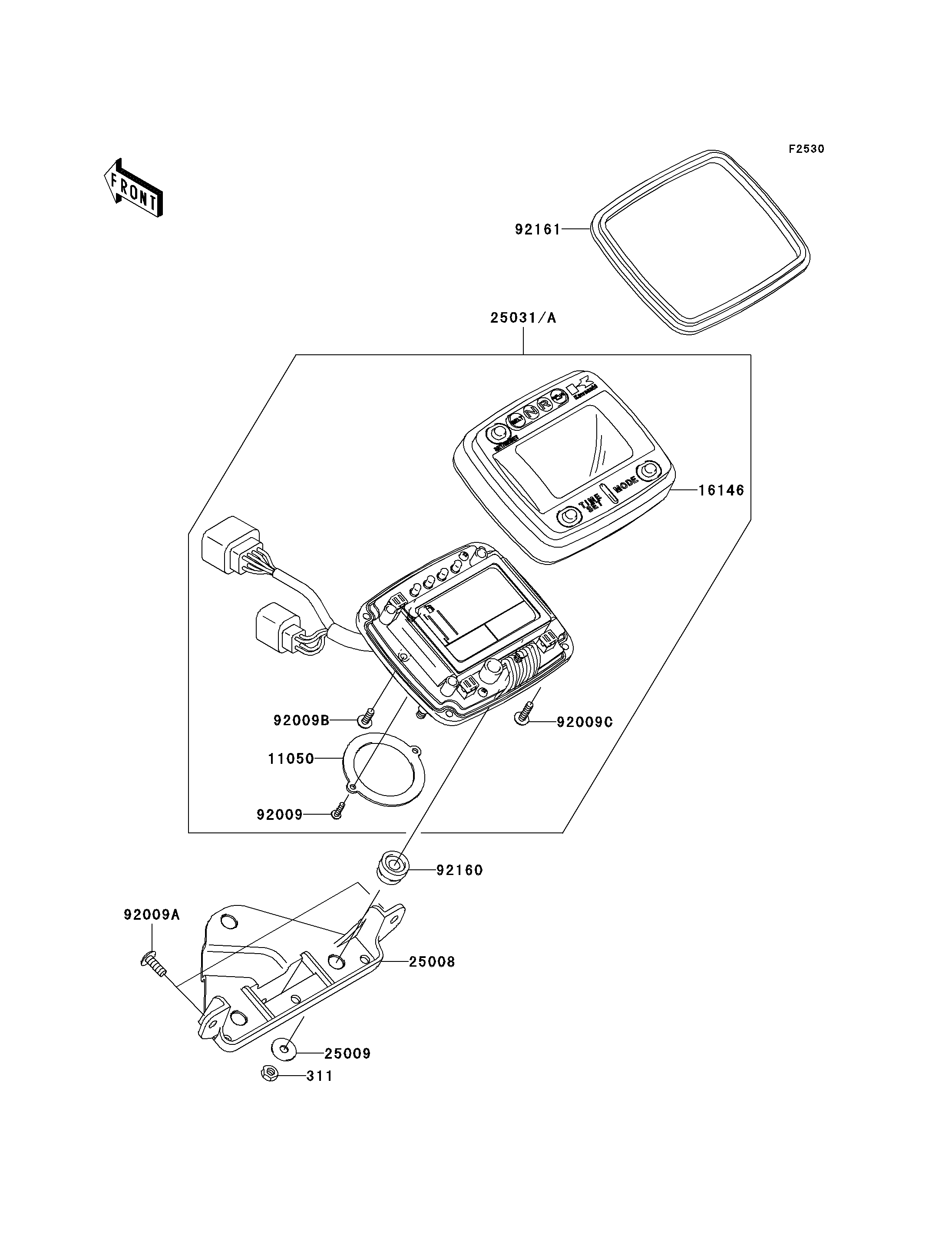

2005 Prairie 700 4x4 Team Green Special Edition - Meter(s)

311
11050
16146
25008
25009
92009
92009A
92009B
92009C
92160
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX 311 311C0500 3
BRACKET,METER 11050 11050-1932 1
COVER-ASSY,UPPER 16146 16146-0011 1
BRACKET-METER 25008 25008-1226 1
WASHER,5.2X16X1.2 25009 25009-004 3
SCREW,TAPPING,3X12 92009 92009-1028 2
SCREW,TAPPING,5X14 92009A 92009-1197 2
SCREW,TAPPING,4X12 92009B 92009-1254 1
SCREW,6X18 92009C 92009-1663 4
DAMPER 92160 92160-1460 3
DAMPER,METER,UPP 92161 92161-1114 1
METER-ASSY,MPH 25031 25031-0025 1 US
METER-ASSY,KPH 25031A 25031-0026 1 CN
