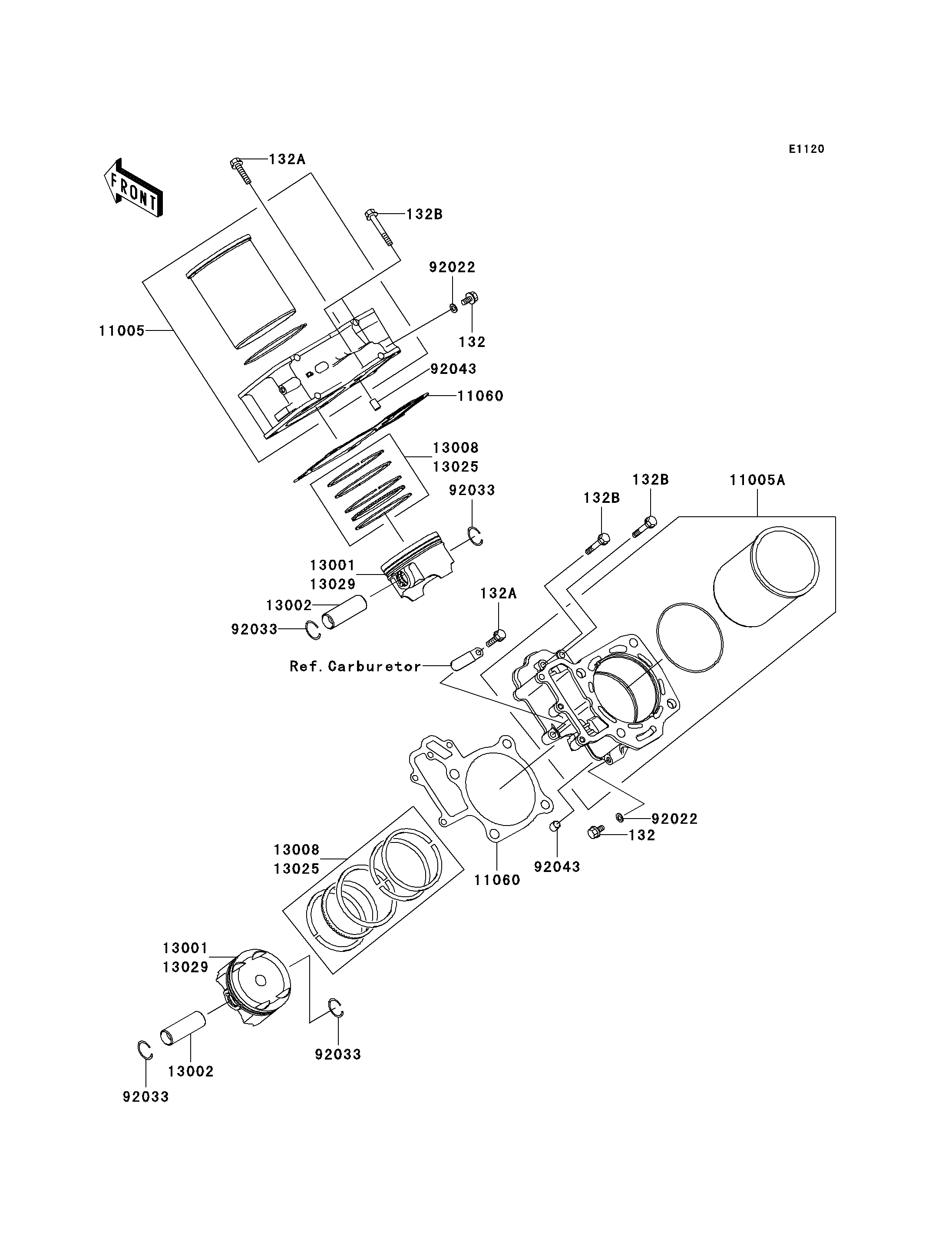

2006 Prairie 700 4x4 Team Green Special Edition - Cylinder/Piston(s)

DOWNLOAD PDF
SELECT A NEW PART
132
132
132A
132A
132B
132B
132B
11005
11005A
11060
11060
13001
13001
13002
13002
13008
13008
13025
13025
13029
13029
92022
92022
92033
92033
92033
92033
92043
92043
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X12 132 132Y0612 2
BOLT-FLANGED-SMALL,6X30 132A 132Y0630 2
BOLT-FLANGED-SMALL,6X40 132B 132Y0640 4
CYLINDER-ENGINE,FR 11005 11005-1990 1
CYLINDER-ENGINE,RR 11005A 11005-1992 1
GASKET,CYLINDER BASE 11060 11060-1965 2
PISTON-ENGINE,STD 13001 13001-1658 2
PIN-PISTON 13002 13002-1060 2
RING-SET-PISTON,STD 13008 13008-1215 2
RING-SET-PISTON L,O/S 0.50 13025 13025-0005 AR
PISTON-ENGINE L,O/S 0.50 13029 13029-0007 AR
WASHER,6.2X11X1 92022 92022-304 2
RING-SNAP 92033 92033-1207 4
PIN,10.1X12X14 92043 92043-4009 4
