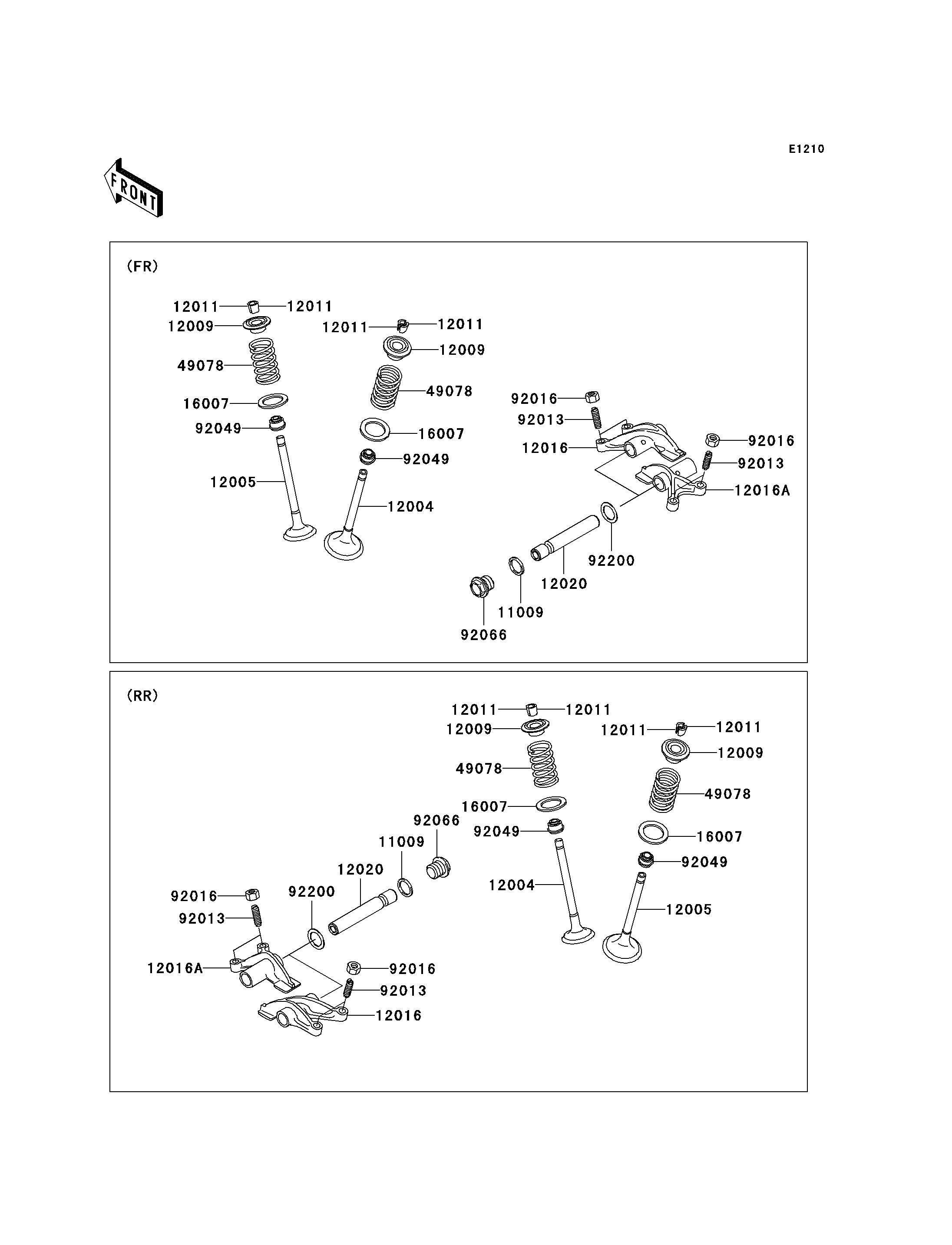

2006 Prairie 700 4x4 Team Green Special Edition - Valve(s)
11009
11009
12004
12004
12005
12005
12009
12009
12009
12009
12011
12011
12011
12011
12011
12011
12011
12011
12016
12016
12016A
12016A
12020
12020
16007
16007
16007
16007
49078
49078
49078
49078
92013
92013
92013
92013
92016
92016
92016
92016
92049
92049
92049
92049
92066
92066
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,14X18X1.5 | 11009 | 11009-1430 | 4 | ||
| VALVE-INTAKE | 12004 | 12004-0007 | 4 | ||
| VALVE-EXHAUST | 12005 | 12005-0016 | 4 | ||
| RETAINER-VALVE SPRING | 12009 | 12009-1056 | 8 | ||
| COLLET | 12011 | 12011-1051 | 16 | ||
| ARM-ROCKER,EXHAUST | 12016 | 12016-1128 | 2 | ||
| ARM-ROCKER,INTAKE | 12016A | 12016-1129 | 2 | ||
| SHAFT-ROCKER | 12020 | 12020-0004 | 4 | ||
| SEAT-SPRING,17.5X23.8X0.5 | 16007 | 16007-1178 | 8 | ||
| SPRING-ENGINE VALVE | 49078 | 49078-0014 | 8 | ||
| SCREW,6MM | 92013 | 92013-009 | 8 | ||
| NUT,6MM | 92016 | 92016-061 | 8 | ||
| SEAL-OIL,VSB58.558 | 92049 | 92049-1218 | 8 | ||
| PLUG,DRAIN | 92066 | 92066-2196 | 4 | ||
| WASHER,13X17X0.3 | 92200 | 92200-1508 | 4 |
| GASKET,14X18X1.5 | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| VALVE-INTAKE | |
| REF # | 12004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| VALVE-EXHAUST | |
| REF # | 12005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RETAINER-VALVE SPRING | |
| REF # | 12009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| COLLET | |
| REF # | 12011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 16 |
| DESTINATION | |
| REMARKS | |
| ARM-ROCKER,EXHAUST | |
| REF # | 12016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| ARM-ROCKER,INTAKE | |
| REF # | 12016A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SHAFT-ROCKER | |
| REF # | 12020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SEAT-SPRING,17.5X23.8X0.5 | |
| REF # | 16007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| SPRING-ENGINE VALVE | |
| REF # | 49078 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| SCREW,6MM | |
| REF # | 92013 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM | |
| REF # | 92016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,VSB58.558 | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| PLUG,DRAIN | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,13X17X0.3 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
