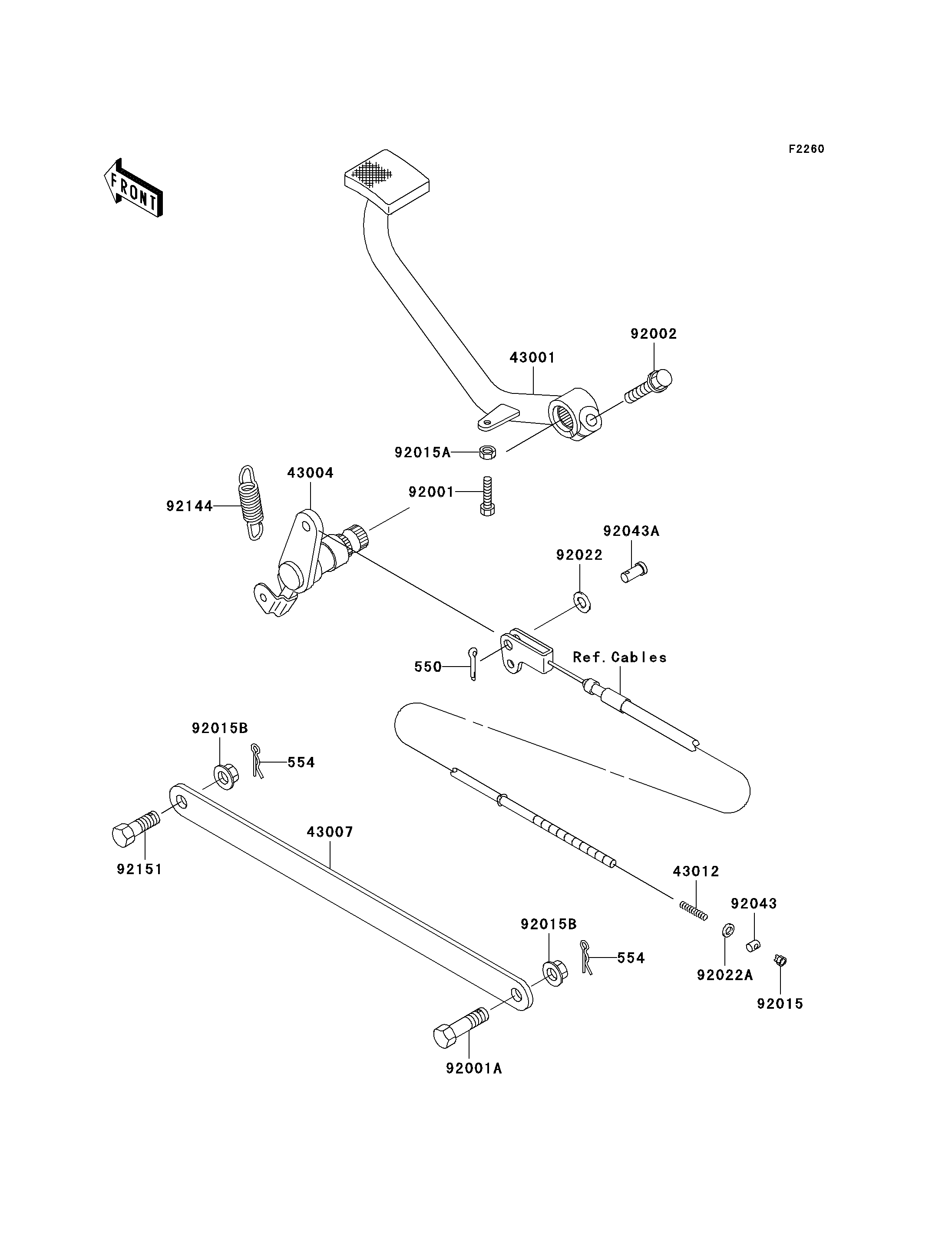

2009 Vulcan® 500 LTD - Brake Pedal/Torque Link
550
554
554
43001
43004
43007
43012
92001
92001A
92002
92015
92015A
92015B
92015B
92022
92022A
92043
92043A
92144
92151
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
PIN-COTTER,2.0X15 | 550 | 550AA2015 | 1 | ||
PIN-SNAP | 554 | 554DA0800 | 2 | ||
LEVER-BRAKE,PEDAL | 43001 | 43001-1365 | 1 | ||
SHAFT-BRAKE | 43004 | 43004-1132 | 1 | ||
ROD-TORQUE | 43007 | 43007-1112 | 1 | ||
SPRING,BRAKE ROD | 43012 | 43012-001 | 1 | ||
BOLT,6X25 | 92001 | 92001-1090 | 1 | ||
BOLT,10X37 | 92001A | 92001-1519 | 1 | ||
BOLT,FLANGED,8X25 | 92002 | 92002-1201 | 1 | ||
NUT,BRAKE ROD | 92015 | 92015-042 | 1 | ||
NUT,6MM | 92015A | 92015-1391 | 1 | ||
NUT,FLANGED,10MM | 92015B | 92015-1428 | 2 | ||
WASHER,8.5X16X1.2 | 92022 | 92022-1582 | 1 | ||
WASHER,6.3X10.2X1.6 | 92022A | 92022-1588 | 1 | ||
PIN,BRAKE ROD | 92043 | 92043-065 | 1 | ||
PIN,8X16 | 92043A | 92043-1013 | 1 | ||
SPRING,BRAKE PEDAL RETURN | 92144 | 92144-1053 | 1 | ||
BOLT,10X29 | 92151 | 92151-1876 | 1 |
PIN-COTTER,2.0X15 | |
REF # | 550 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN-SNAP | |
REF # | 554 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
LEVER-BRAKE,PEDAL | |
REF # | 43001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-BRAKE | |
REF # | 43004 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-TORQUE | |
REF # | 43007 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,BRAKE ROD | |
REF # | 43012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X25 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,10X37 | |
REF # | 92001A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,8X25 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,BRAKE ROD | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,6MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,FLANGED,10MM | |
REF # | 92015B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,8.5X16X1.2 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,6.3X10.2X1.6 | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,BRAKE ROD | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,8X16 | |
REF # | 92043A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,BRAKE PEDAL RETURN | |
REF # | 92144 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,10X29 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
