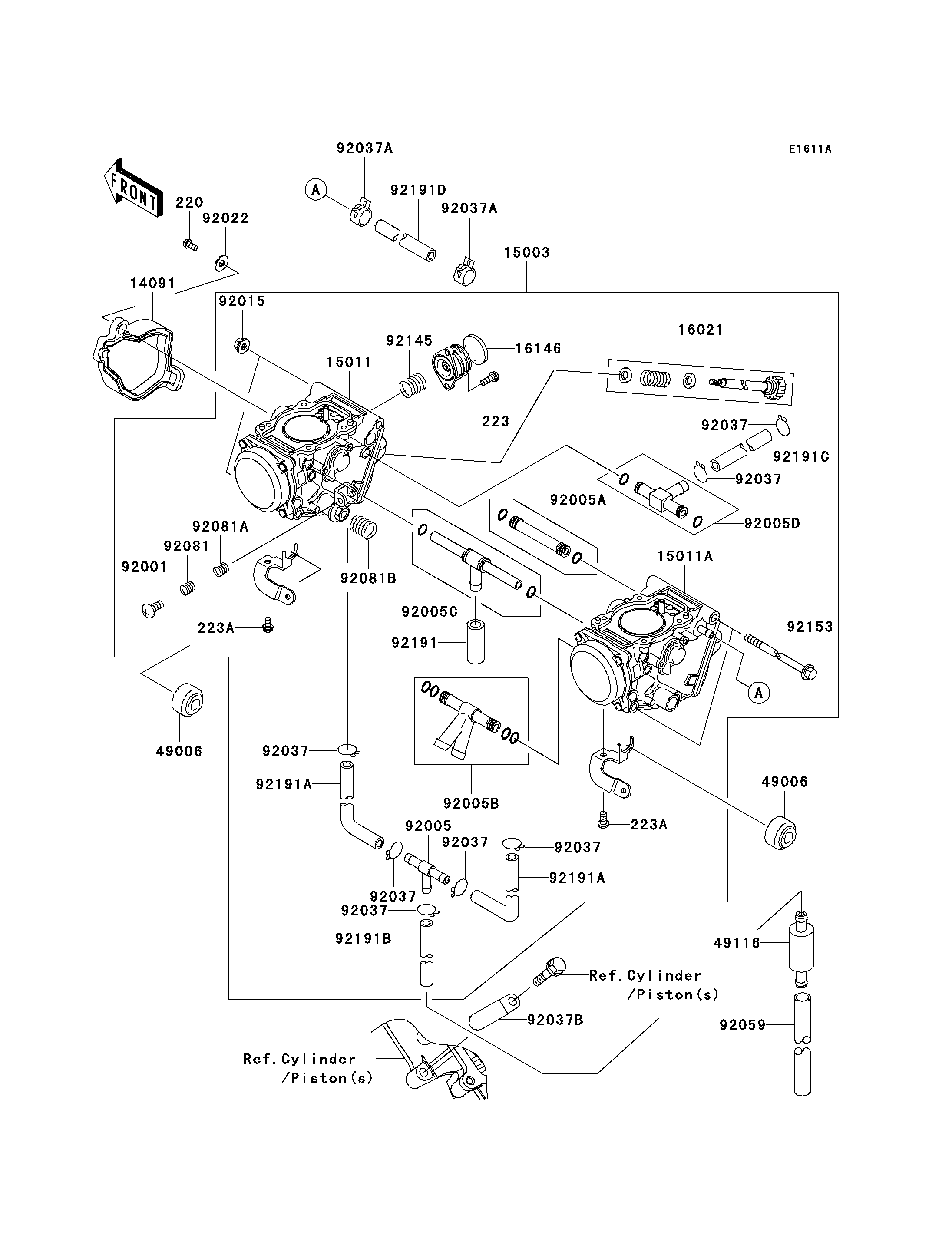

2006 Prairie 700 4x4 Team Green Special Edition - Carburetor(CN)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,THROTTLE CABLE 14091 14091-1196 1 CN
CARBURETOR-ASSY,PRIMARY PUMP 15003 15003-0007 1 CN
CARBURETOR,FR 15011 15011-0019 1 CN
CARBURETOR,RR 15011A 15011-0020 1 CN
SCREW-THROTTLE STOP 16021 16021-1238 1 CN
COVER-ASSY,PRIMING 16146 16146-1225 1 CN
BOOT,STARTER CABLE 49006 49006-1353 2 CN
VALVE-ASSY 49116 49116-1126 1 CN
BOLT,THROTTLE ADJUST 92001 92001-1998 1 CN
FITTING,FUEL,T-TYPE 92005 92005-1112 1 CN
FITTING 92005A 92005-1375 1 CN
FITTING 92005B 92005-1376 1 CN
FITTING 92005C 92005-1385 1 CN
FITTING 92005D 92005-1393 1 CN
NUT,FLANGED,5MM 92015 92015-1259 2 CN
WASHER,5.2X13X1 92022 92022-1380 1 CN
CLAMP,TUBE 92037 92037-1201 7 CN
CLAMP,TUBE 92037A 92037-1505 2 CN
CLAMP,L=45 92037B 92037-1539 1 CN
TUBE,7X10X100 92059 92059-1736 1 CN
SPRING 92081 92081-1620 1 CN
SPRING,THROTTLE ADJUST LWR 92081A 92081-1621 1 CN
SCREW-PAN-CROS,4X8 220 220B0408 1 CN
SCREW-PAN-WS-CROS,4X12 223 223C0412 2 CN
SCREW-PAN-WS-CROS,4X8 223A 223D0408 2 CN
SPRING,THROTTLE ADJUST CNT 92081B 92081-1622 1 CN
SPRING,PRIMING 92145 92145-1451 1 CN
BOLT,5X143 92153 92153-1068 2 CN
TUBE,7X11X25 92191 92191-1672 1 CN
TUBE,4.5X8X65 92191A 92191-1673 2 CN
TUBE,4.5X8X420 92191B 92191-1674 1 CN
TUBE,4.5X8.5X35 92191C 92191-1676 1 CN
TUBE,5.3X10.3X200 92191D 92191-1694 1 CN
