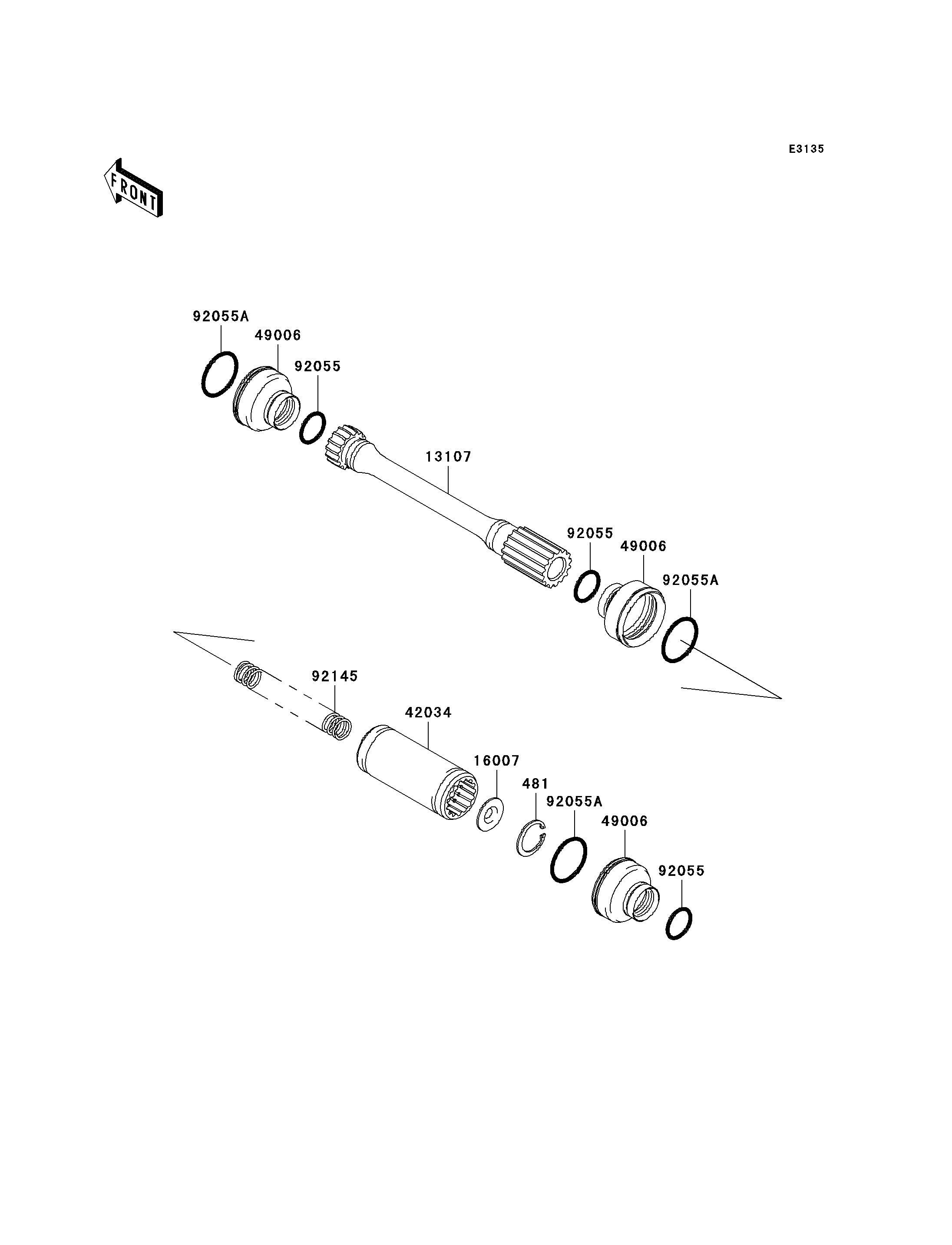

2006 Prairie 700 4x4 Team Green Special Edition - Drive Shaft-Propeller

481
13107
16007
42034
49006
49006
49006
92055
92055
92055
92055A
92055A
92055A
92145
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-C,25MM 481 481J2500 1
SHAFT,FR PROPELLER SHAFT 13107 13107-1505 1
SEAT-SPRING,PROPELLER SHAFT 16007 16007-1205 1
COUPLING,PROPELLER 42034 42034-1193 1
BOOT 49006 49006-1362 3
RING-O,18X24X3 92055 92055-1633 3
RING-O,30X35X2.5 92055A 92055-1693 3
SPRING,PROPELLER SHAFT 92145 92145-1304 1
