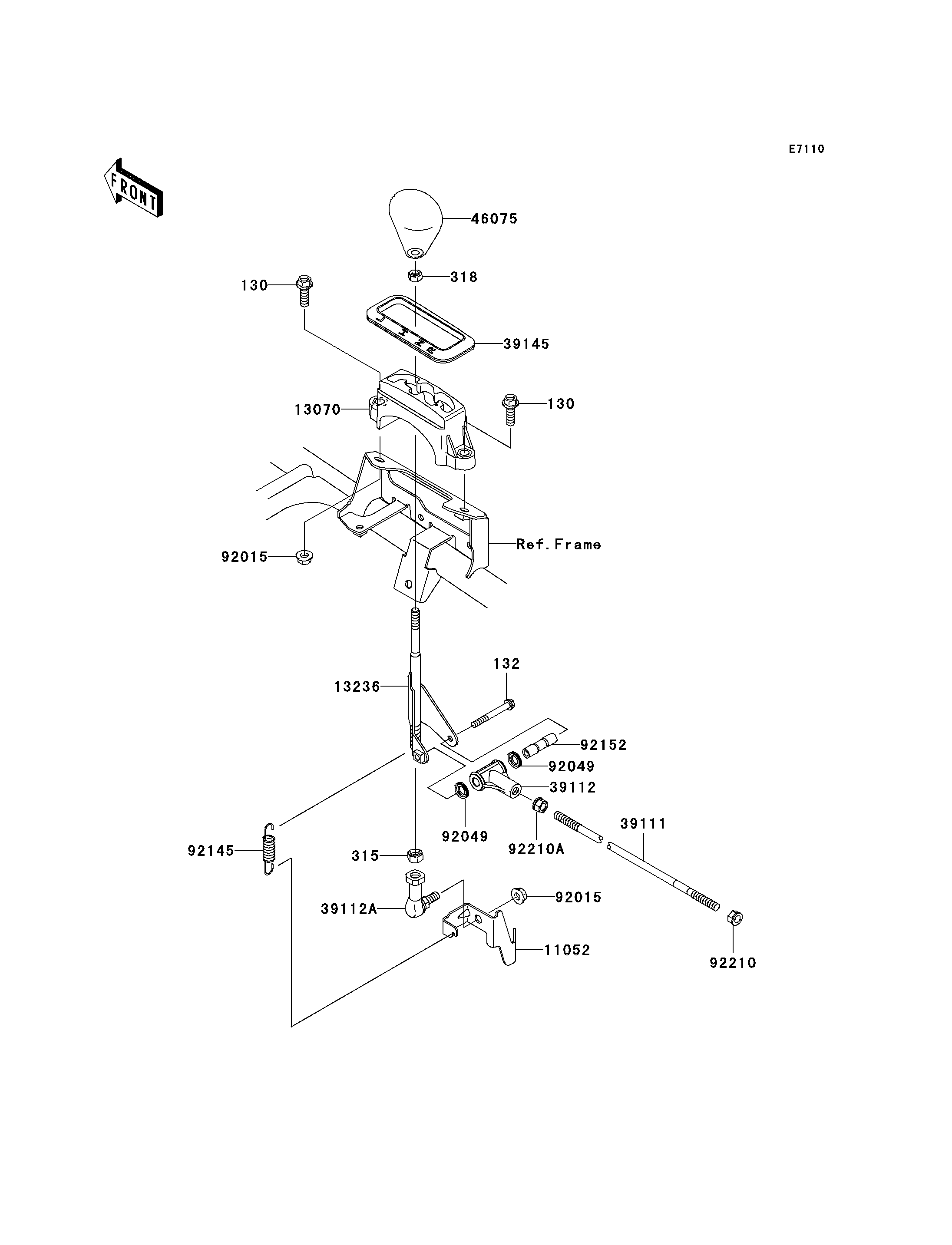

2006 Prairie 700 4x4 Team Green Special Edition - Control
130
130
132
315
318
11052
13070
13236
39111
39112
39112A
39145
46075
92015
92015
92049
92049
92145
92152
92210
92210A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,8X25 | 130 | 130Z0825 | 2 | ||
BOLT-FLANGED-SMALL,6X50 | 132 | 132J0650 | 1 | ||
NUT-HEX-FINE,10MM | 315 | 315B1000 | 1 | ||
NUT-HEX-SMALL,8MM | 318 | 318G0800 | 1 | ||
BRACKET,CONTROL | 11052 | 11052-1441 | 1 | ||
GUIDE,CONTROL SHAFT | 13070 | 13070-1396 | 1 | ||
LEVER-COMP,SHIFT | 13236 | 13236-1384 | 1 | ||
ROD-TIE,SHIFT | 39111 | 39111-1174 | 1 | ||
RODEND-TIE | 39112 | 39112-1079 | 1 | ||
RODEND-TIE,CONTROL PIVOT | 39112A | 39112-1084 | 1 | ||
TRIM-SEAL,CONTROL GUIDE | 39145 | 39145-1121 | 1 | ||
GRIP,SHIFT | 46075 | 46075-1185 | 1 | ||
NUT,8MM | 92015 | 92015-1432 | 2 | ||
SEAL-OIL | 92049 | 92049-1458 | 2 | ||
SPRING,CONTROL | 92145 | 92145-1441 | 1 | ||
COLLAR,RODEND-TIE | 92152 | 92152-1222 | 1 | ||
NUT,8MM | 92210 | 92210-1242 | 1 | ||
NUT,LH,THREAD 8MM | 92210A | 92210-1284 | 1 |
BOLT-FLANGED,8X25 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL,6X50 | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT-HEX-FINE,10MM | |
REF # | 315 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT-HEX-SMALL,8MM | |
REF # | 318 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,CONTROL | |
REF # | 11052 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE,CONTROL SHAFT | |
REF # | 13070 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-COMP,SHIFT | |
REF # | 13236 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-TIE,SHIFT | |
REF # | 39111 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RODEND-TIE | |
REF # | 39112 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RODEND-TIE,CONTROL PIVOT | |
REF # | 39112A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TRIM-SEAL,CONTROL GUIDE | |
REF # | 39145 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GRIP,SHIFT | |
REF # | 46075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,8MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL-OIL | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING,CONTROL | |
REF # | 92145 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,RODEND-TIE | |
REF # | 92152 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,8MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,LH,THREAD 8MM | |
REF # | 92210A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
