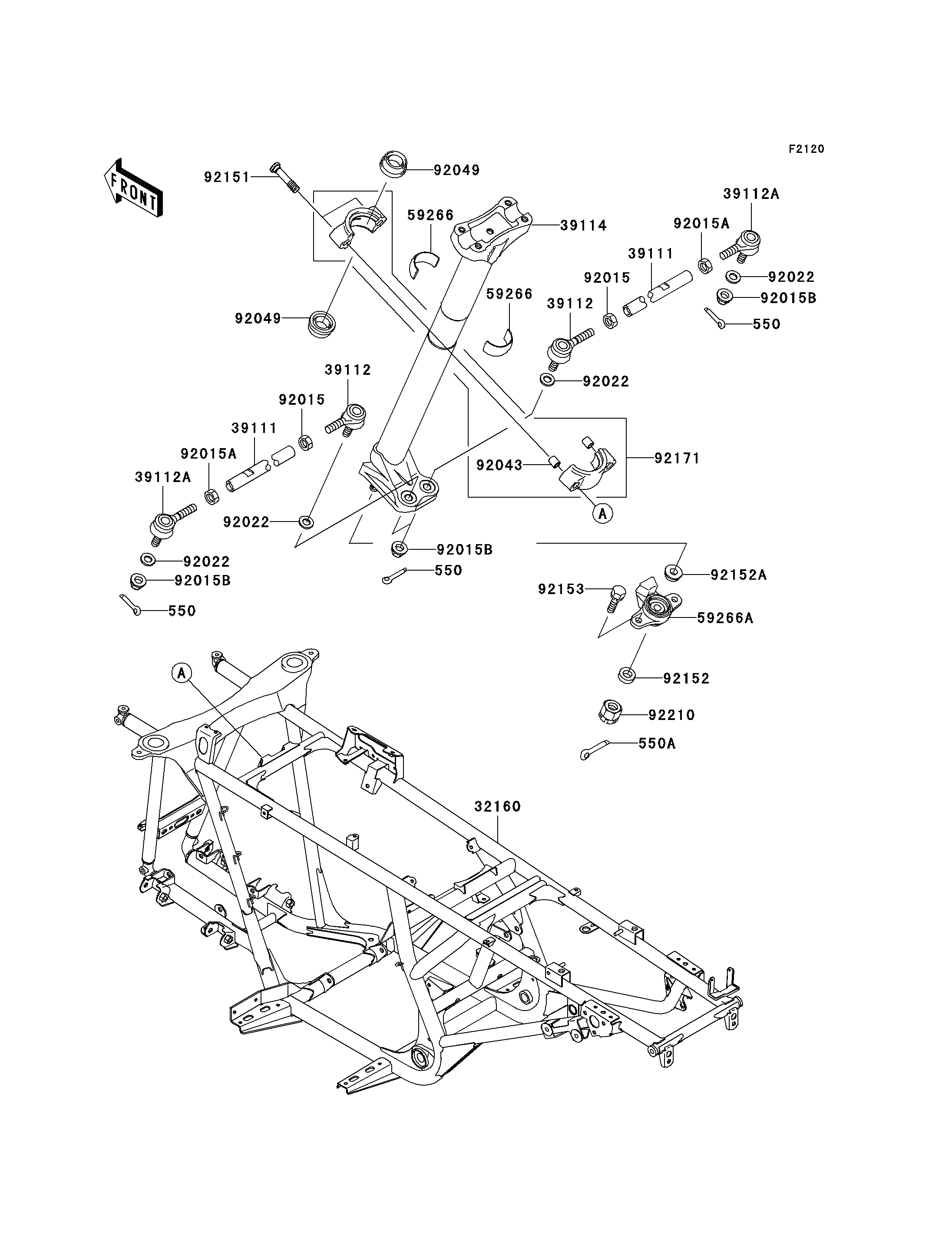

2006 Prairie 700 4x4 Team Green Special Edition - Frame
550
550
550
550A
32160
39111
39111
39112
39112
39112A
39112A
39114
59266
59266
59266A
92015
92015
92015A
92015A
92015B
92015B
92015B
92022
92022
92022
92022
92043
92049
92049
92151
92152
92152A
92153
92171
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
PIN-COTTER,2.0X15 | 550 | 550D2015 | 4 | ||
PIN-COTTER,3.0X25 | 550A | 550D3025 | 1 | ||
FRAME-COMP | 32160 | 32160-0002 | 1 | ||
ROD-TIE | 39111 | 39111-1090 | 2 | ||
RODEND-TIE | 39112 | 39112-1083 | 2 | ||
RODEND-TIE | 39112A | 39112-1085 | 2 | ||
SHAFT-COMP-STRG | 39114 | 39114-1090 | 1 | ||
JOINT-BALL | 59266 | 59266-1117 | 2 | ||
JOINT-BALL | 59266A | 59266-1125 | 1 | ||
NUT,LOCK,10MM | 92015 | 92015-1460 | 2 | ||
NUT,LOCK,10MM | 92015A | 92015-1494 | 2 | ||
NUT,LOCK,FLANGED,10MM | 92015B | 92015-1717 | 4 | ||
WASHER,10.2X20X1.5 | 92022 | 92022-3742 | 4 | ||
PIN,8.2X10X14 | 92043 | 92043-1264 | 2 | ||
SEAL-OIL,SR7 39.6X49X6-2 NS | 92049 | 92049-1580 | 2 | ||
BOLT,8X53 | 92151 | 92151-1711 | 2 | ||
COLLAR,12X21.3X7 | 92152 | 92152-1351 | 1 | ||
COLLAR | 92152A | 92152-1358 | 1 | ||
BOLT,8X30 | 92153 | 92153-1065 | 2 | ||
CLAMP,STEERING SHAFT | 92171 | 92171-1449 | 1 | ||
NUT,12MM | 92210 | 92210-7501 | 1 |
PIN-COTTER,2.0X15 | |
REF # | 550 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PIN-COTTER,3.0X25 | |
REF # | 550A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FRAME-COMP | |
REF # | 32160 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-TIE | |
REF # | 39111 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RODEND-TIE | |
REF # | 39112 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RODEND-TIE | |
REF # | 39112A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SHAFT-COMP-STRG | |
REF # | 39114 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
JOINT-BALL | |
REF # | 59266 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
JOINT-BALL | |
REF # | 59266A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,LOCK,10MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,LOCK,10MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,LOCK,FLANGED,10MM | |
REF # | 92015B |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER,10.2X20X1.5 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PIN,8.2X10X14 | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL-OIL,SR7 39.6X49X6-2 NS | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,8X53 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,12X21.3X7 | |
REF # | 92152 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92152A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,8X30 | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP,STEERING SHAFT | |
REF # | 92171 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,12MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
