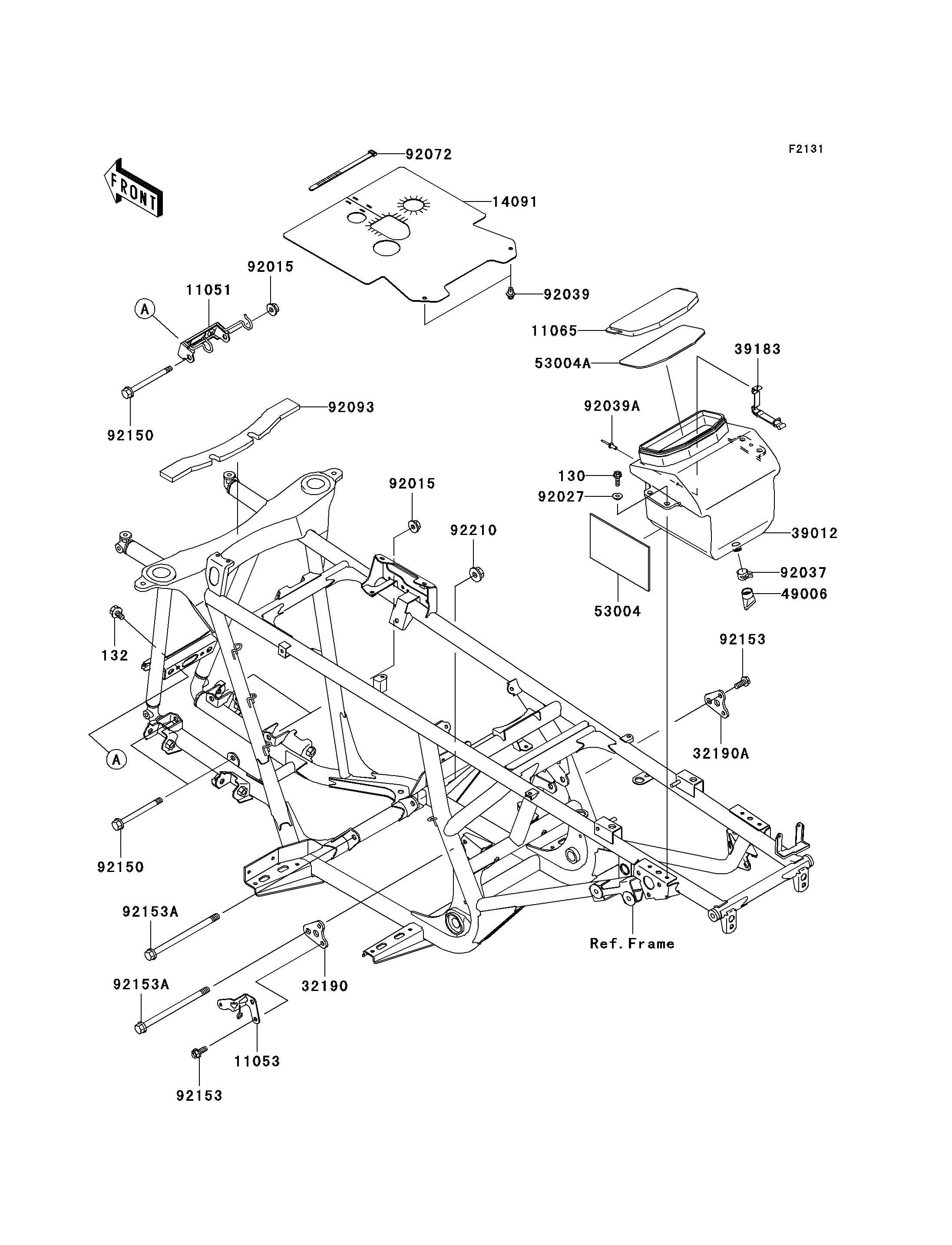

2006 Prairie 700 4x4 Team Green Special Edition - Frame Fittings
130
132
11051
11053
11065
14091
32190
32190A
39012
39183
49006
53004
53004A
92015
92015
92027
92037
92039
92039A
92072
92093
92150
92150
92153
92153
92153A
92153A
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X20 | 130 | 130G0620 | 4 | ||
BOLT-FLANGED-SMALL,8X14 | 132 | 132J0814 | 2 | ||
BRACKET,FRONT DIFF | 11051 | 11051-1929 | 1 | ||
BRACKET,RESERVOIR TANK | 11053 | 11053-0481 | 1 | ||
CAP,STORAGE CASE | 11065 | 11065-1154 | 1 | ||
COVER,FR,UPP | 14091 | 14091-1347 | 1 | ||
BRACKET-ENGINE,RR,UPP,LH | 32190 | 32190-0045 | 1 | ||
BRACKET-ENGINE,RR,UPP,RH | 32190A | 32190-0046 | 1 | ||
CASE-STORAGE | 39012 | 39012-1064 | 1 | ||
BAND-ASSY,TOOL BAG | 39183 | 39183-1065 | 1 | ||
BOOT | 49006 | 49006-1292 | 1 | ||
MAT,STORAGE CASE | 53004 | 53004-1139 | 1 | ||
MAT,STORAGE CASE CAP | 53004A | 53004-1147 | 1 | ||
NUT,LOCK,FLANGED,10MM | 92015 | 92015-1717 | 3 | ||
COLLAR | 92027 | 92027-1936 | 4 | ||
CLAMP,HOSE CLIP | 92037 | 92037-1460 | 1 | ||
RIVET | 92039 | 92039-1229 | 2 | ||
RIVET,4.8MM | 92039A | 92039-3719 | 2 | ||
BAND,L=123 | 92072 | 92072-030 | 2 | ||
SEAL | 92093 | 92093-1555 | 1 | ||
BOLT,FLANGED,10X120 | 92150 | 92150-1642 | 3 | ||
BOLT,FLANGED,8X20 | 92153 | 92153-0948 | 4 | ||
BOLT,FLANGED,12X190 | 92153A | 92153-1272 | 2 | ||
NUT,LOCK,FLANGED,12MM | 92210 | 92210-1150 | 1 |
BOLT-FLANGED,6X20 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL,8X14 | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BRACKET,FRONT DIFF | |
REF # | 11051 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,RESERVOIR TANK | |
REF # | 11053 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP,STORAGE CASE | |
REF # | 11065 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,FR,UPP | |
REF # | 14091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET-ENGINE,RR,UPP,LH | |
REF # | 32190 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET-ENGINE,RR,UPP,RH | |
REF # | 32190A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CASE-STORAGE | |
REF # | 39012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND-ASSY,TOOL BAG | |
REF # | 39183 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOOT | |
REF # | 49006 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
MAT,STORAGE CASE | |
REF # | 53004 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
MAT,STORAGE CASE CAP | |
REF # | 53004A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,LOCK,FLANGED,10MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CLAMP,HOSE CLIP | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RIVET | |
REF # | 92039 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RIVET,4.8MM | |
REF # | 92039A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BAND,L=123 | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X120 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,8X20 | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,12X190 | |
REF # | 92153A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,LOCK,FLANGED,12MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
