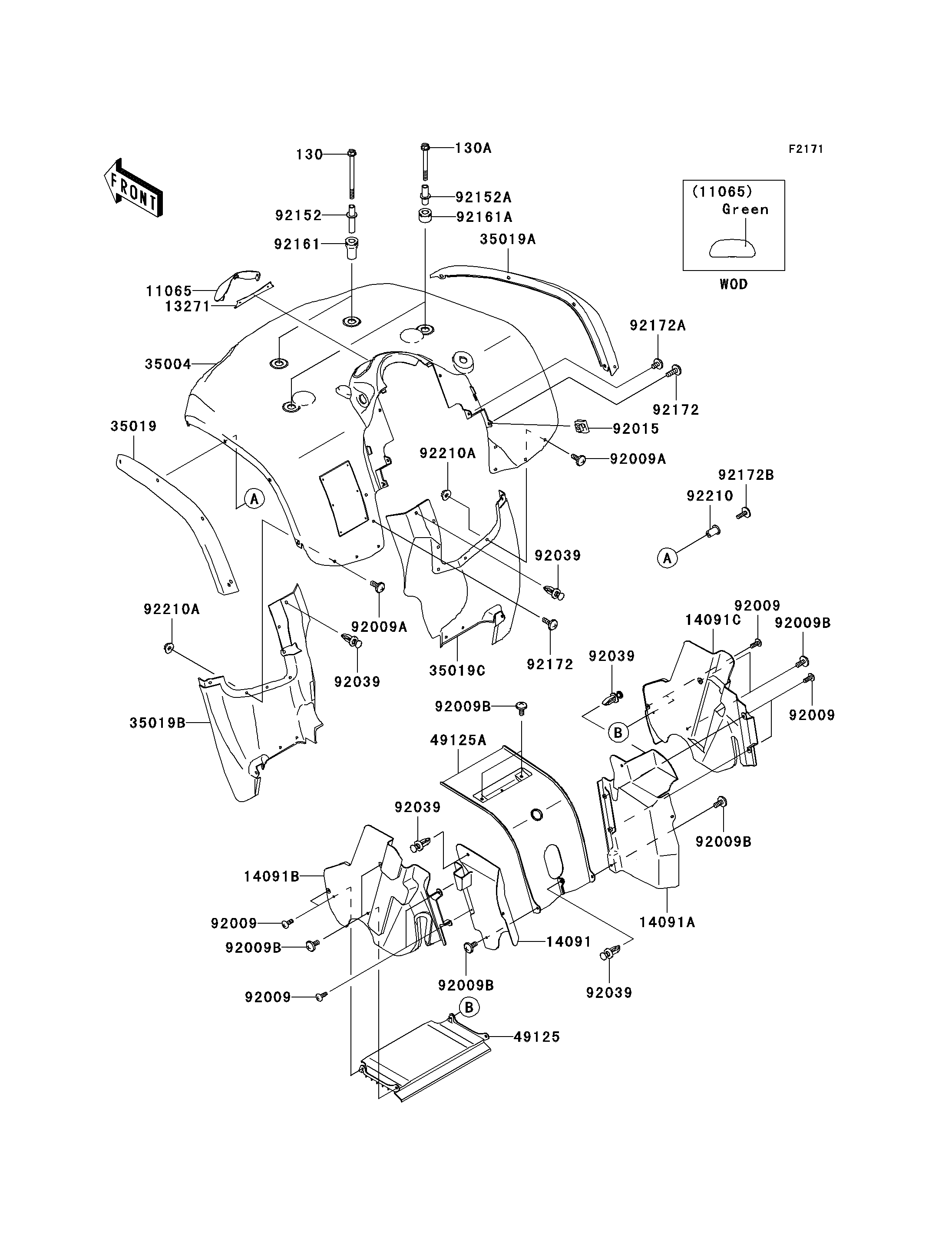

2006 Prairie 700 4x4 Team Green Special Edition - Front Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
130
130A
11065
13271
14091
14091A
14091B
14091C
35004
35019
35019A
35019B
35019C
49125
49125A
92009
92009
92009
92009
92009A
92009A
92009B
92009B
92009B
92009B
92009B
92015
92039
92039
92039
92039
92039
92152
92152A
92161
92161A
92172
92172
92172A
92172B
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X105 130 130S08105 2
BOLT-FLANGED,8X75 130A 130S0875 2
CAP,FR FENDER,L.GREEN 11065 11065-1204-290 1
PLATE,FR FENDER CAP 13271 13271-1640 1
COVER,SIDE,RR,LH 14091 14091-1282 1
COVER,SIDE,RR,RH 14091A 14091-1283 1
COVER,SIDE,FR,LH 14091B 14091-1428 1
COVER,SIDE,FR,RH 14091C 14091-1429 1
FENDER-FRONT,L.GREEN 35004 35004-1452-290 1
FLAP,FR,SIDE,LH,F.BLACK 35019 35019-1365-6Z 1
FLAP,FR,SIDE,RH,F.BLACK 35019A 35019-1366-6Z 1
FLAP,FR,RR,LH,F.BLACK 35019B 35019-1391-6Z 1
FLAP,FR,RR,RH,F.BLACK 35019C 35019-1392-6Z 1
SHROUD,FR,LWR 49125 49125-0006 1
SHROUD,FR,UPP 49125A 49125-1081 1
SCREW,TAPPING,5X14 92009 92009-1197 8
SCREW,6X16 92009A 92009-1621 11
SCREW,6X14 92009B 92009-1662 8
NUT,CLAMP,6MM 92015 92015-1678 2
RIVET 92039 92039-1229 5
COLLAR,L=90 92152 92152-0025 2
COLLAR,L=60.7 92152A 92152-0026 2
DAMPER,L=58.5 92161 92161-0035 2
DAMPER,L=25.5 92161A 92161-1166 2
SCREW,6X18 92172 92172-0002 3
SCREW,6X10 92172A 92172-0005 2
SCREW,5X18 92172B 92172-1063 8
NUT,POP,5MM 92210 92210-0012 8
NUT,6MM 92210A 92210-1368 12
