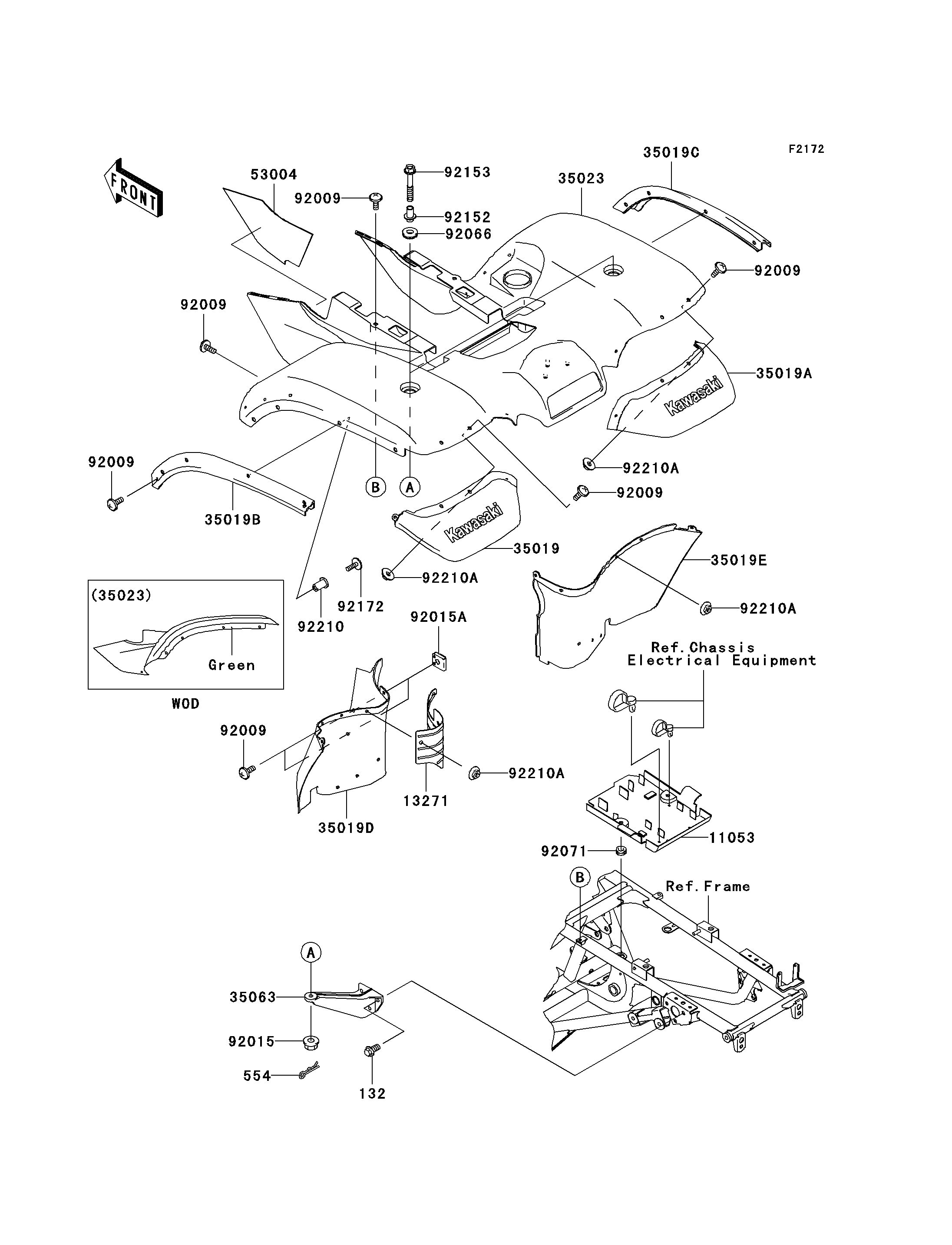

2006 Prairie 700 4x4 Team Green Special Edition - Rear Fender(s)
132
554
11053
13271
35019
35019A
35019B
35019C
35019D
35019E
35023
35063
53004
92009
92009
92009
92009
92009
92009
92015
92015A
92066
92071
92152
92153
92172
92210
92210A
92210A
92210A
92210A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL,8X18 | 132 | 132J0818 | 6 | ||
PIN-SNAP,8MM | 554 | 554A0800 | 2 | ||
BRACKET,ELECTRIC | 11053 | 11053-1308 | 1 | ||
PLATE,HEAT GUARD | 13271 | 13271-1718 | 1 | ||
FLAP,RR,RR,LH,F.BLACK | 35019 | 35019-1371-6Z | 1 | ||
FLAP,RR,RR,RH,F.BLACK | 35019A | 35019-1372-6Z | 1 | ||
FLAP,RR,SIDE,LH,F.BLACK | 35019B | 35019-1373-6Z | 1 | ||
FLAP,RR,SIDE,RH,F.BLACK | 35019C | 35019-1374-6Z | 1 | ||
FLAP,RR,FR,LH,F.BLACK | 35019D | 35019-1393-6Z | 1 | ||
FLAP,RR,FR,RH,F.BLACK | 35019E | 35019-1394-6Z | 1 | ||
FENDER-REAR,L.GREEN | 35023 | 35023-1565-290 | 1 | ||
STAY,RR FENDER | 35063 | 35063-1100 | 2 | ||
MAT,RR FENDER | 53004 | 53004-1170 | 1 | ||
SCREW,6X16 | 92009 | 92009-1621 | 23 | ||
NUT,LOCK,FLANGED,8MM | 92015 | 92015-1397 | 2 | ||
NUT,CLAMP,6MM | 92015A | 92015-1678 | 2 | ||
PLUG | 92066 | 92066-1438 | 2 | ||
GROMMET | 92071 | 92071-1131 | 2 | ||
COLLAR,L=38.5 | 92152 | 92152-0098 | 2 | ||
BOLT,FLANGED,8X68 | 92153 | 92153-0326 | 2 | ||
SCREW,5X18 | 92172 | 92172-1063 | 8 | ||
NUT,POP,5MM | 92210 | 92210-0012 | 8 | ||
NUT,6MM | 92210A | 92210-1368 | 19 |
BOLT-FLANGED-SMALL,8X18 | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
PIN-SNAP,8MM | |
REF # | 554 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BRACKET,ELECTRIC | |
REF # | 11053 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE,HEAT GUARD | |
REF # | 13271 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FLAP,RR,RR,LH,F.BLACK | |
REF # | 35019 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FLAP,RR,RR,RH,F.BLACK | |
REF # | 35019A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FLAP,RR,SIDE,LH,F.BLACK | |
REF # | 35019B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FLAP,RR,SIDE,RH,F.BLACK | |
REF # | 35019C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FLAP,RR,FR,LH,F.BLACK | |
REF # | 35019D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FLAP,RR,FR,RH,F.BLACK | |
REF # | 35019E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FENDER-REAR,L.GREEN | |
REF # | 35023 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STAY,RR FENDER | |
REF # | 35063 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
MAT,RR FENDER | |
REF # | 53004 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,6X16 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 23 |
DESTINATION | |
REMARKS |
NUT,LOCK,FLANGED,8MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,CLAMP,6MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PLUG | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GROMMET | |
REF # | 92071 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,L=38.5 | |
REF # | 92152 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,8X68 | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,5X18 | |
REF # | 92172 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
NUT,POP,5MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
NUT,6MM | |
REF # | 92210A |
---|---|
PART NUMBER | |
QUANTITY | 19 |
DESTINATION | |
REMARKS |
