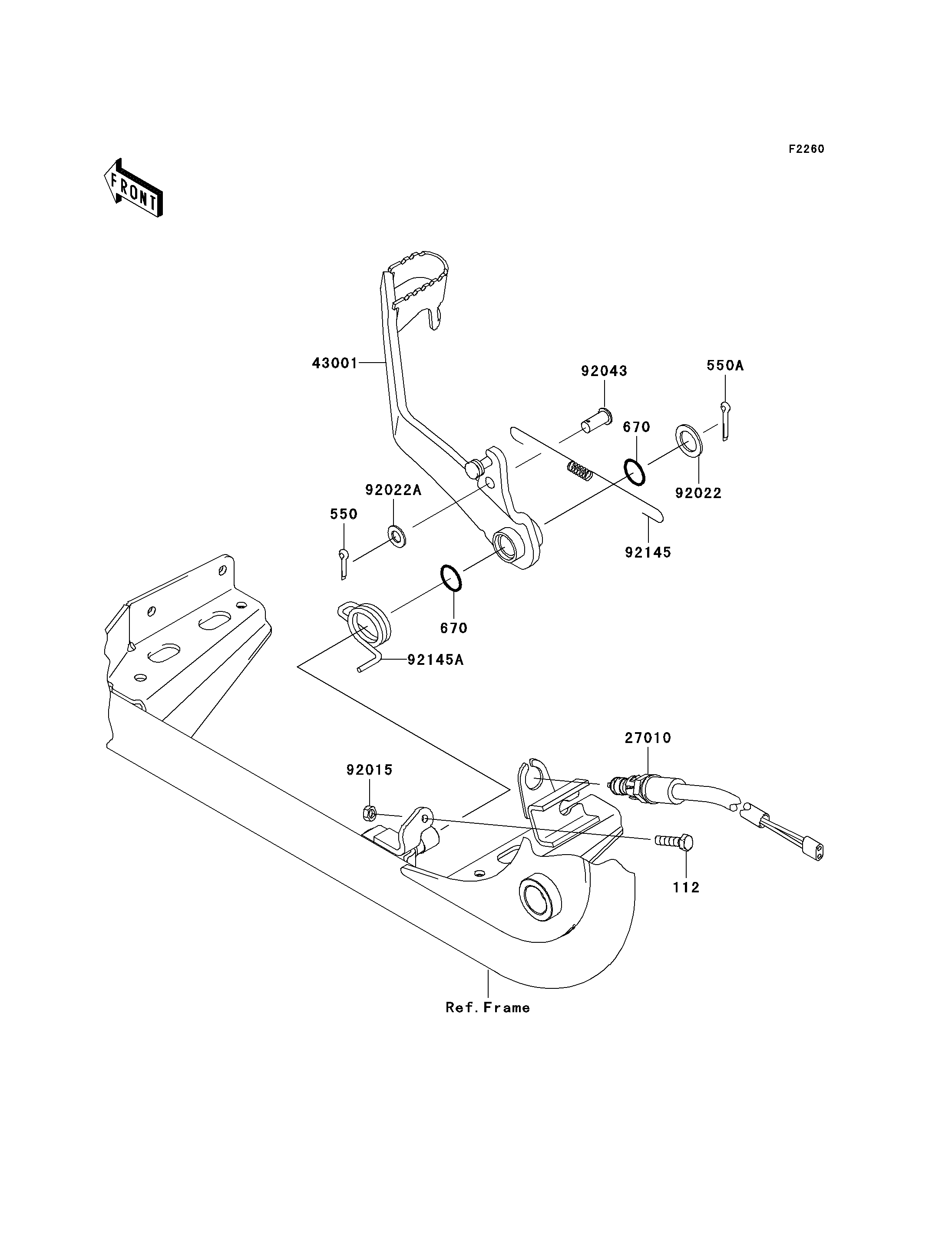

2006 Prairie 700 4x4 Team Green Special Edition - Brake Pedal

112
550
550A
670
670
27010
43001
92015
92022
92022A
92043
92145
92145A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET,6X22 112 112D0622 1
PIN-COTTER,2.0X15 550 550D2015 1
PIN-COTTER,2.0X22 550A 550D2022 1
O RING,15MM 670 670B2015 2
SWITCH,BRAKE 27010 27010-1494 1
LEVER-BRAKE,PEDAL 43001 43001-0036 1
NUT,6MM 92015 92015-1410 1
WASHER,15.5X24X1.6 92022 92022-1049 1
WASHER,8.5X16X1.2 92022A 92022-1582 1
PIN,8X16 92043 92043-1013 1
SPRING,BRAKE SWITCH 92145 92145-0056 1
SPRING,BRAKE PEDAL RETURN 92145A 92145-1421 1
