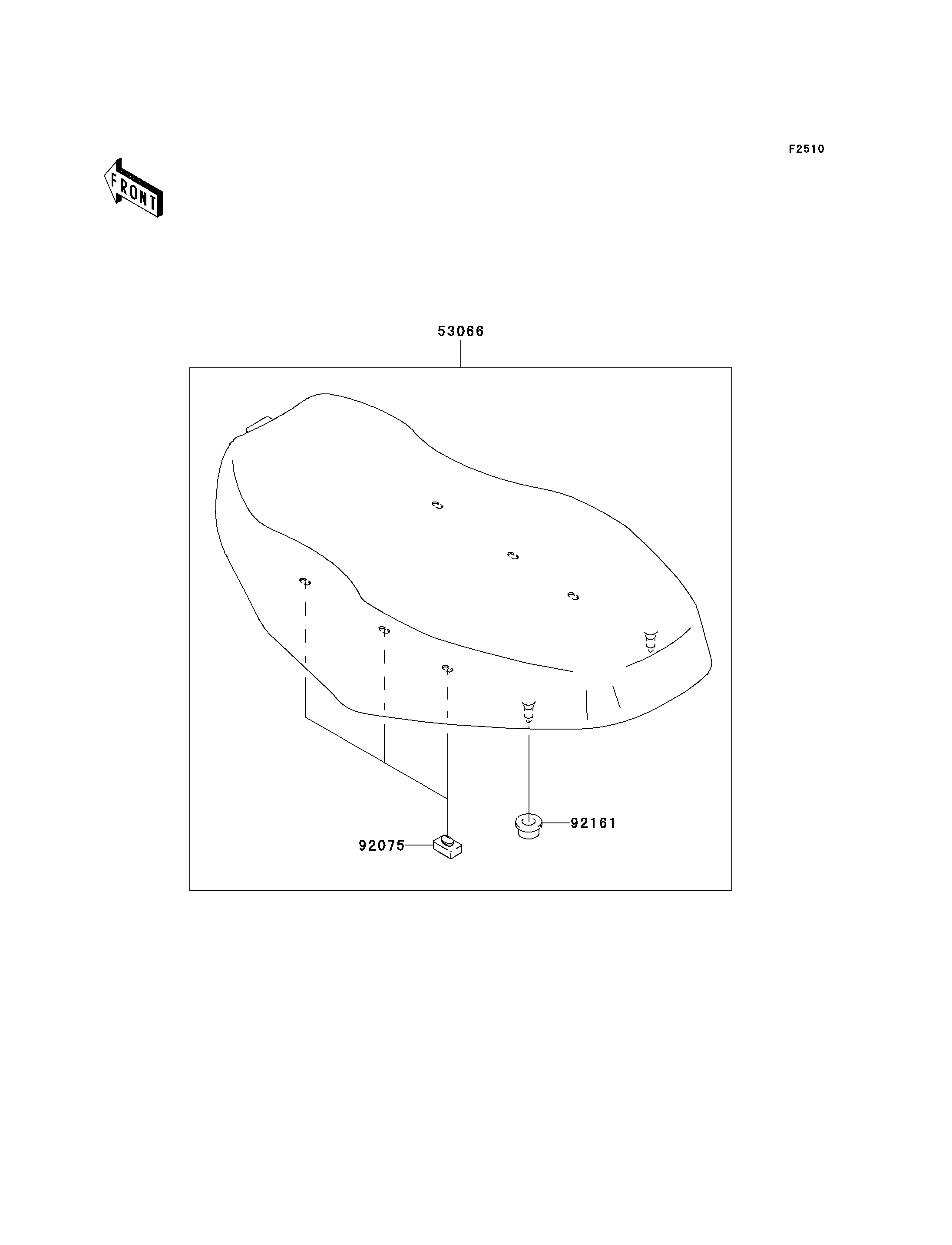

2006 Prairie 700 4x4 Team Green Special Edition - Seat

53066
92075
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SEAT-ASSY,BLACK 53066 53066-0061-MA 1
DAMPER 92075 92075-099 6
DAMPER 92161 92161-1128 2
