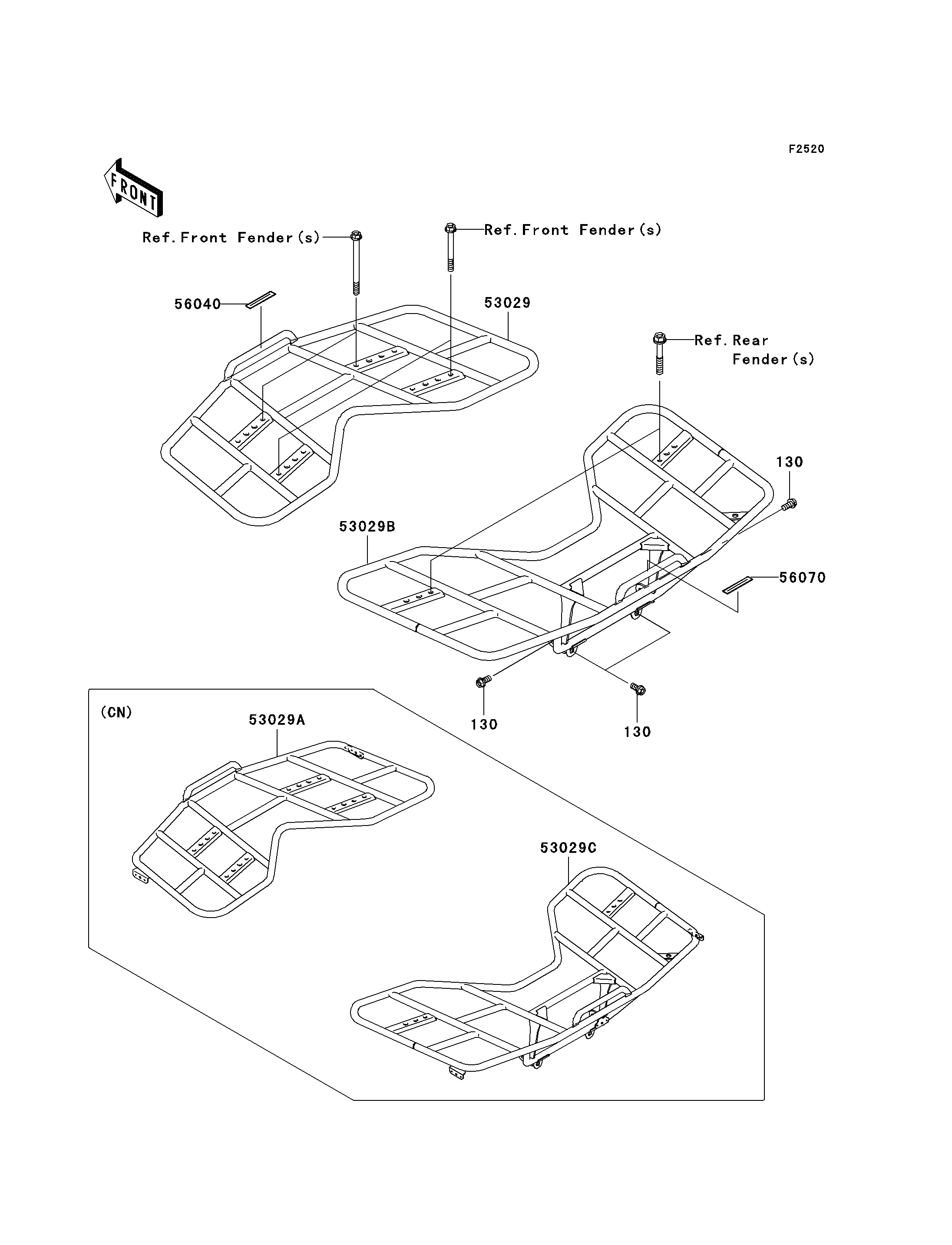

2006 Prairie 700 4x4 Team Green Special Edition - Carrier(s)

130
130
130
56040
56070
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,10X20 130 130S1020 4
LABEL-WARNING,MAXIMUM LOAD 56040 56040-1321 1
LABEL-WARNING,MAXIMUM LOAD 56070 56070-0041 1
CARRIER,FR,M.GRAYSTONE 53029 53029-0003-379 1 US
CARRIER,FR,M.GRAYSTONE 53029A 53029-0007-379 1 CN
CARRIER,RR,M.GRAYSTONE 53029B 53029-0016-379 1 US
CARRIER,RR,M.GRAYSTONE 53029C 53029-0025-379 1 CN
