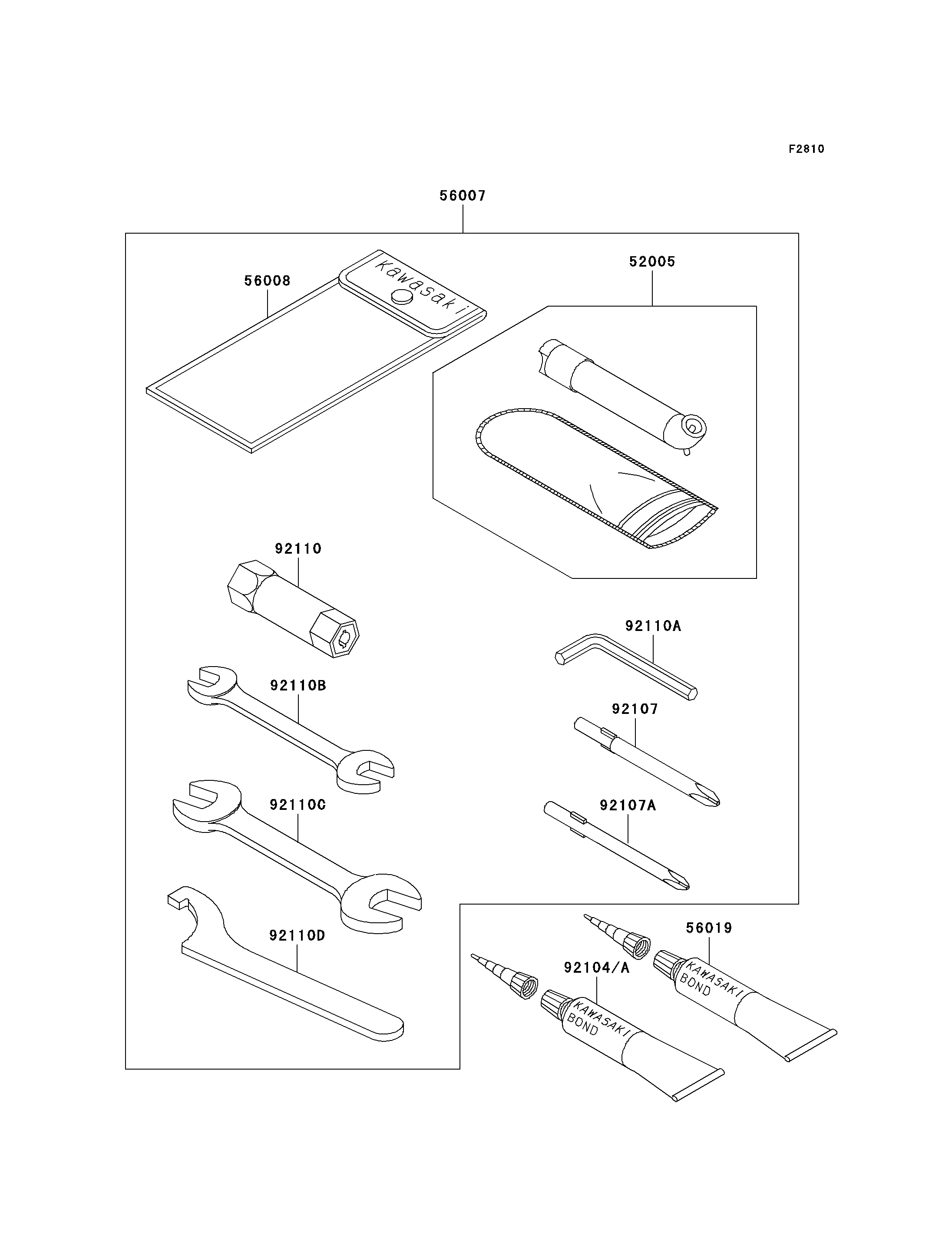

2006 Prairie 700 4x4 Team Green Special Edition - Owner's Tools

52005
56007
56008
56019
92104
92104A
92107
92107A
92110
92110A
92110B
92110C
92110D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GAUGE,AIR 52005 52005-1082 1
TOOL-KIT 56007 56007-1494 1
BAG,TOOL 56008 56008-1007 1
THREE BOND TB1211,HT/RS,WHITE 56019 56019-120 1
GASKET-LIQUID,TB1216,GRAY 92104 92104-1063 1
GASKET-LIQUID,TB1215 92104A 92104-1065 1
TOOL-DRIVER,#3PHILLIPS 92107 92107-005 1
TOOL-DRIVER,#2PHILLIPS 92107A 92107-1053 1
TOOL-WRENCH,BOX,16MM 92110 92110-1116 1
TOOL-WRENCH,ALLEN,3MM 92110A 92110-1140 1
TOOL-WRENCH,OPEN END,10X12 92110B 92110-1152 1
TOOL-WRENCH,OPEN END,14X17 92110C 92110-1153 1
TOOL-WRENCH,HOOK 92110D 92110-1173 1
