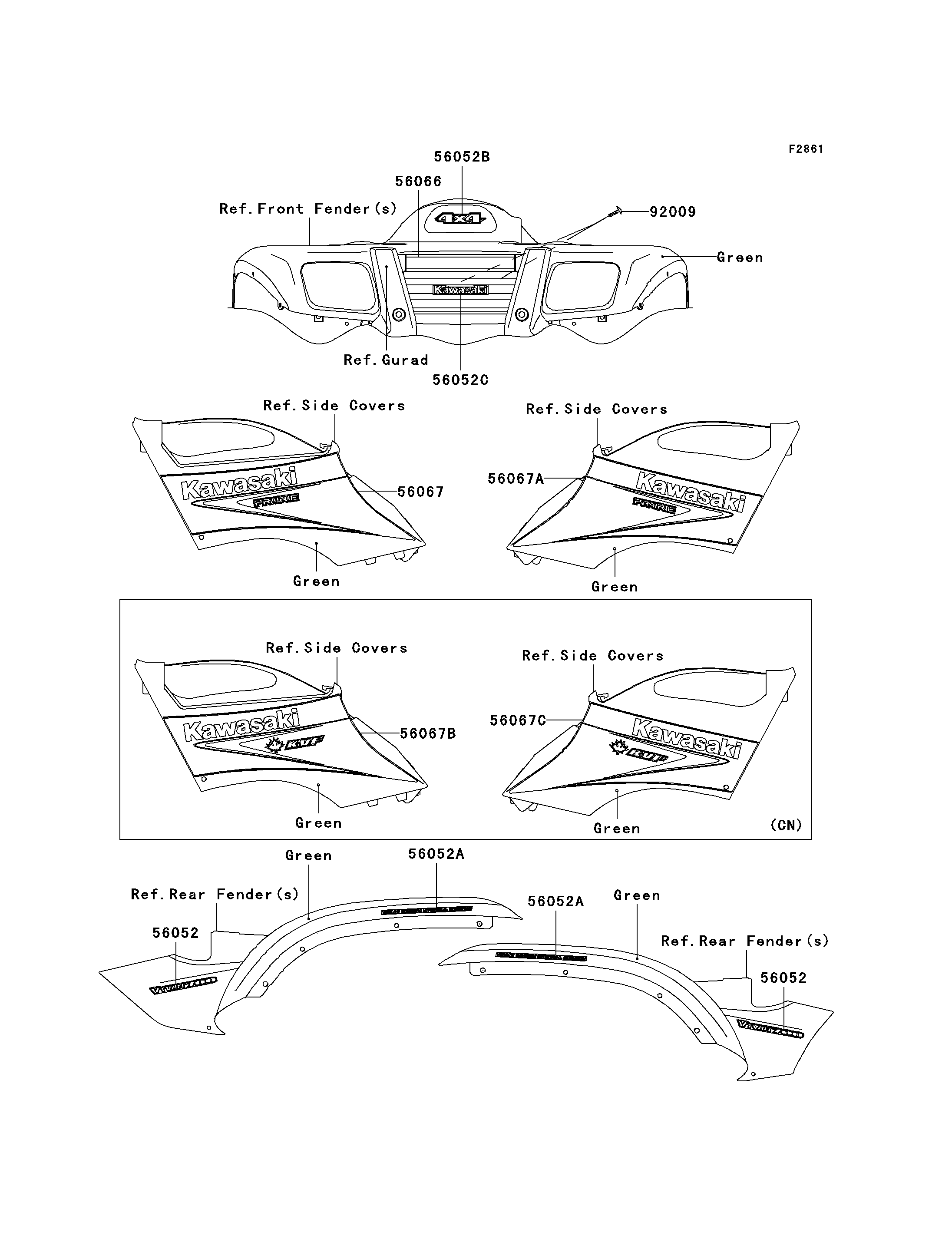

2006 Prairie 700 4x4 Team Green Special Edition - Decals(Green)

56052
56052
56052A
56052A
56052B
56052C
56066
92009
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,RR FENDER,V TWIN 700 56052 56052-0551 2
MARK,RR FENDER 56052A 56052-0732 2
MARK,FR FENDER CAP,4X4 56052B 56052-0734 1
MARK,FR FENDER,KAWASAKI 56052C 56052-1201 1
PATTERN,FRONT GUARD 56066 56066-1653 1
SCREW,TAPPING,4X12 92009 92009-1444 2
PATTERN,FUEL TANK COVER,LH 56067 56067-0434 1 US
PATTERN,FUEL TANK COVER,RH 56067A 56067-0435 1 US
PATTERN,FUEL TANK COVER,LH 56067B 56067-0555 1 CN
PATTERN,FUEL TANK COVER,RH 56067C 56067-0556 1 CN
