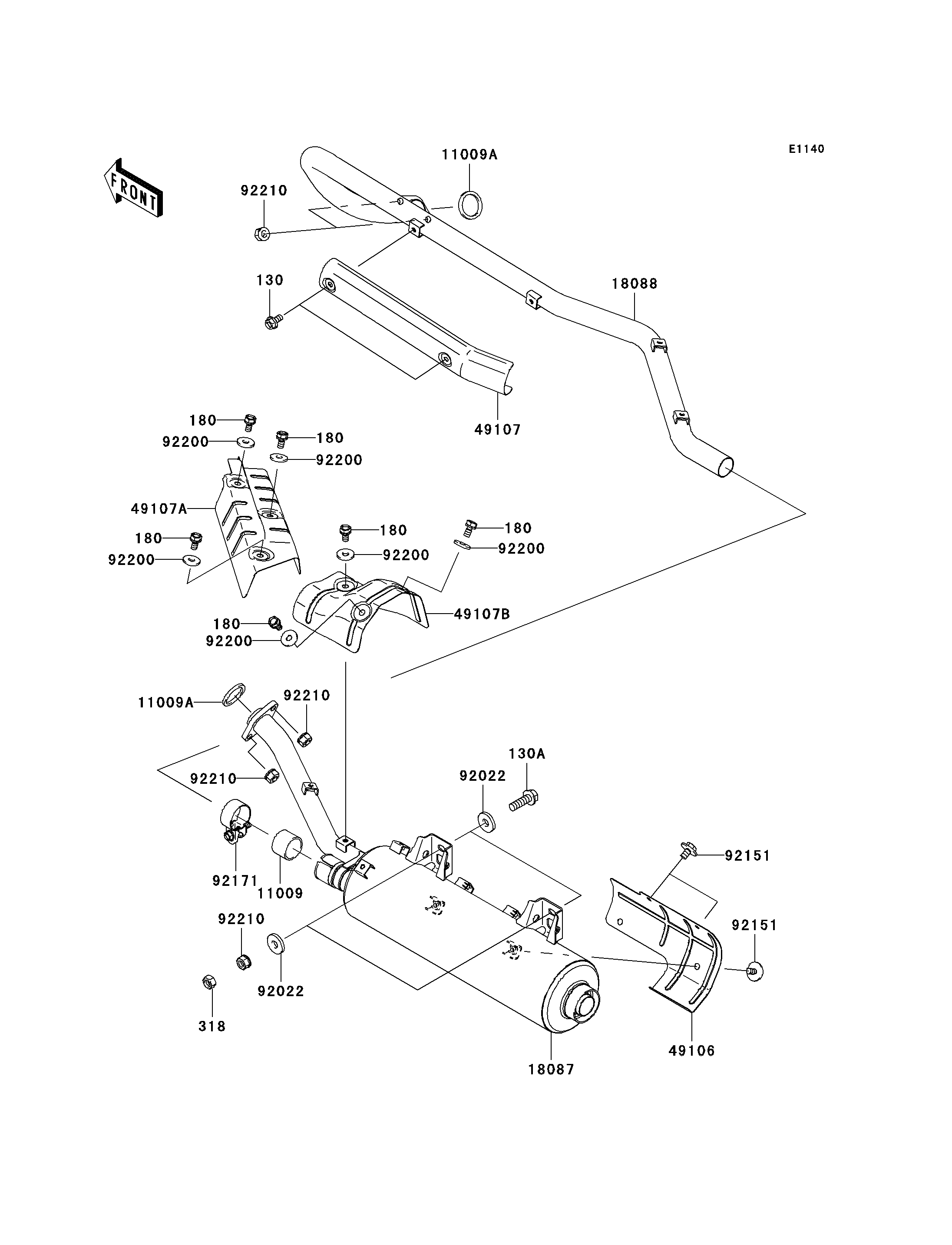

2005 Brute Force 750 4x4i - Muffler(s)
130
130A
180
180
180
180
180
180
318
11009
11009A
11009A
18087
18088
49106
49107
49107A
49107B
92022
92022
92151
92151
92171
92200
92200
92200
92200
92200
92200
92210
92210
92210
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED | 130 | 130J0610 | 2 | ||
BOLT-FLANGED | 130A | 130Z0825 | 2 | ||
BOLT-UPSET-WS | 180 | 180Y0612 | 6 | ||
NUT-HEX-SMALL,8MM | 318 | 318G0800 | 2 | ||
GASKET,MUFFLER CONNECTING | 11009 | 11009-1865 | 1 | ||
GASKET,EXHAUST HOLDER | 11009A | 11009-1894 | 2 | ||
MUFFLER | 18087 | 18087-0066 | 1 | ||
PIPE-EXHAUST | 18088 | 18088-0146 | 1 | ||
COVER-MUFFLER | 49106 | 49106-0011 | 1 | ||
COVER-EXHAUST PIPE,FR | 49107 | 49107-0042 | 1 | ||
COVER-EXHAUST PIPE,CNT | 49107A | 49107-0049 | 1 | ||
COVER-EXHAUST PIPE,RR | 49107B | 49107-0050 | 1 | ||
WASHER,8.5X22X3.2 | 92022 | 92022-276 | 4 | ||
BOLT,6X12 | 92151 | 92151-1944 | 4 | ||
CLAMP | 92171 | 92171-1330 | 1 | ||
WASHER,6.5X18X2.0 | 92200 | 92200-2035 | 6 | ||
NUT,RH,THREAD 8MM | 92210 | 92210-1242 | 6 |
