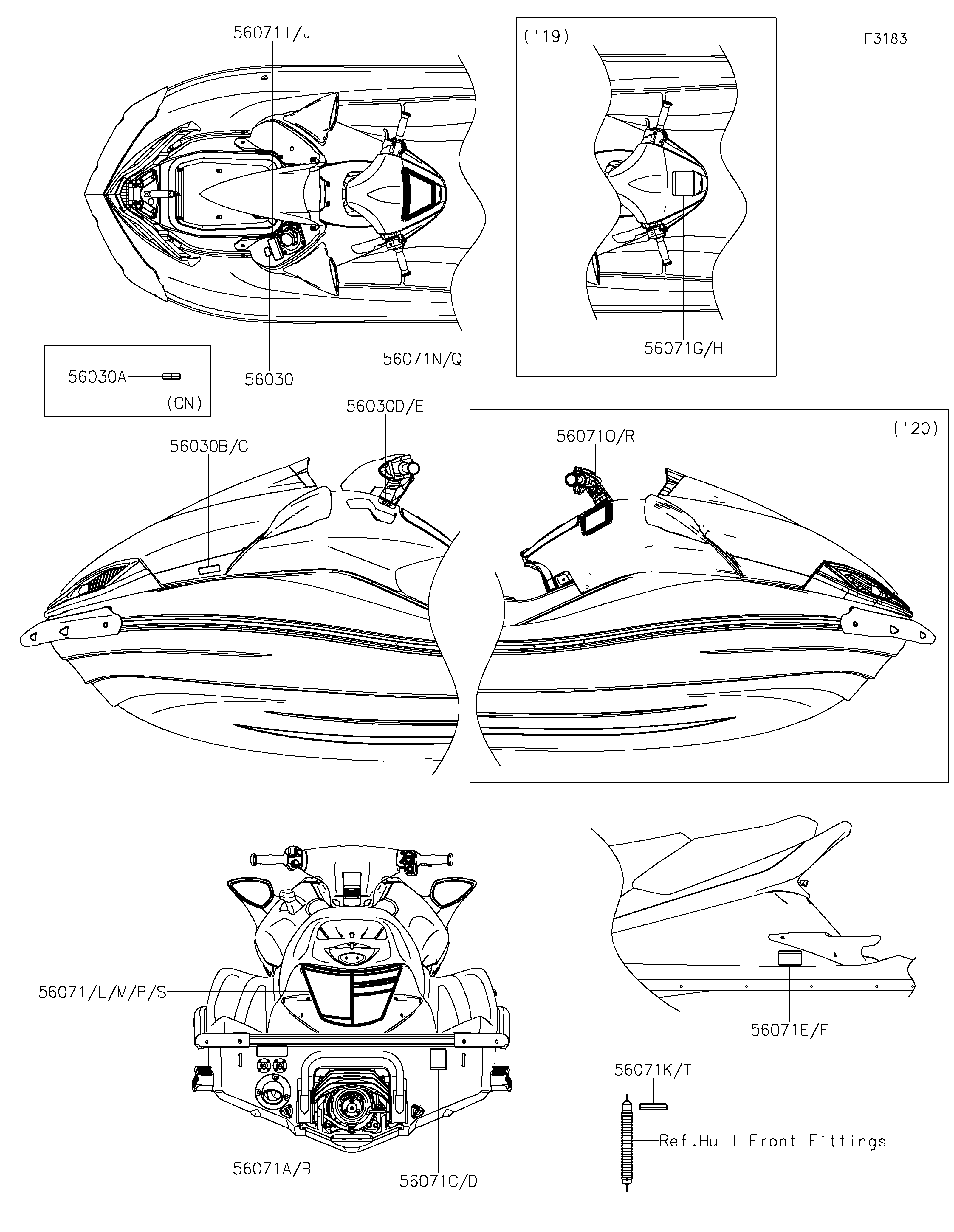

Parts Diagrams |
56030
56030
56030A
56030A
56030B
56030B
56030C
56030C
56030D
56030D
56030E
56030E
56071
56071
56071A
56071A
56071B
56071B
56071C
56071C
56071D
56071D
56071E
56071E
56071F
56071F
56071G
56071G
56071H
56071H
56071I
56071I
56071J
56071J
56071K
56071K
56071L
56071L
56071T
56071T
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL,GASOLINE | 56030 | 56030-0357 | 1 | US | |
| LABEL,GASOLINE | 56030A | 56030-0358 | 1 | CN | |
| LABEL,FIRE EXTINGUISHER | 56030B | 56030-3755 | 1 | ||
| LABEL,FIRE EXTINGUISHER | 56030C | 56030-3757 | 1 | CN | |
| LABEL,REVERSE | 56030D | 56030-3815 | 1 | ||
| LABEL,REVERSE | 56030E | 56030-3816 | 1 | CN | |
| LABEL-WARNING,IMPORTANT SAFETY | 56071 | 56071-0386 | 1 | CN | |
| LABEL-WARNING,FLUSHING | 56071A | 56071-0392 | 1 | ||
| LABEL-WARNING,FLUSHING | 56071B | 56071-0393 | 1 | CN | |
| LABEL-WARNING,RIGHTING | 56071C | 56071-0398 | 1 | ||
| LABEL-WARNING,RIGHTING | 56071D | 56071-0399 | 1 | CN | |
| LABEL-WARNING,GRAB,HANDLE,STEP | 56071E | 56071-0402 | 1 | ||
| LABEL-WARNING,GRAB,HANDLE,STEP | 56071F | 56071-0403 | 1 | CN | |
| LABEL-WARNING,READ AND FOLLOW | 56071G | 56071-0406 | 1 | ||
| LABEL-WARNING,READ AND FOLLOW | 56071H | 56071-0407 | 1 | CN | |
| LABEL-WARNING,FUEL SUPPLY | 56071I | 56071-0424 | 1 | ||
| LABEL-WARNING,FUEL SUPPLY | 56071J | 56071-0425 | 1 | CN | |
| LABEL-WARNING,DAMPER | 56071K | 56071-0568 | 1 | ||
| LABEL-WARNING,IMPORTANT SAFETY | 56071L | 56071-0816 | 1 | ||
| LABEL-WARNING,DAMPER | 56071T | 56071-3737 | 1 | CN |
| LABEL,GASOLINE | |
| REF # | 56030 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| LABEL,GASOLINE | |
| REF # | 56030A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LABEL,FIRE EXTINGUISHER | |
| REF # | 56030B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL,FIRE EXTINGUISHER | |
| REF # | 56030C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LABEL,REVERSE | |
| REF # | 56030D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL,REVERSE | |
| REF # | 56030E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LABEL-WARNING,IMPORTANT SAFETY | |
| REF # | 56071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LABEL-WARNING,FLUSHING | |
| REF # | 56071A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,FLUSHING | |
| REF # | 56071B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LABEL-WARNING,RIGHTING | |
| REF # | 56071C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,RIGHTING | |
| REF # | 56071D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LABEL-WARNING,GRAB,HANDLE,STEP | |
| REF # | 56071E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,GRAB,HANDLE,STEP | |
| REF # | 56071F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LABEL-WARNING,READ AND FOLLOW | |
| REF # | 56071G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,READ AND FOLLOW | |
| REF # | 56071H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LABEL-WARNING,FUEL SUPPLY | |
| REF # | 56071I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,FUEL SUPPLY | |
| REF # | 56071J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LABEL-WARNING,DAMPER | |
| REF # | 56071K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,IMPORTANT SAFETY | |
| REF # | 56071L |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,DAMPER | |
| REF # | 56071T |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
