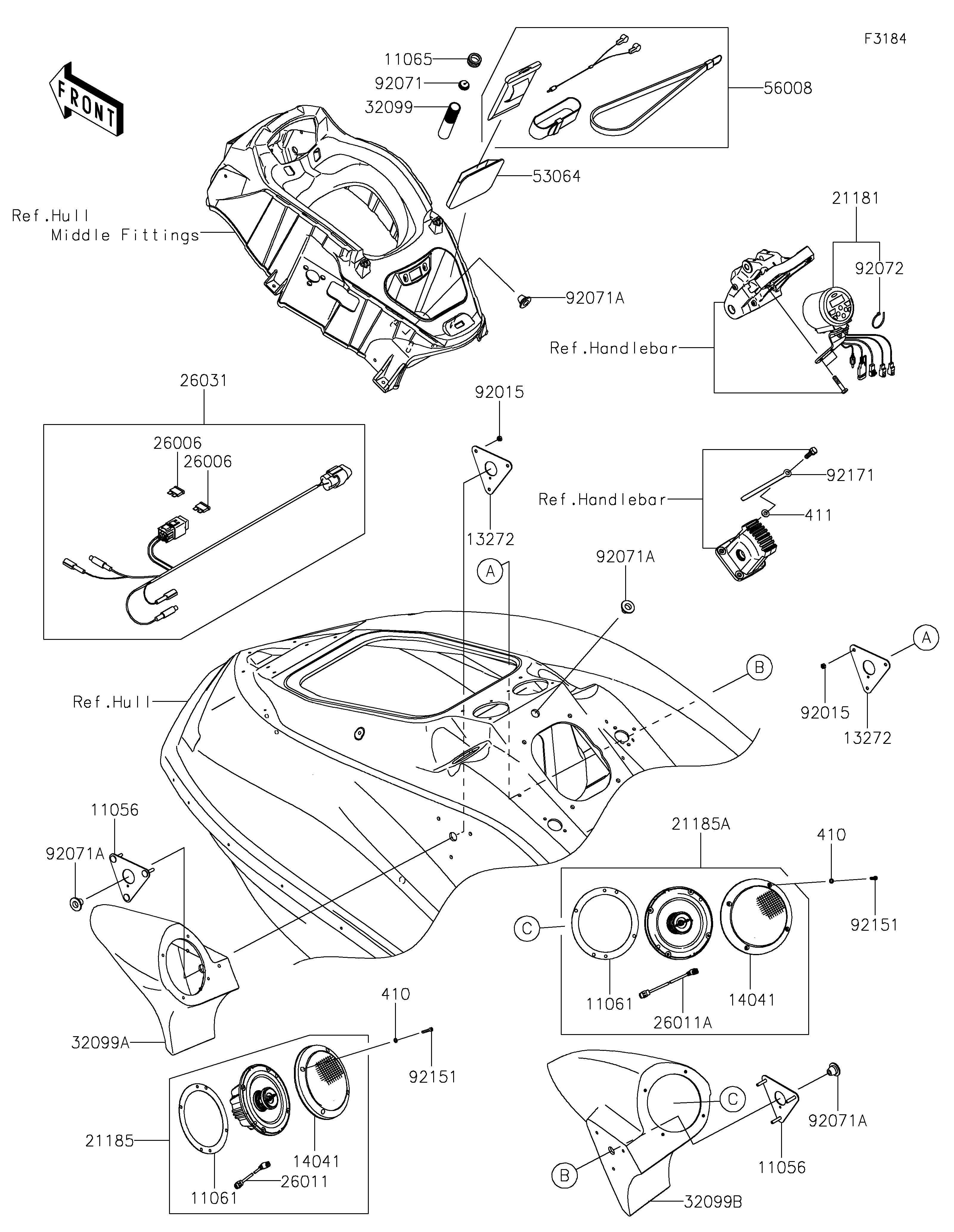

2020 JET SKI® ULTRA® 310LX - Other(Speaker)

DOWNLOAD PDF
SELECT A NEW PART
11056
11056
11061
11061
11065
13272
13272
14041
14041
21181
21185
21185A
26006
26006
26011
26011A
26031
32099
32099A
32099B
410
410
411
53064
56008
92015
92015
92071
92071A
92071A
92071A
92071A
92072
92151
92151
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SPEAKER 11056 11056-2493 2
GASKET 11061 11061-0901 2
CAP 11065 11065-1292 1
PLATE,SPEAKER 13272 13272-1703 2
COVER-COMP 14041 14041-0582 2
AMPLIFIER,WATERPROOF 21181 21181-0011 1
SPEAKER,LH 21185 21185-0002 1
SPEAKER,RH 21185A 21185-0003 1
FUSE,MINI BLADE,10A,RED 26006 26006-0009 2
WIRE-LEAD,YELLOW 26011 26011-0849 1
WIRE-LEAD,L.GRAY 26011A 26011-0850 1
HARNESS,AUDIO 26031 26031-1574 1
CASE,USB 32099 32099-0751 1
CASE,SPEAKER,LH,EBONY 32099A 32099-0760-H8 1
CASE,SPEAKER,RH,EBONY 32099B 32099-0761-H8 1
W-PLAIN-S,5MM 410 410S0500 8
WASHER-PLAIN,8MM 411 411S0800 1
NET-CARGO 53064 53064-0013 1
BAG,WATERPROOF MUSIC 56008 56008-0042 1
NUT,LOCK,6MM 92015 92015-3766 6
GROMMET,USB OUTLET 92071 92071-0734 1
GROMMET 92071A 92071-3826 4
BAND,L=188.85 92072 92072-0105 1
BOLT,SOCKET,5X25 92151 92151-3709 8
CLAMP,L=150 92171 92171-3717 1
