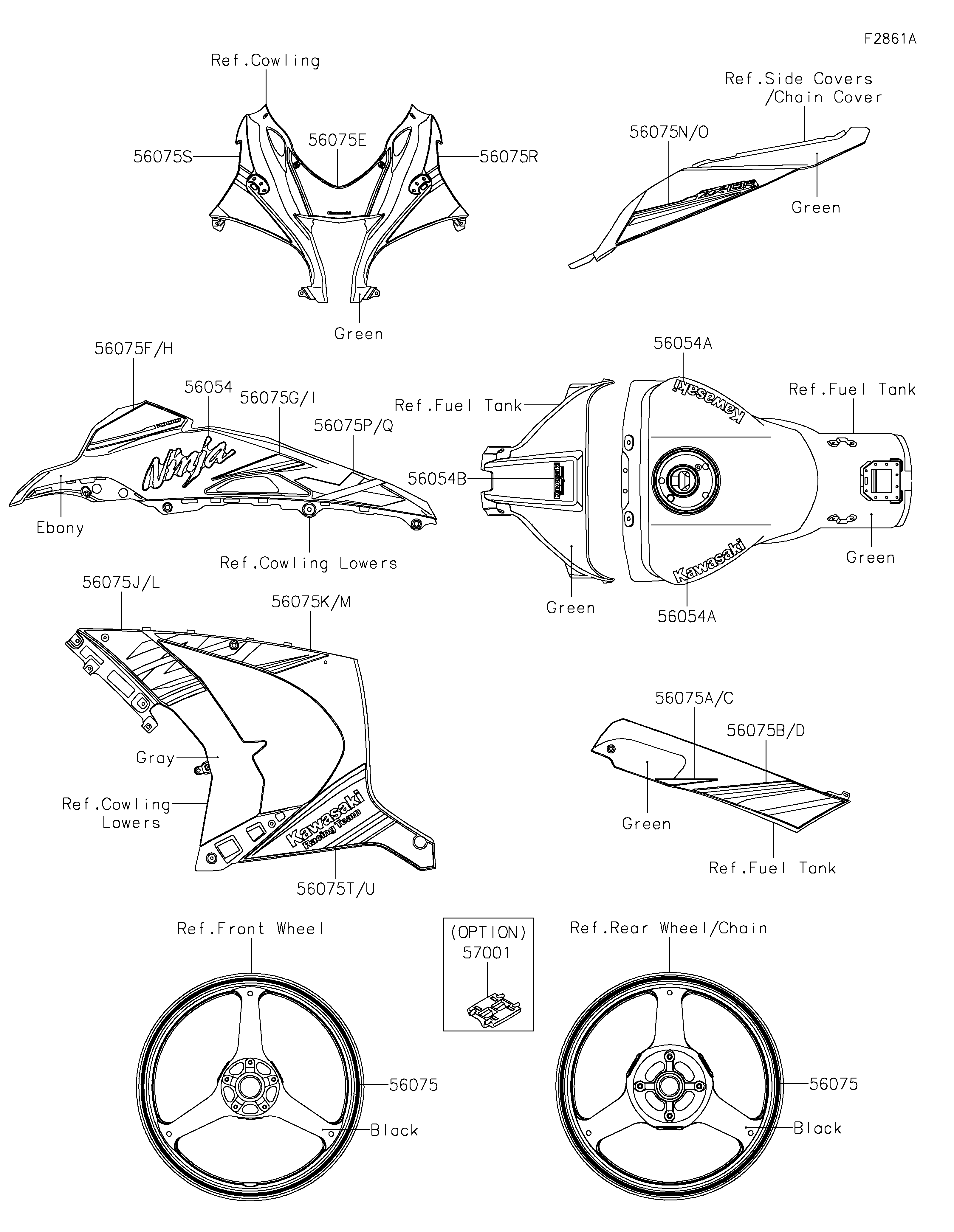

2019 NINJA® ZX™-10R ABS KRT EDITION - Decals(Green)(EKFA)
56054
56054A
56054A
56054B
56075
56075
56075A
56075B
56075C
56075D
56075E
56075F
56075G
56075H
56075I
56075J
56075K
56075L
56075M
56075N
56075O
56075P
56075Q
56075R
56075S
56075T
56075U
57001
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,SIDE COWL.,NINJA | 56054 | 56054-2008 | 2 | ||
| MARK,FUEL TANK,KAWASAKI | 56054A | 56054-2315 | 2 | ||
| MARK,TANK COVER,KRT | 56054B | 56054-2366 | 1 | ||
| PATTERN,WHEEL,GREEN,6X1079 | 56075 | 56075-1575 | 4 | ||
| PATTERN,TANK COVER,LH,FR | 56075A | 56075-3863 | 1 | ||
| PATTERN,TANK COVER,LH,RR | 56075B | 56075-3864 | 1 | ||
| PATTERN,TANK COVER,RH,FR | 56075C | 56075-3865 | 1 | ||
| PATTERN,TANK COVER,RH,RR | 56075D | 56075-3866 | 1 | ||
| PATTERN,UPP COWL.,CNT | 56075E | 56075-3867 | 1 | ||
| PATTERN,SIDE COWL.,LH,UPP | 56075F | 56075-3868 | 1 | ||
| PATTERN,SIDE COWL.,LH,CNT | 56075G | 56075-3869 | 1 | ||
| PATTERN,SIDE COWL.,RH,UPP | 56075H | 56075-3870 | 1 | ||
| PATTERN,SIDE COWL.,RH,CNT | 56075I | 56075-3871 | 1 | ||
| PATTERN,LWR COWL.,LH,FR | 56075J | 56075-3872 | 1 | ||
| PATTERN,LWR COWL.,LH,RR | 56075K | 56075-3873 | 1 | ||
| PATTERN,LWR COWL.,RH,FR | 56075L | 56075-3875 | 1 | ||
| PATTERN,LWR COWL.,RH,RR | 56075M | 56075-3876 | 1 | ||
| PATTERN,TAIL COVER,LH | 56075N | 56075-3878 | 1 | ||
| PATTERN,TAIL COVER,RH | 56075O | 56075-3879 | 1 | ||
| PATTERN,SIDE COWL.,LH,LWR | 56075P | 56075-3896 | 1 | ||
| PATTERN,SIDE COWL.,RH,LWR | 56075Q | 56075-3897 | 1 | ||
| PATTERN,UPP COWL.,LH | 56075R | 56075-7746 | 1 | ||
| PATTERN,UPP COWL.,RH | 56075S | 56075-7747 | 1 | ||
| PATTERN,LWR COWL.,LH,LWR | 56075T | 56075-7748 | 1 | ||
| PATTERN,LWR COWL.,RH,LWR | 56075U | 56075-7749 | 1 | ||
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | (OPTION) |
| MARK,SIDE COWL.,NINJA | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK,KAWASAKI | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,TANK COVER,KRT | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,WHEEL,GREEN,6X1079 | |
| REF # | 56075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TANK COVER,LH,FR | |
| REF # | 56075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TANK COVER,LH,RR | |
| REF # | 56075B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TANK COVER,RH,FR | |
| REF # | 56075C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TANK COVER,RH,RR | |
| REF # | 56075D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWL.,CNT | |
| REF # | 56075E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,LH,UPP | |
| REF # | 56075F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,LH,CNT | |
| REF # | 56075G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,RH,UPP | |
| REF # | 56075H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,RH,CNT | |
| REF # | 56075I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWL.,LH,FR | |
| REF # | 56075J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWL.,LH,RR | |
| REF # | 56075K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWL.,RH,FR | |
| REF # | 56075L |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWL.,RH,RR | |
| REF # | 56075M |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL COVER,LH | |
| REF # | 56075N |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL COVER,RH | |
| REF # | 56075O |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,LH,LWR | |
| REF # | 56075P |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,RH,LWR | |
| REF # | 56075Q |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWL.,LH | |
| REF # | 56075R |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWL.,RH | |
| REF # | 56075S |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWL.,LH,LWR | |
| REF # | 56075T |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWL.,RH,LWR | |
| REF # | 56075U |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM STRIPE APPLICATOR | |
| REF # | 57001 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | (OPTION) |
