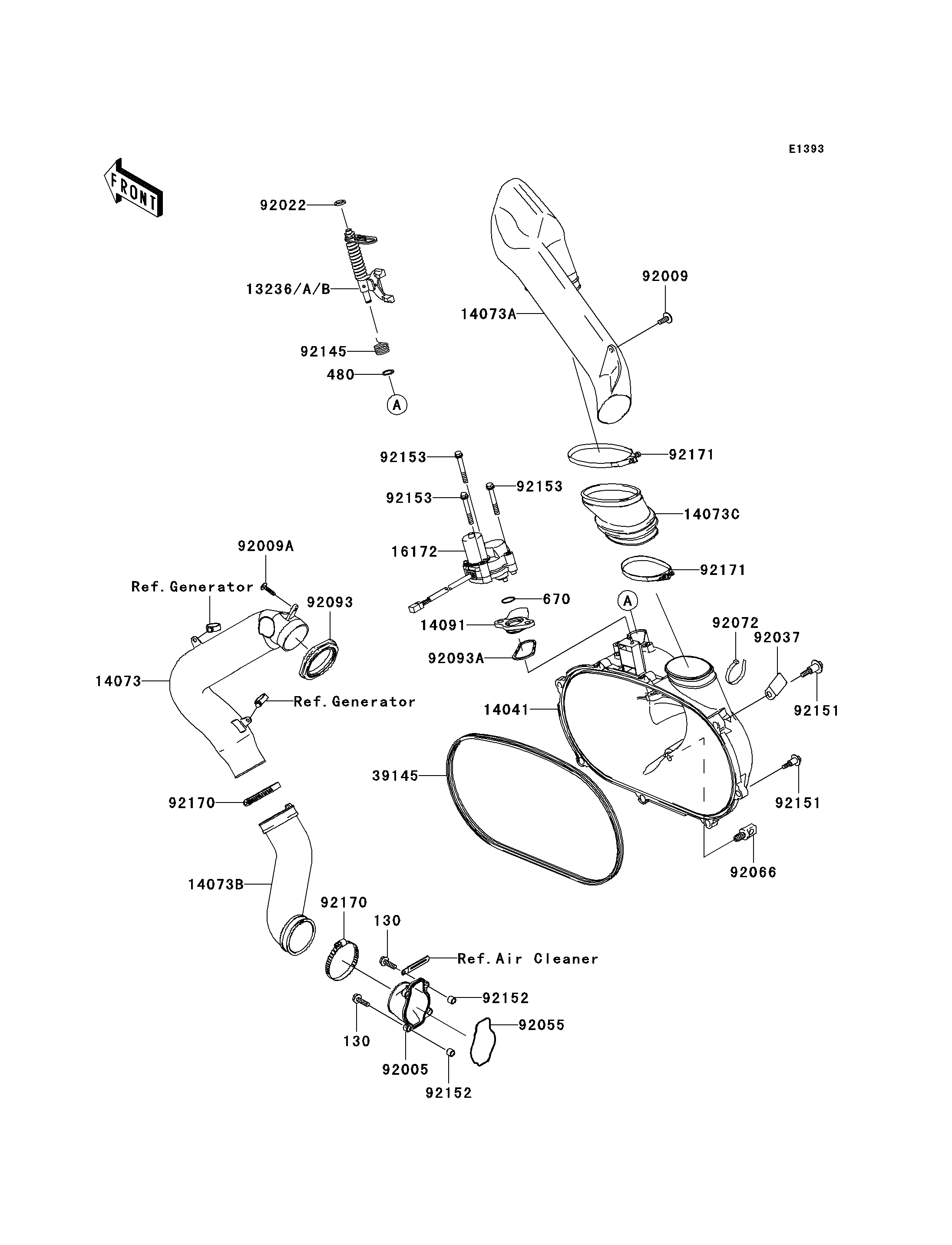

2007 Brute Force 750 4x4i - Converter Cover
130
130
480
670
13236
13236A
13236B
14041
14073
14073A
14073B
14073C
14091
16172
39145
92005
92009
92009A
92022
92037
92055
92066
92072
92093
92093A
92145
92151
92151
92152
92152
92153
92153
92153
92170
92170
92171
92171
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X20 | 130 | 130Z0620 | 4 | ||
CIRCLIP-TYPE-C,10MM | 480 | 480J1000 | 1 | ||
O RING | 670 | 670D3022 | 1 | ||
LEVER-COMP,YELLOW | 13236 | 13236-0046 | AR | ||
LEVER-COMP,GREEN | 13236A | 13236-0047 | AR | ||
LEVER-COMP,PAINT LESS | 13236B | 13236-0048 | 1 | ||
COVER-COMP | 14041 | 14041-0004 | 1 | ||
DUCT,INTAKE | 14073 | 14073-0025 | 1 | ||
DUCT,EXHAUST | 14073A | 14073-0026 | 1 | ||
DUCT,INTAKE JOINT | 14073B | 14073-0027 | 1 | ||
DUCT,EXHAUST JOINT | 14073C | 14073-0028 | 1 | ||
COVER | 14091 | 14091-1421 | 1 | ||
ACTUATOR | 16172 | 16172-0006 | 1 | ||
TRIM-SEAL | 39145 | 39145-1135 | 1 | ||
FITTING | 92005 | 92005-1387 | 1 | ||
SCREW,6X16 | 92009 | 92009-1694 | 1 | ||
SCREW,TAPPING,5X20 | 92009A | 92009-1993 | 1 | ||
WASHER,10.2X16X1 | 92022 | 92022-1829 | 1 | ||
CLAMP | 92037 | 92037-1780 | 1 | ||
RING-O | 92055 | 92055-1630 | 1 | ||
PLUG,DRAIN,11X19 | 92066 | 92066-1580 | 1 | ||
BAND,L=188 | 92072 | 92072-1239 | 1 | ||
SEAL | 92093 | 92093-0016 | 1 | ||
SEAL | 92093A | 92093-1548 | 1 | ||
SPRING | 92145 | 92145-1567 | 1 | ||
BOLT,FLANGED,6X30 | 92151 | 92151-1686 | 8 | ||
COLLAR | 92152 | 92152-1332 | 4 | ||
BOLT,6X47 | 92153 | 92153-0678 | 3 | ||
CLAMP | 92170 | 92170-1764 | 2 | ||
CLAMP | 92171 | 92171-0208 | 2 |
