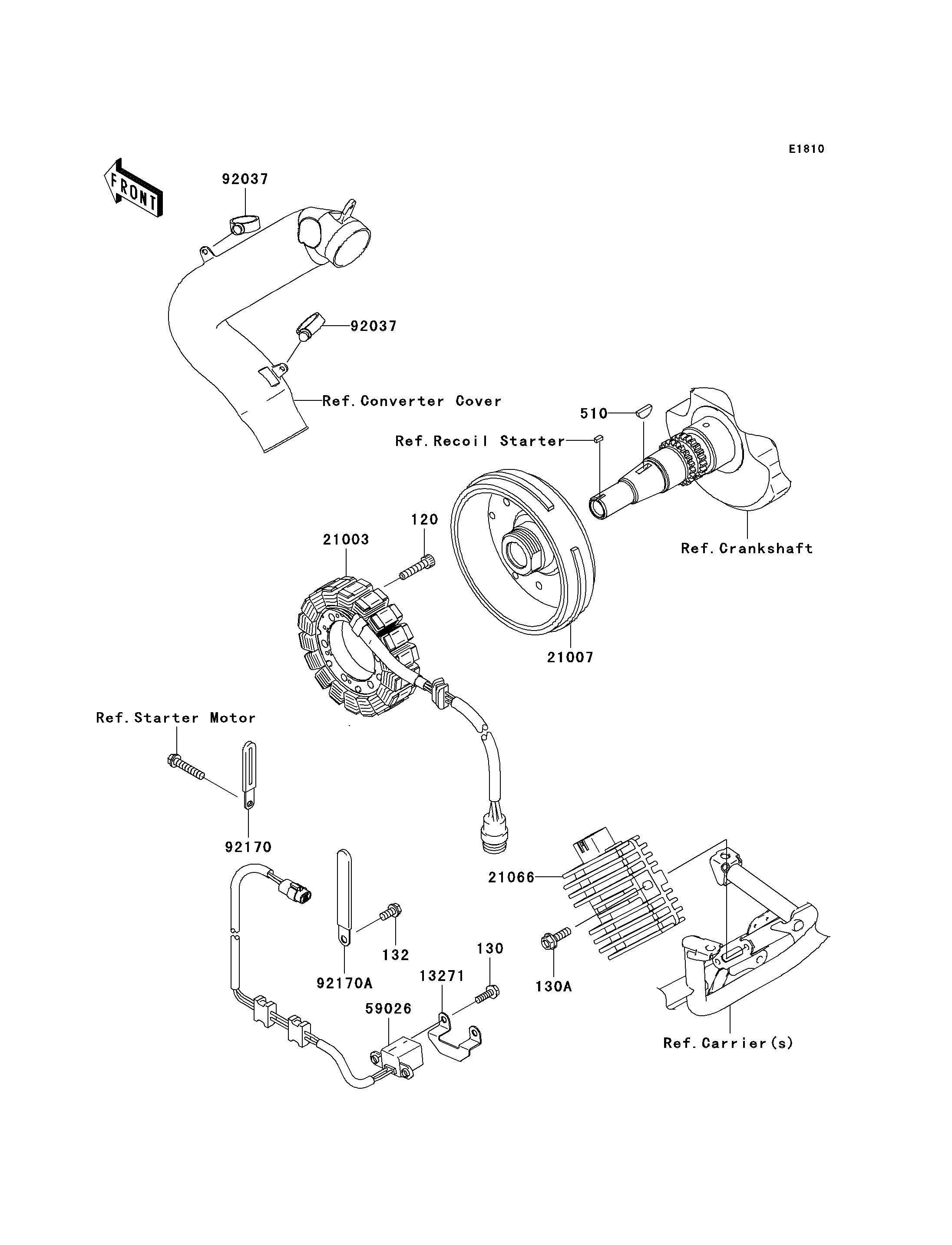

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X28 120 120P0628 3
BOLT-FLANGED,5X16 130 130G0516 2
BOLT-FLANGED,6X20 130A 130J0620 2
BOLT-FLANGED-SMALL,6X12 132 132Y0612 1
KEY-WOODRUFF 510 510A4200 1
PLATE 13271 13271-1369 1
STATOR 21003 21003-0012 1
ROTOR 21007 21007-0013 1
REGULATOR-VOLTAGE 21066 21066-1127 1
COIL-PULSING 59026 59026-0005 1
CLAMP,HOSE 92037 92037-1827 2
CLAMP 92170 92170-1514 1
CLAMP 92170A 92170-1925 1
