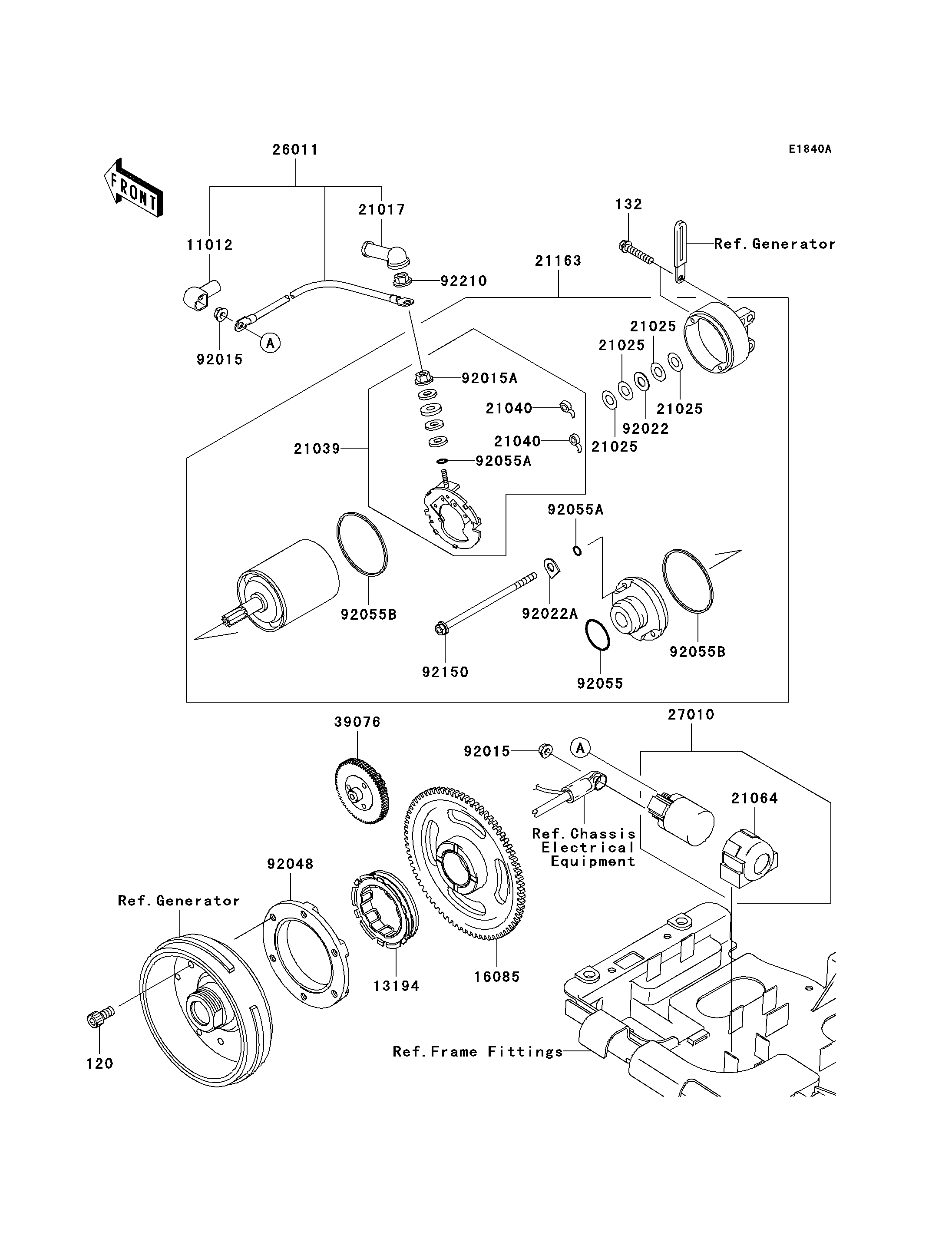

2007 Brute Force 750 4x4i - Starter Motor(A7F)
120
132
11012
13194
16085
21017
21025
21025
21025
21025
21039
21040
21040
21064
21163
26011
27010
39076
92015
92015
92015A
92022
92022A
92048
92055
92055A
92055A
92055B
92055B
92150
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET,8X16 | 120 | 120P0816 | 6 | ||
BOLT-FLANGED-SMALL,6X30 | 132 | 132Y0630 | 2 | ||
CAP,TERMINAL | 11012 | 11012-1354 | 1 | ||
CLUTCH-ONEWAY | 13194 | 13194-1094 | 1 | ||
GEAR,STARTER | 16085 | 16085-1238 | 1 | ||
GROMMET,STARTER TERMINAL | 21017 | 21017-017 | 1 | ||
WASHER,9.1X18X0.2 | 21025 | 21025-011 | 4 | ||
BRUSH,CARBON | 21039 | 21039-1063 | 1 | ||
SPRING-BRUSH | 21040 | 21040-1057 | 2 | ||
DAMPER,MAGNETIC SWITCH | 21064 | 21064-002 | 1 | ||
STARTER-ELECTRIC | 21163 | 21163-1320 | 1 | ||
WIRE-LEAD,STARTER CABLE | 26011 | 26011-0111 | 1 | ||
SWITCH,MAGNETIC | 27010 | 27010-1098 | 1 | ||
LIMITER,STARTER | 39076 | 39076-0005 | 1 | ||
NUT,FLANGED,6MM | 92015 | 92015-1193 | 2 | ||
NUT,STARTER MOTOR | 92015A | 92015-1476 | 1 | ||
WASHER,9.1X18X0.8 | 92022 | 92022-1132 | 1 | ||
WASHER,LOCK,T=2.0 | 92022A | 92022-1458 | 2 | ||
RACE,ONE WAY CLUTCH | 92048 | 92048-0002 | 1 | ||
RING-O | 92055 | 92055-1276 | 1 | ||
RING-O,4.5X2.0 | 92055A | 92055-1370 | 3 | ||
RING-O,STARTER MOTOR | 92055B | 92055-1381 | 2 | ||
BOLT | 92150 | 92150-1243 | 2 | ||
NUT,6MM | 92210 | 92210-0188 | 1 |
