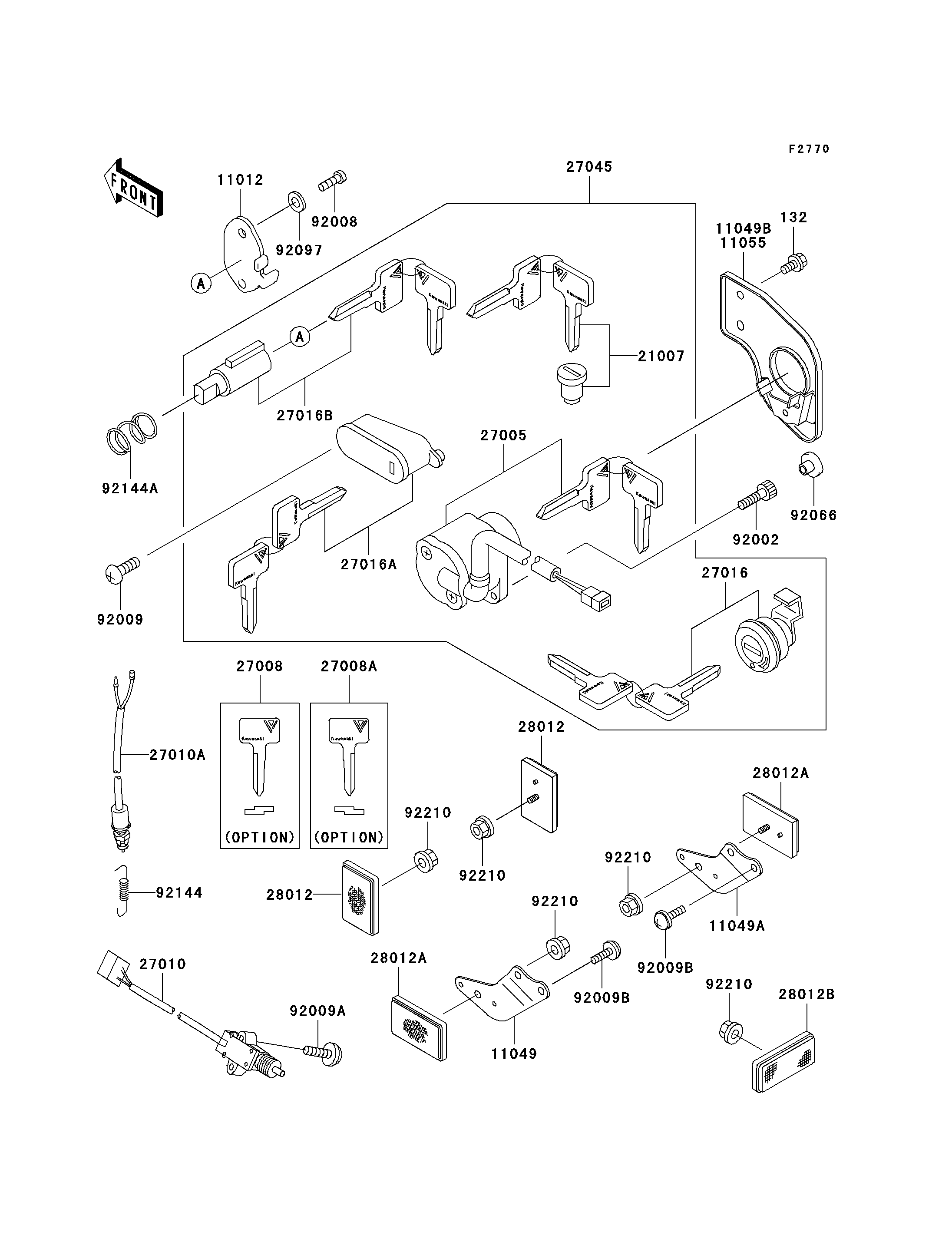

2009 Vulcan® 500 LTD - Ignition Switch/Locks/Reflectors
132
11012
11049
11049A
11055
21007
27005
27008
27008A
27010
27010A
27016
27016A
27016B
27045
28012
28012
28012A
28012A
28012B
92002
92008
92009
92009A
92009B
92009B
92066
92097
92144
92144A
92210
92210
92210
92210
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL,6X10 | 132 | 132BB0610 | 2 | ||
CAP,STEERING LOCK | 11012 | 11012-1586 | 1 | ||
BRACKET,REFLECTOR,LH | 11049 | 11049-1568 | 1 | ||
BRACKET,REFLECTOR,RH | 11049A | 11049-1569 | 1 | ||
BRACKET,IGNITION SWITCH | 11055 | 11055-0069 | 1 | ||
ROTOR,LOCK,TANK CAP | 21007 | 21007-5024 | 1 | ||
SWITCH-ASSY-IGNITION | 27005 | 27005-1204 | 1 | ||
KEY-LOCK,BLANK,#A | 27008 | 27008-1138 | 1 | (OPTION) | |
KEY-LOCK,BLANK,#B | 27008A | 27008-1139 | 1 | (OPTION) | |
SWITCH,SIDE STAND | 27010 | 27010-1223 | 1 | ||
SWITCH,REAR BRAKE | 27010A | 27010-1477 | 1 | ||
LOCK-ASSY,LID | 27016 | 27016-5225 | 1 | ||
LOCK-ASSY,HELMET | 27016A | 27016-5226 | 1 | ||
LOCK-ASSY,STEERING | 27016B | 27016-5299 | 1 | ||
SWITCH-ASSY | 27045 | 27045-5192 | 1 | ||
REFLECTOR-REFLEX,FR | 28012 | 28012-1009 | 2 | ||
REFLECTOR-REFLEX,RR | 28012A | 28012-1051 | 2 | ||
REFLECTOR-REFLEX | 28012B | 28012-1077 | 1 | ||
BOLT,SOCKET,5X18 | 92002 | 92002-1805 | 1 | ||
SCREW,3.51MM | 92008 | 92008-007 | 1 | ||
SCREW,5X14 | 92009 | 92009-1341 | 1 | ||
SCREW,5X20 | 92009A | 92009-1459 | 2 | ||
SCREW,5X10 | 92009B | 92009-1651 | 4 | ||
PLUG | 92066 | 92066-1435 | 1 | ||
WASHER,WAVE | 92097 | 92097-003 | 1 | ||
SPRING,REAR BRAKE SWITCH | 92144 | 92144-1141 | 1 | ||
SPRING,STEERING LOCK | 92144A | 92144-1222 | 1 | ||
NUT,FLANGED,5MM | 92210 | 92210-0007 | 5 |
