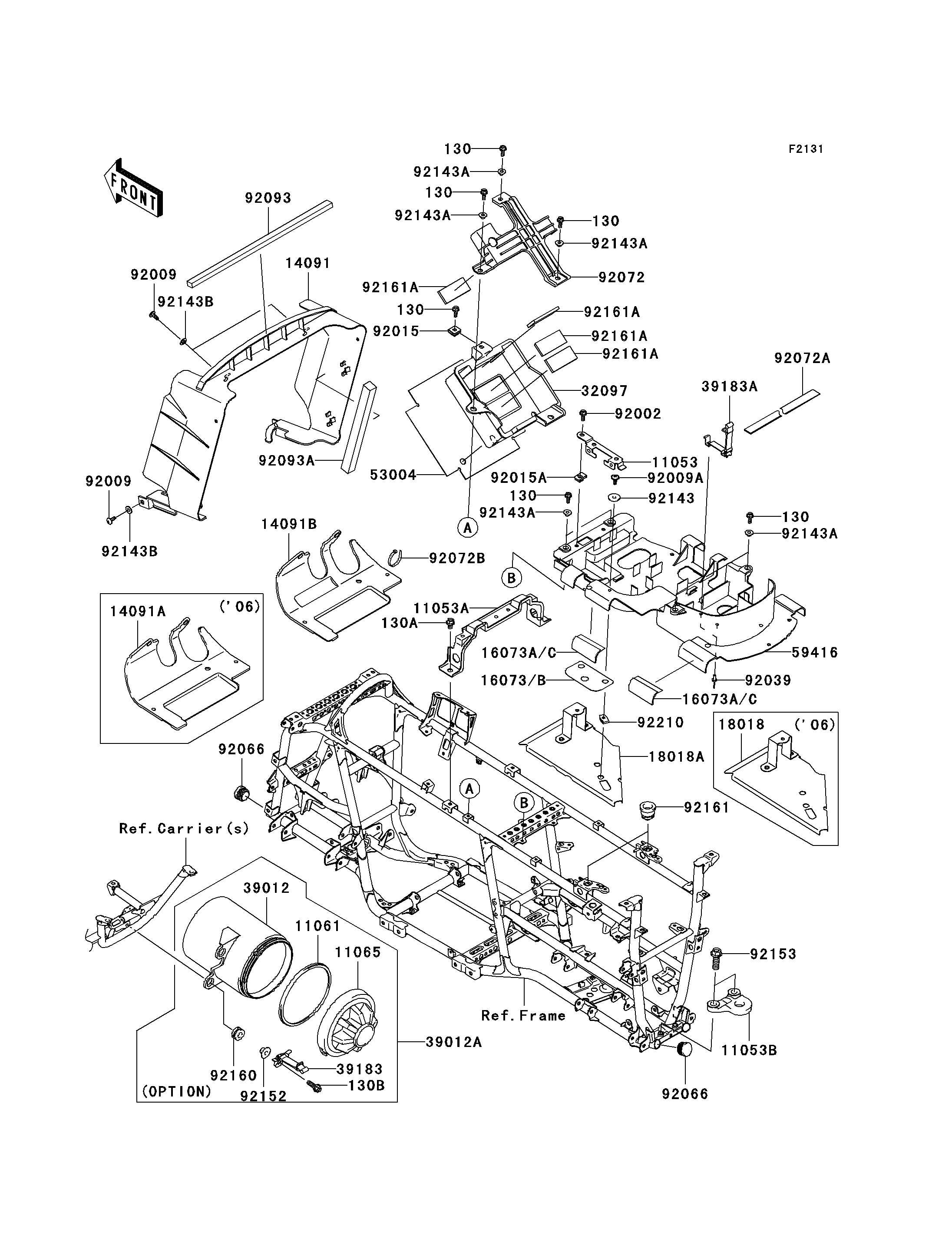

2007 Brute Force 750 4x4i - Frame Fittings
11053
11053
11053A
11053A
11053B
11053B
11061
11061
11065
11065
14091
14091
14091B
14091B
16073B
16073B
16073C
16073C
16073C
16073C
18018A
18018A
32097
32097
39012
39012
39012A
39012A
39183
39183
39183A
39183A
53004
53004
59416
59416
92002
92002
92009
92009
92009
92009
92009A
92009A
92015
92015
92015A
92015A
92039
92039
92066
92066
92066
92066
92072
92072
92072A
92072A
92072B
92072B
92093
92093
92093A
92093A
92143
92143
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92143B
92143B
92143B
92143B
130
130
130
130
130
130
130
130
130
130
130
130
130A
130A
130B
130B
92152
92152
92153
92153
92160
92160
92161
92161
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92210
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,FUSE ASSY | 11053 | 11053-0937 | 1 | ||
BRACKET,SEAT&BATTERY BAND | 11053A | 11053-0969 | 1 | ||
BRACKET,TRAILER HITCH | 11053B | 11053-1638 | 1 | ||
GASKET,TOOL CASE | 11061 | 11061-0072 | 1 | (OPTION) | |
CAP,TOOL CASE | 11065 | 11065-0088 | 1 | (OPTION) | |
COVER,RADIATOR | 14091 | 14091-0338 | 1 | ||
COVER,AIR CLEANER | 14091B | 14091-0540 | 1 | ||
INSULATOR,ELECTRIC CASE | 16073B | 16073-0035 | 1 | ||
INSULATOR,ELECTRIC CASE | 16073C | 16073-0036 | 2 | ||
PLATE-HEAT GUARD | 18018A | 18018-0009 | 1 | ||
CASE-BATTERY | 32097 | 32097-0009 | 1 | ||
CASE-STORAGE | 39012 | 39012-0005 | 1 | (OPTION) | |
CASE-STORAGE,ASSY | 39012A | 39012-5013 | 1 | (OPTION) | |
BAND-ASSY,TOOL BAG | 39183 | 39183-0003 | 1 | (OPTION) | |
BAND-ASSY,TOOL BAG | 39183A | 39183-1065 | 1 | ||
MAT,BATTERY CASE | 53004 | 53004-0002 | 1 | ||
CASE-ELECTRIC | 59416 | 59416-0004 | 1 | ||
BOLT,6X16 | 92002 | 92002-1571 | 1 | ||
SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 4 | ||
SCREW,6X16 | 92009A | 92009-1621 | 1 | ||
NUT,6MM | 92015 | 92015-1094 | 1 | ||
NUT,6MM | 92015A | 92015-1602 | 1 | ||
RIVET,4.8MM | 92039 | 92039-3719 | 2 | ||
PLUG | 92066 | 92066-0036 | 4 | ||
BAND,BATTERY | 92072 | 92072-0033 | 1 | ||
BAND,MAGIC TAPE | 92072A | 92072-0040 | 1 | ||
BAND,L=188 | 92072B | 92072-1239 | 4 | ||
SEAL,L=408 | 92093 | 92093-0024 | 1 | ||
SEAL,L=250 | 92093A | 92093-0028 | 2 | ||
COLLAR,L=6.5 | 92143 | 92143-1025 | 1 | ||
COLLAR | 92143A | 92143-1057 | 7 | ||
COLLAR | 92143B | 92143-1087 | 4 | ||
BOLT-FLANGED,6X16 | 130 | 130J0616 | 8 | ||
BOLT-FLANGED,8X12 | 130A | 130J0812 | 2 | ||
BOLT-FLANGED,8X25 | 130B | 130J0825 | 2 | (OPTION) | |
COLLAR | 92152 | 92152-0155 | 2 | (OPTION) | |
BOLT,FLANGED,12X35 | 92153 | 92153-0847 | 2 | ||
DAMPER | 92160 | 92160-1151 | 2 | (OPTION) | |
DAMPER | 92161 | 92161-0048 | 2 | ||
DAMPER | 92161A | 92161-1127 | 4 | ||
NUT | 92210 | 92210-1331 | 1 |
