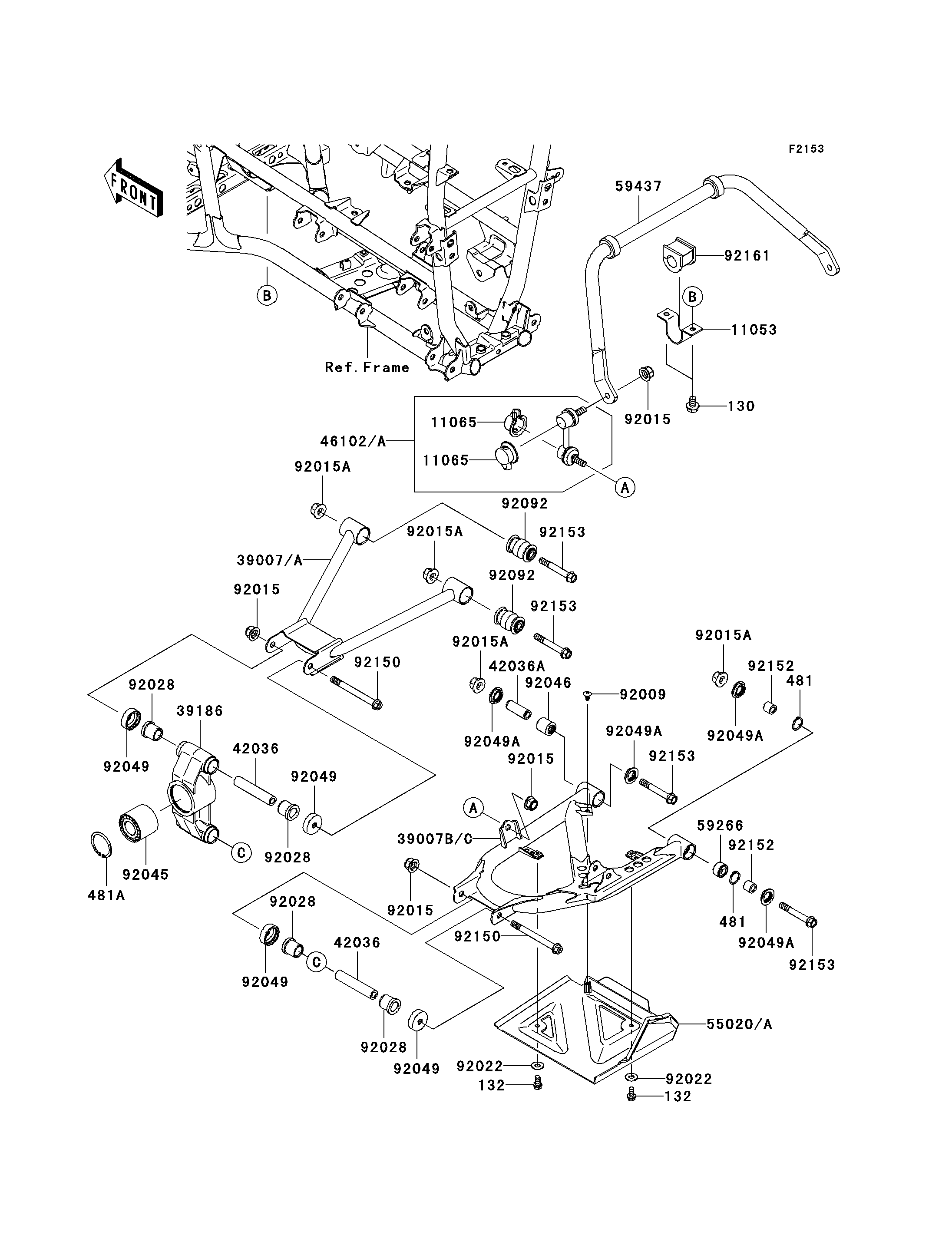

2007 Brute Force 750 4x4i - Rear Suspension
130
132
132
481
481
481A
11053
11065
11065
39007
39007A
39007B
39007C
39186
42036
42036
42036A
46102
46102A
55020
55020A
59266
59437
92009
92015
92015
92015
92015
92015A
92015A
92015A
92015A
92022
92022
92028
92028
92028
92028
92045
92046
92049
92049
92049
92049
92049A
92049A
92049A
92049A
92092
92092
92150
92150
92152
92152
92153
92153
92153
92153
92161
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,8X12 | 130 | 130J0812 | 4 | ||
BOLT-FLANGED-SMALL,6X12 | 132 | 132J0612 | 4 | ||
CIRCLIP | 481 | 481J2400 | 4 | ||
CIRCLIP | 481A | 481J5200 | 2 | ||
BRACKET,STABILIZER | 11053 | 11053-1833 | 2 | ||
CAP | 11065 | 11065-0086 | 4 | ||
ARM-SUSP,RR,UPP,LH | 39007 | 39007-0021 | 1 | ||
ARM-SUSP,RR,UPP,RH | 39007A | 39007-0022 | 1 | ||
ARM-SUSP,RR,LWR,LH | 39007B | 39007-0038 | 1 | ||
ARM-SUSP,RR,LWR,RH | 39007C | 39007-0039 | 1 | ||
KNUCKLE,RR | 39186 | 39186-0030 | 2 | ||
SLEEVE,10X17X85.6 | 42036 | 42036-1190 | 4 | ||
SLEEVE | 42036A | 42036-1376 | 2 | ||
ROD,STABILIZER,LH | 46102 | 46102-0055 | 1 | ||
ROD,STABILIZER,RH | 46102A | 46102-0056 | 1 | ||
GUARD,REAR ARM,LH,F.BLACK | 55020 | 55020-0166-6Z | 1 | ||
GUARD,REAR ARM,RH,F.BLACK | 55020A | 55020-0167-6Z | 1 | ||
JOINT-BALL | 59266 | 59266-0013 | 2 | ||
STABILIZER | 59437 | 59437-0001 | 1 | ||
SCREW,6X12 | 92009 | 92009-1480 | 2 | ||
NUT,FLANGED,10MM | 92015 | 92015-1335 | 8 | ||
NUT,FLANGED,10MM | 92015A | 92015-1415 | 8 | ||
WASHER,7X16X1.2 | 92022 | 92022-024 | 4 | ||
BUSHING | 92028 | 92028-1466 | 8 | ||
BEARING-BALL,25BWD02A | 92045 | 92045-0021 | 2 | ||
BEARING-NEEDLE | 92046 | 92046-1046 | 2 | ||
SEAL-OIL,KNUCKLE | 92049 | 92049-1198 | 8 | ||
SEAL-OIL,MHA17245.7F | 92049A | 92049-1223 | 8 | ||
BUSHING-RUBBER | 92092 | 92092-0004 | 4 | ||
BOLT,FLANGED,10X105 | 92150 | 92150-1624 | 4 | ||
COLLAR,10X17X14.5 | 92152 | 92152-1455 | 4 | ||
BOLT,FLANGED,10X70 | 92153 | 92153-0666 | 8 | ||
DAMPER | 92161 | 92161-0265 | 2 |
