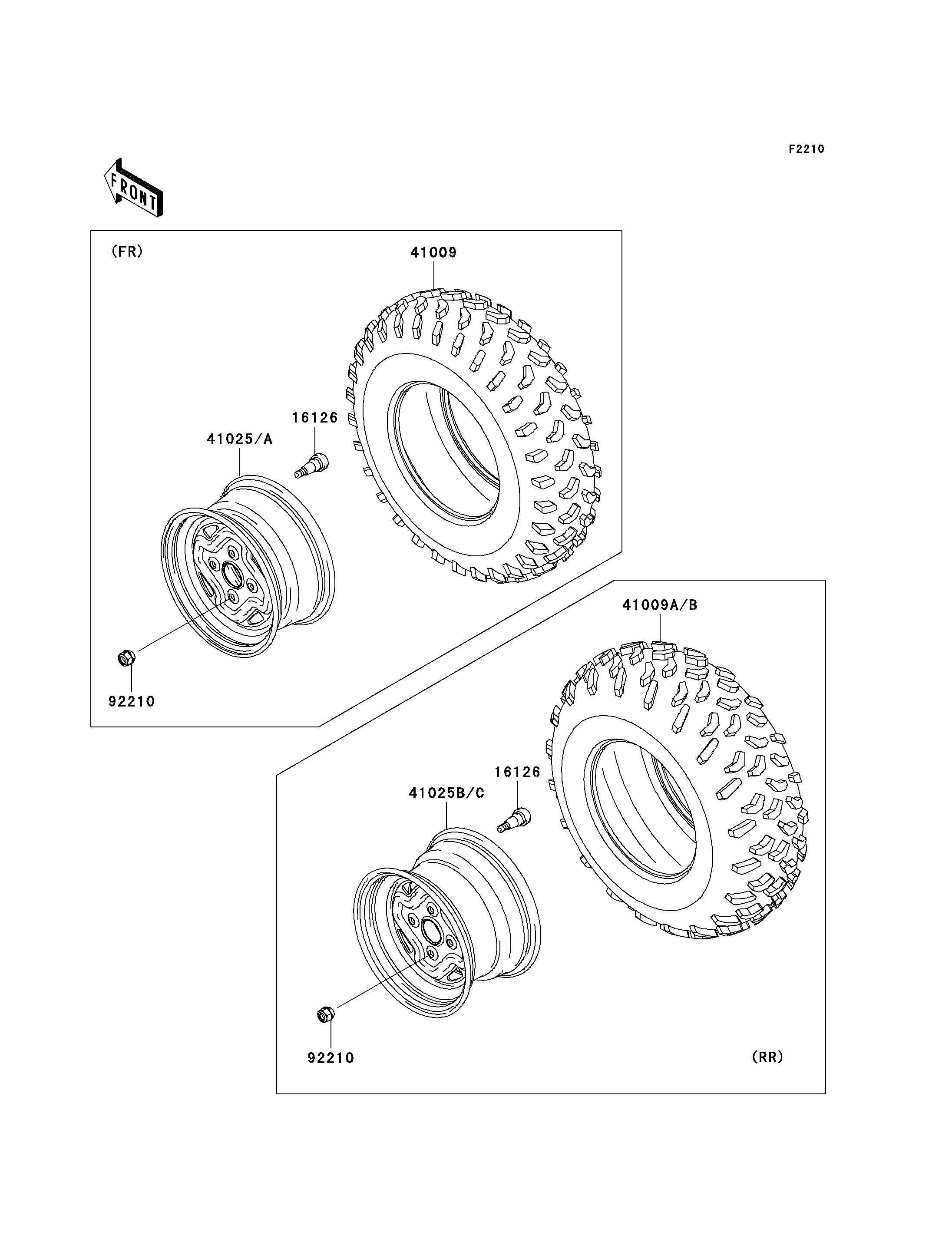

16126
16126
41009
41009B
41025A
41025C
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE 16126 16126-4001 4
TIRE,FR,AT25X8-12,KT191(D) 41009 41009-0039 2
TIRE,RR,AT25X10-12,KT195(D) 41009B 41009-0112 2
RIM,FR,12X6.0AT,F.S.BLACK 41025A 41025-0043-397 2
RIM,RR,12X7.5AT,F.S.BLACK 41025C 41025-0044-397 2
NUT,LOCK,10MM 92210 92210-0203 16
