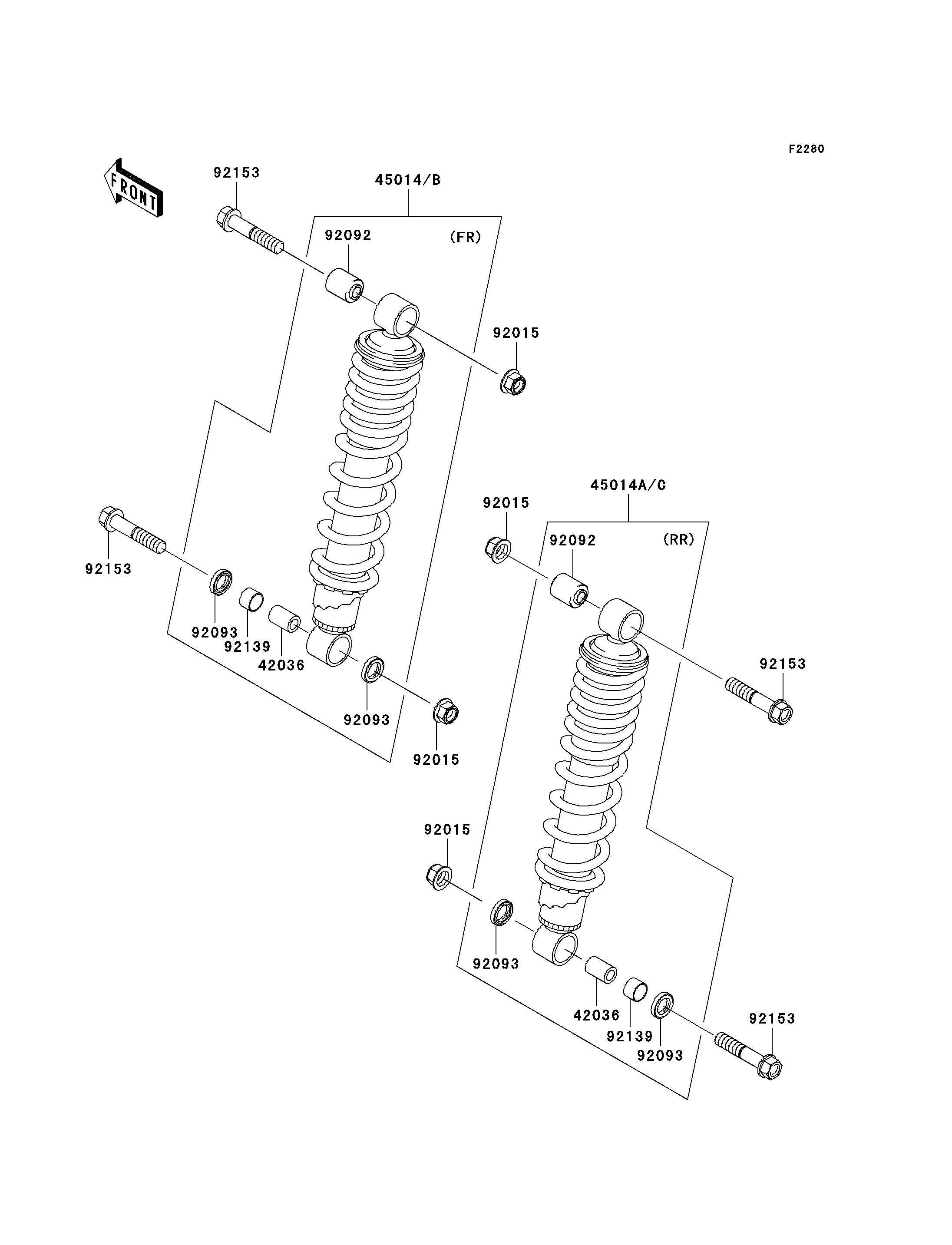

2007 Brute Force 750 4x4i - Shock Absorber(s)
42036
42036
45014B
45014C
92015
92015
92015
92015
92092
92092
92093
92093
92093
92093
92139
92139
92153
92153
92153
92153
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SLEEVE | 42036 | 42036-0018 | 4 | ||
| SHOCKABSORBER,FR | 45014B | 45014-0138 | 2 | ||
| SHOCKABSORBER,RR | 45014C | 45014-0139 | 2 | ||
| NUT,FLANGED,10MM | 92015 | 92015-1335 | 8 | ||
| BUSHING-RUBBER | 92092 | 92092-0007 | 4 | ||
| SEAL | 92093 | 92093-0033 | 8 | ||
| BUSHING | 92139 | 92139-0084 | 4 | ||
| BOLT,FLANGED,10X50 | 92153 | 92153-1139 | 8 |
| SLEEVE | |
| REF # | 42036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SHOCKABSORBER,FR | |
| REF # | 45014B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SHOCKABSORBER,RR | |
| REF # | 45014C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,10MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BUSHING-RUBBER | |
| REF # | 92092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SEAL | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BUSHING | |
| REF # | 92139 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X50 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
