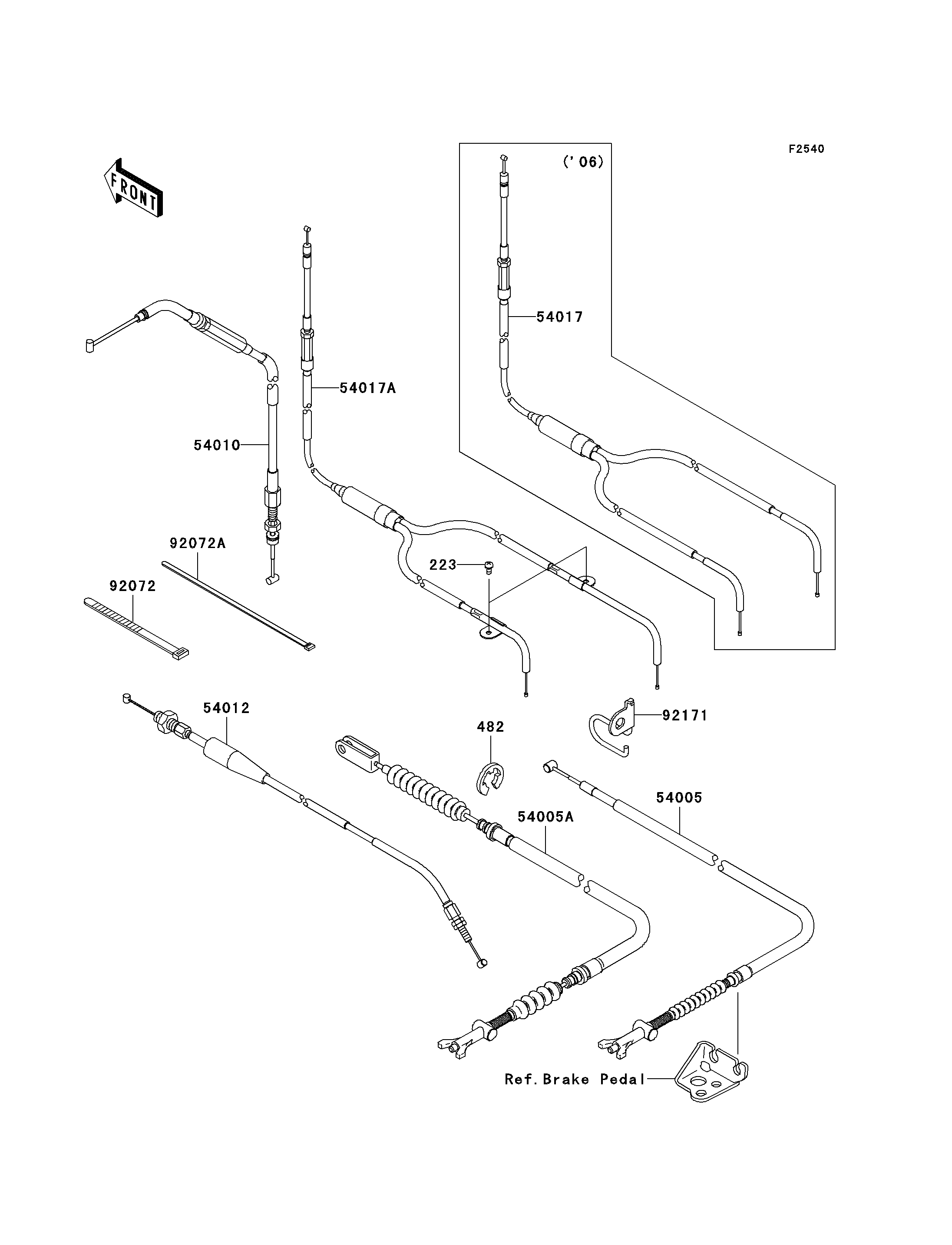

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-WS-CROS,4X8 223 223D0408 2
CIRCLIP-TYPE-E,8MM 482 482L8000 1
CABLE-BRAKE,PARKING 54005 54005-0005 1
CABLE-BRAKE,FOOT 54005A 54005-0009 1
CABLE,FRONT DIFF LOCK 54010 54010-0009 1
CABLE-THROTTLE 54012 54012-0108 1
CABLE-STARTER 54017A 54017-0028 1
BAND,L=123 92072 92072-030 1
BAND,L=188 92072A 92072-1239 3
CLAMP,BRAKE CABLE 92171 92171-0228 1
